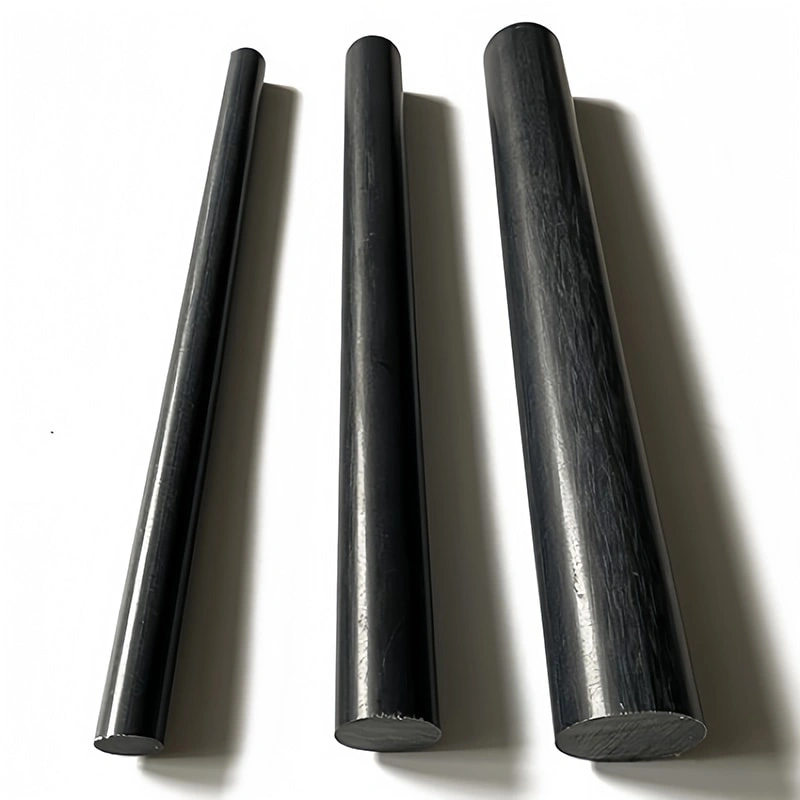

Graphite-filled phenolic Rods combines a phenolic resin binder with a cotton canvas subsurface. During manufacturing, we introduce graphite to the material to deliver the extra lubrication. It is a material with superior mechanical strength, electrical insulation, and thermal conductivity. The graphite reinforcement enhances heat resistance and wear performance, making these rods ideal for industrial and electrical applications that require durability, thermal stability, and reliable electrical insulation. They are particularly suitable for high-temperature, high-load, and high-voltage environments.
YILONG
Materials: Phenolic Resin + Cotton Canvas + Graphite
1.8~2.0 g/cm³
Black
6mm-200mm
1000mm
Pallet, Wooden Box
Nonabrasive performance in high-wear environments
Less noisy machining and operation than metal materials
High strength-to-weight ratio
Conductivity for applications where electrical conduction is required
Good toughness and mechanical properties
High moisture, absorption, temperature, and wear resistance
Increased impact strength
Chemically inert
Excellent flame resistance
Lightweight material for additional flexural strength
● Storm protection equipment
● Electrical circuit fabrication
● Electronic sensors
● Firearms protection equipment
● Piston rings, spacers, and gears
● Fuel cells

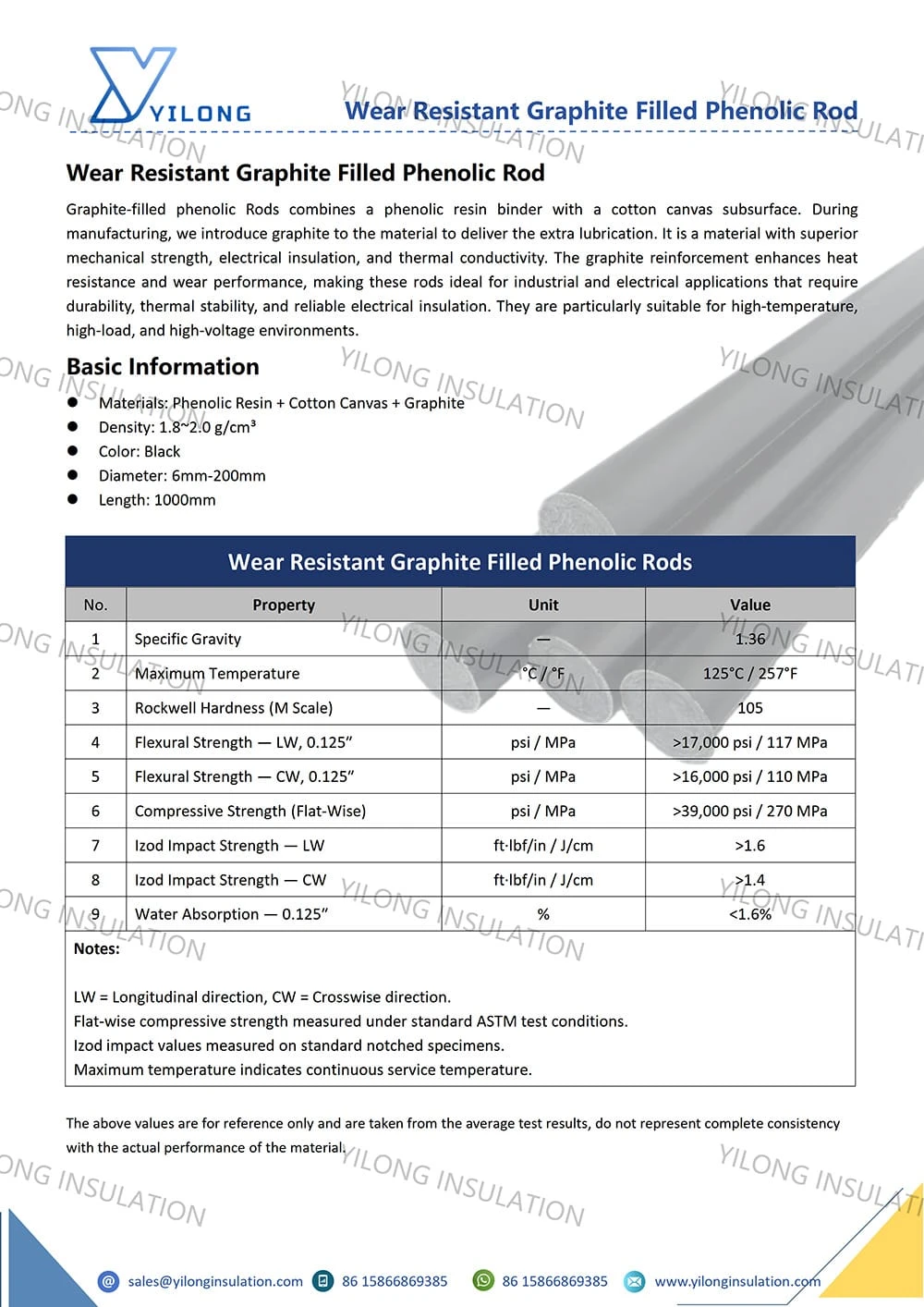

| Wear Resistant Graphite Filled Phenolic Rods | |||
| No. | Property | Unit | Value |
| 1 | Specific Gravity | — | 1.36 |
| 2 | Maximum Temperature | °C / °F | 125°C / 257°F |
| 3 | Rockwell Hardness (M Scale) | — | 105 |
| 4 | Flexural Strength — LW, 0.125″ | psi / MPa | >17,000 psi / 117 MPa |
| 5 | Flexural Strength — CW, 0.125″ | psi / MPa | >16,000 psi / 110 MPa |
| 6 | Compressive Strength (Flat-Wise) | psi / MPa | >39,000 psi / 270 MPa |
| 7 | Izod Impact Strength — LW | ft·lbf/in / J/cm | >1.6 |
| 8 | Izod Impact Strength — CW | ft·lbf/in / J/cm | >1.4 |
| 9 | Water Absorption — 0.125″ | % | <1.6% |
| Notes: LW = Longitudinal direction, CW = Crosswise direction. Flat-wise compressive strength measured under standard ASTM test conditions. Izod impact values measured on standard notched specimens. Maximum temperature indicates continuous service temperature. | |||
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
