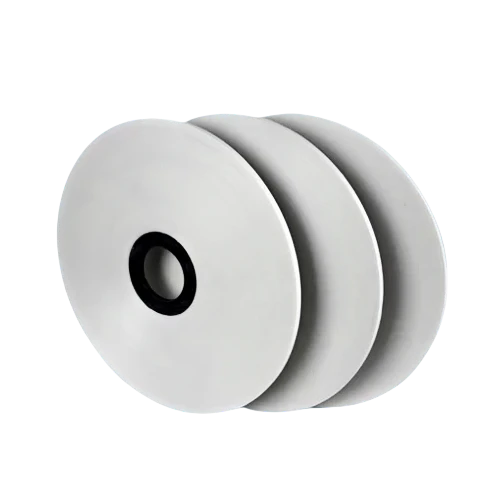

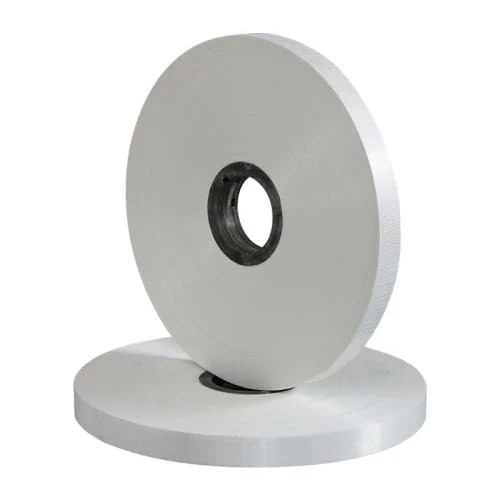

Calcined mica tape for fire-resistant cables is crafted using premium calcined mica paper as its base material, reinforced on one side with alkali-free glass fiber cloth. It is bonded with silicone resin and undergoes high-temperature baking, drying, and precise slitting to form the final product. Primarily used between the core and sheath of fire-resistant cables, this tape provides reliable fire-resistant insulation.
Calcined mica tape usually used as insulation material at flame temperatures of 850℃ to 950℃.
Synthetic mica tape usually used as insulation material at flame temperatures of 950℃ to 1000℃.
Phlogopite mica tape usually used as insulation material at flame temperatures of 750℃ to 850℃.
0.10mm-0.16mm
4.5mm-1000mm
500m, 1000m, 2000m;
52mm, 54mm, 76mm, 120mm.
Excellent insulating property.
Resist high temperature 1000℃.
Resist high voltage
Flexible, high-tensile for high-speed cable manufacturing.
Eco-friendly, free of toxic gases in a fire
Fire-resistant for high-quality cable.
● Especially suitable for ultra-small cross-section wire & cable and high temperature fire-resistant wire&cable.
● High-rise buildings
● Underground railways
● Large power stations
● Important industrial and mining enterprises
● Other places related to fire safety and fire rescues

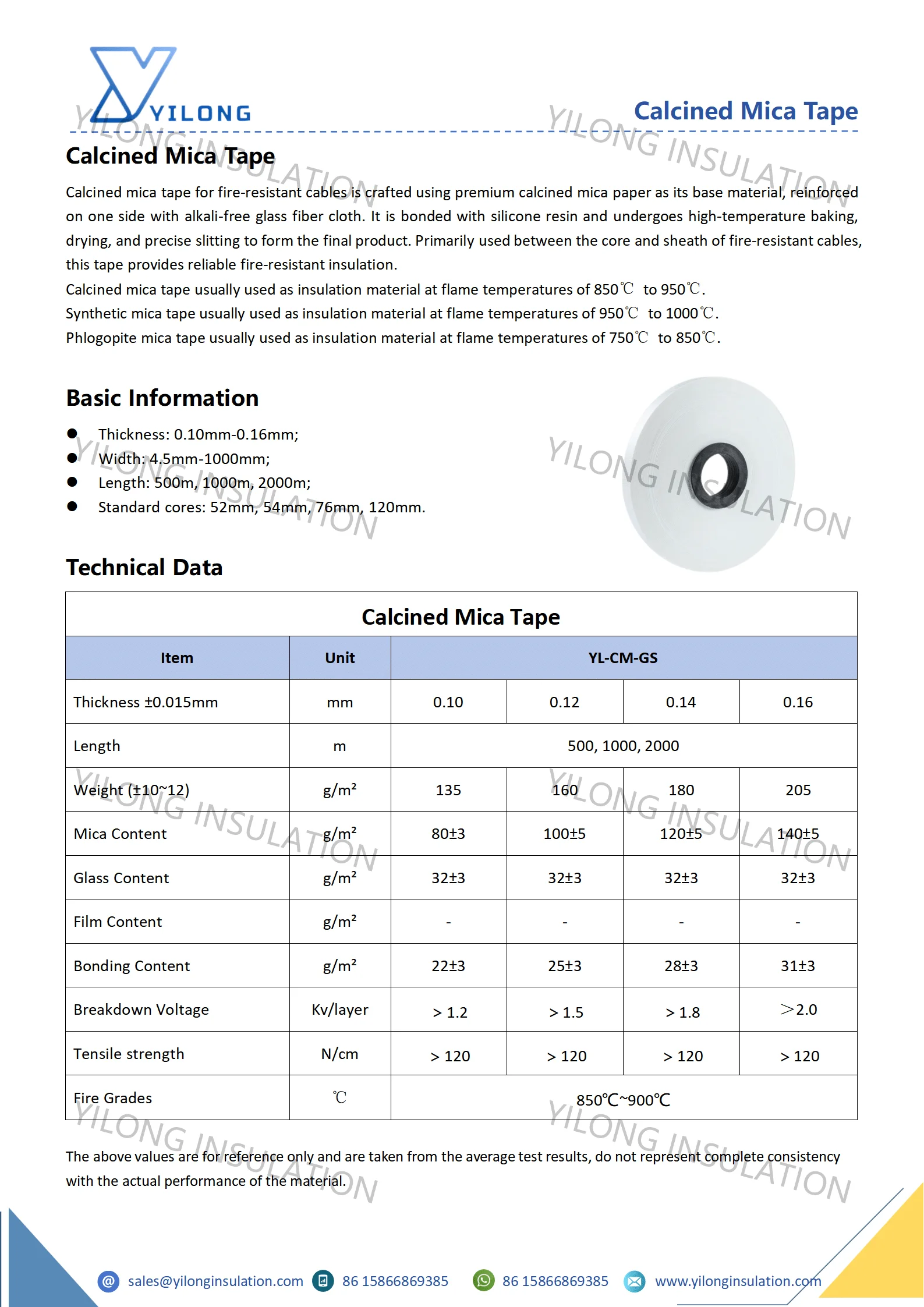

| Calcined Mica Tape | |||||
|---|---|---|---|---|---|
| Item | Unit | YL-CM-GS | |||
| Thickness ±0.015mm | mm | 0.10 | 0.12 | 0.14 | 0.16 |
| Length | m | 500, 1000, 2000 | |||
| Weight (±10~15) | g/m² | 135 | 160 | 180 | 205 |
| Mica Content | g/m² | 80±3 | 100±3 | 120±5 | 140±5 |
| Glss Content | g/m² | 32±3 | 32±3 | 32±3 | 32±3 |
| Film Content | g/m² | - | - | - | - |
| Bonding Content | g/m² | 22±3 | 25±3 | 28±3 | 31±3 |
| Breakdown Voltage | Kv/layer | ＞1.2 | ＞1.5 | ＞1.8 | ＞2.0 |
| Tensile strength | N/cm | ＞120 | ＞120 | ＞120 | ＞120 |
| Fire Grades | ℃ | 850℃~900℃ | |||
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
