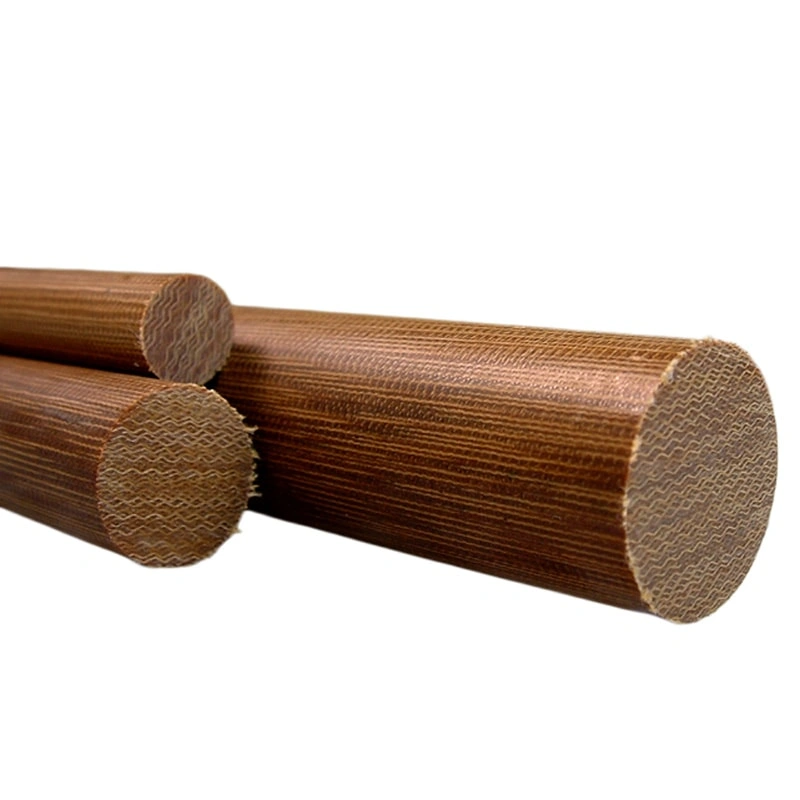

Paper phenolic rods are high-performance laminates based on a cellulose paper substrate impregnated with phenolic resin. These rods exhibit excellent mechanical strength, high dielectric properties, and superior moisture resistance, making them suitable for demanding industrial and electrical applications. Grade XXX – Standard grade, widely recommended for general mechanical use, applications involving radio frequencies, and environments with high humidity. Grades XX and X – Available upon special request, suitable for applications requiring specific mechanical or electrical properties. These rods are ideal for insulating components, mechanical supports, and structural parts where stability, durability, and electrical insulation are critical.
YILONG
Phenolic Resin + Kraft Paper
1.3~1.4 g/cm³
Brown
6mm-200mm
1000mm
Pallet, Wooden Box
High mechanical strength and impact resistance
Excellent wear and abrasion resistance
Outstanding electrical insulation for high-voltage applications
Superior heat, moisture, and corrosion resistance
Low moisture absorption for dimensional stability
Highly machinable for precise fabrication and customization
● Electrical components in high-voltage systems
● Insulating rods, spacers, and bushings
● Structural supports in industrial machinery
● Components for high-temperature or corrosive environments
● Custom machined parts requiring strength, precision, and electrical insulation

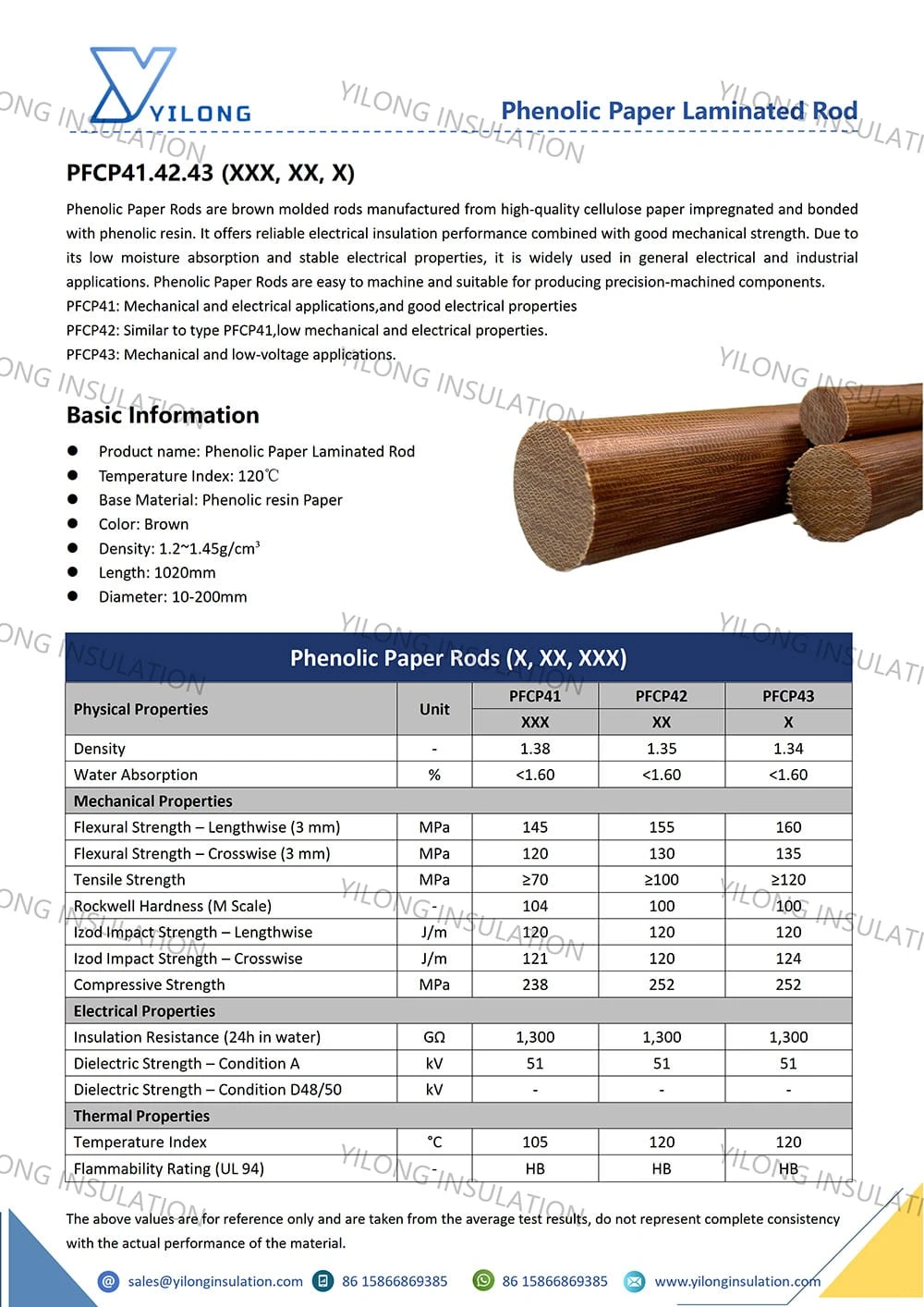

| Phenolic Paper Rods (X, XX, XXX) | ||||
| Physical Properties | Unit | PFCP41 | PFCP42 | PFCP43 |
| XXX | XX | X | ||
| Density | - | 1.38 | 1.35 | 1.34 |
| Water Absorption | % | <1.60 | <1.60 | <1.60 |
| Mechanical Properties | ||||
| Flexural Strength – Lengthwise (3 mm) | MPa | 145 | 155 | 160 |
| Flexural Strength – Crosswise (3 mm) | MPa | 120 | 130 | 135 |
| Tensile Strength | MPa | ≥70 | ≥100 | ≥120 |
| Rockwell Hardness (M Scale) | - | 104 | 100 | 100 |
| Izod Impact Strength – Lengthwise | J/m | 120 | 120 | 120 |
| Izod Impact Strength – Crosswise | J/m | 121 | 120 | 124 |
| Compressive Strength | MPa | 238 | 252 | 252 |
| Electrical Properties | ||||
| Insulation Resistance (24h in water) | GΩ | 1,300 | 1,300 | 1,300 |
| Dielectric Strength – Condition A | kV | 51 | 51 | 51 |
| Dielectric Strength – Condition D48/50 | kV | - | - | - |
| Thermal Properties | ||||
| Temperature Index | °C | 105 | 120 | 120 |
| Flammability Rating (UL 94) | - | HB | HB | HB |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
Manufacturer and Exporter
