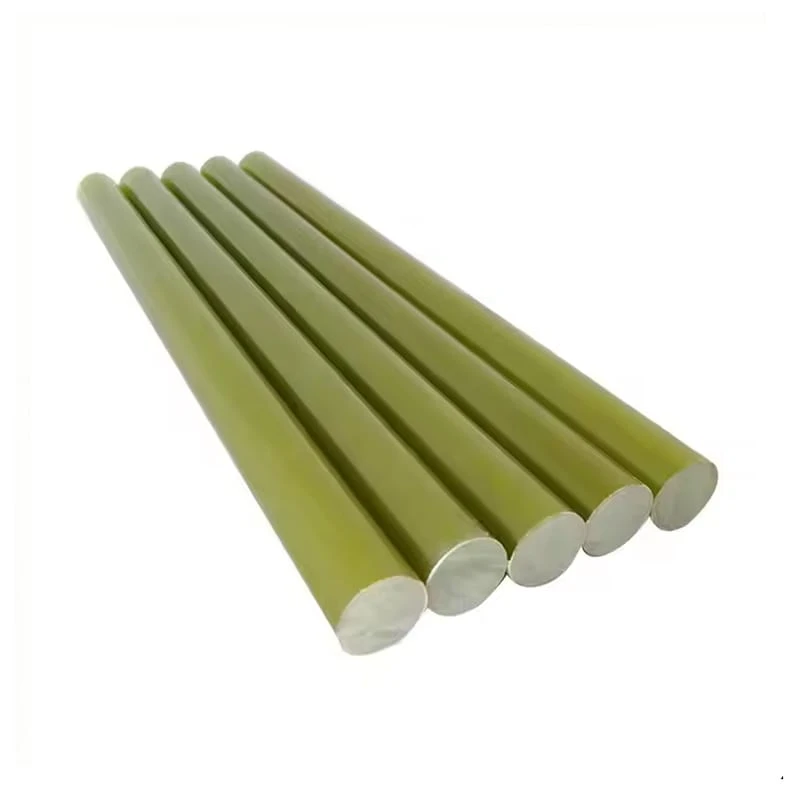

The Epoxy Glass Cloth Laminated rod is produced from glass fiber cloth and a polymer adhesive substance such as epoxy resin. Glass fiber epoxy laminated rods are produced from the glass fiber and is also called Glass fiber laminates.
Epoxy Glass Fabric Laminated Rod is an insulating structural material used for the production of slide bearings, gears, and other components. Being a good isolator, it is also used in the production of electrical appliances and components.

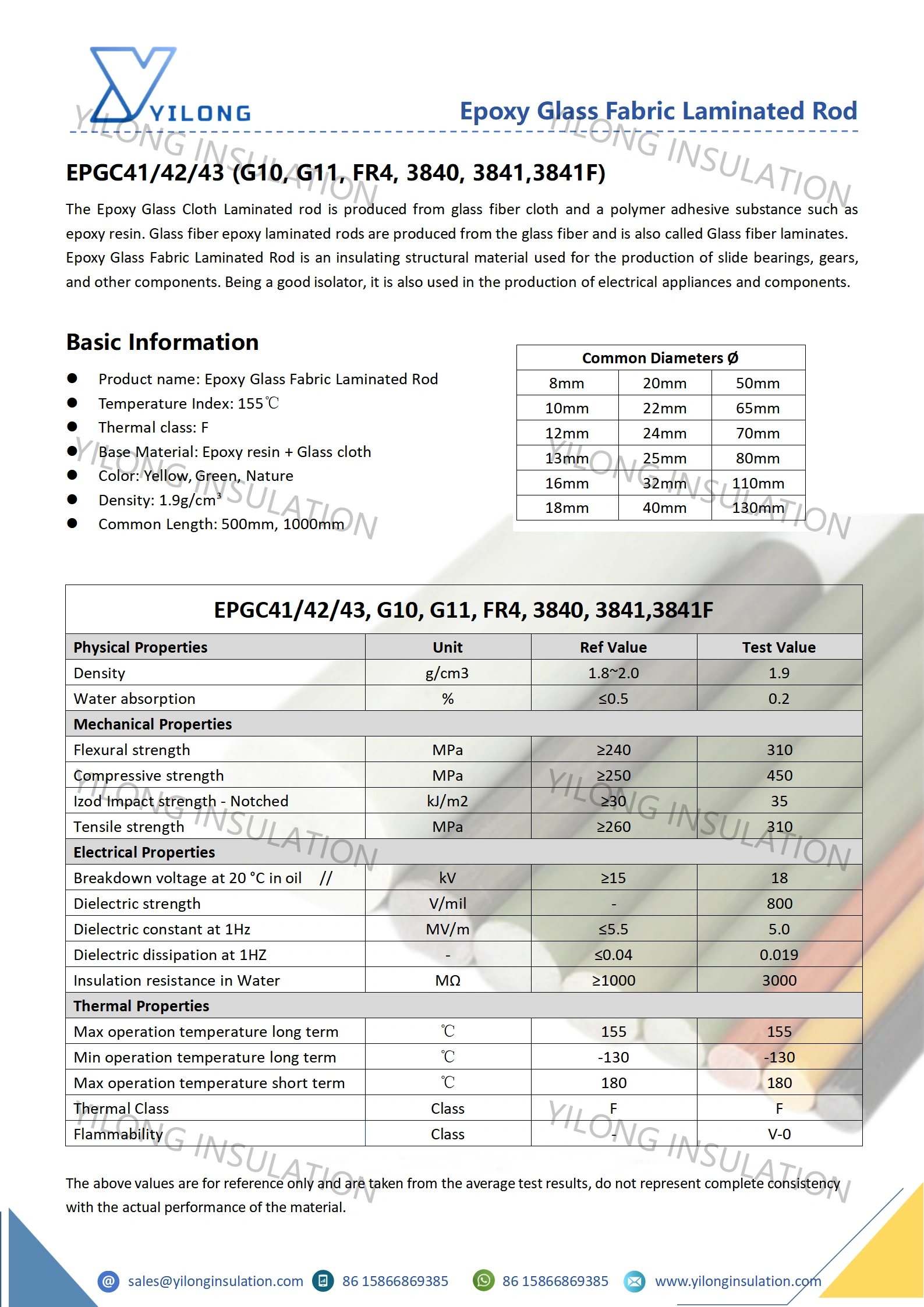

Epoxy Glass Fabric Laminated Rod
155℃
F
Epoxy resin + Glass cloth
Yellow, Green, Nature
1.9g/cm³
500mm, 1000mm
| Common Diameters Ø | ||
|---|---|---|
| 8mm | 20mm | 50mm |
| 10mm | 22mm | 65mm |
| 12mm | 24mm | 70mm |
| 13mm | 25mm | 80mm |
| 16mm | 32mm | 110mm |
| 18mm | 40mm | 130mm |
Excellent flame retardancy (UL 94 V-0)
Excellent voltage resistance
Excellent water absorption performance
Excellent thermal shock resistance
Excellent mechanical processing performance
High automatic processing rate
● High and low voltage transformer accessories
● Electronic and electrical insulation parts
● Water conservancy and hydroelectric insulation parts
● Switch cabinet insulation parts
● Inverter insulation parts
● Industrial electric furnace insulation parts
● Semiconductor insulation parts
● Electrified railway insulation parts
● Ship building insulation parts
● Nuclear power insulation part
● Bus duct insulating spacer gasket

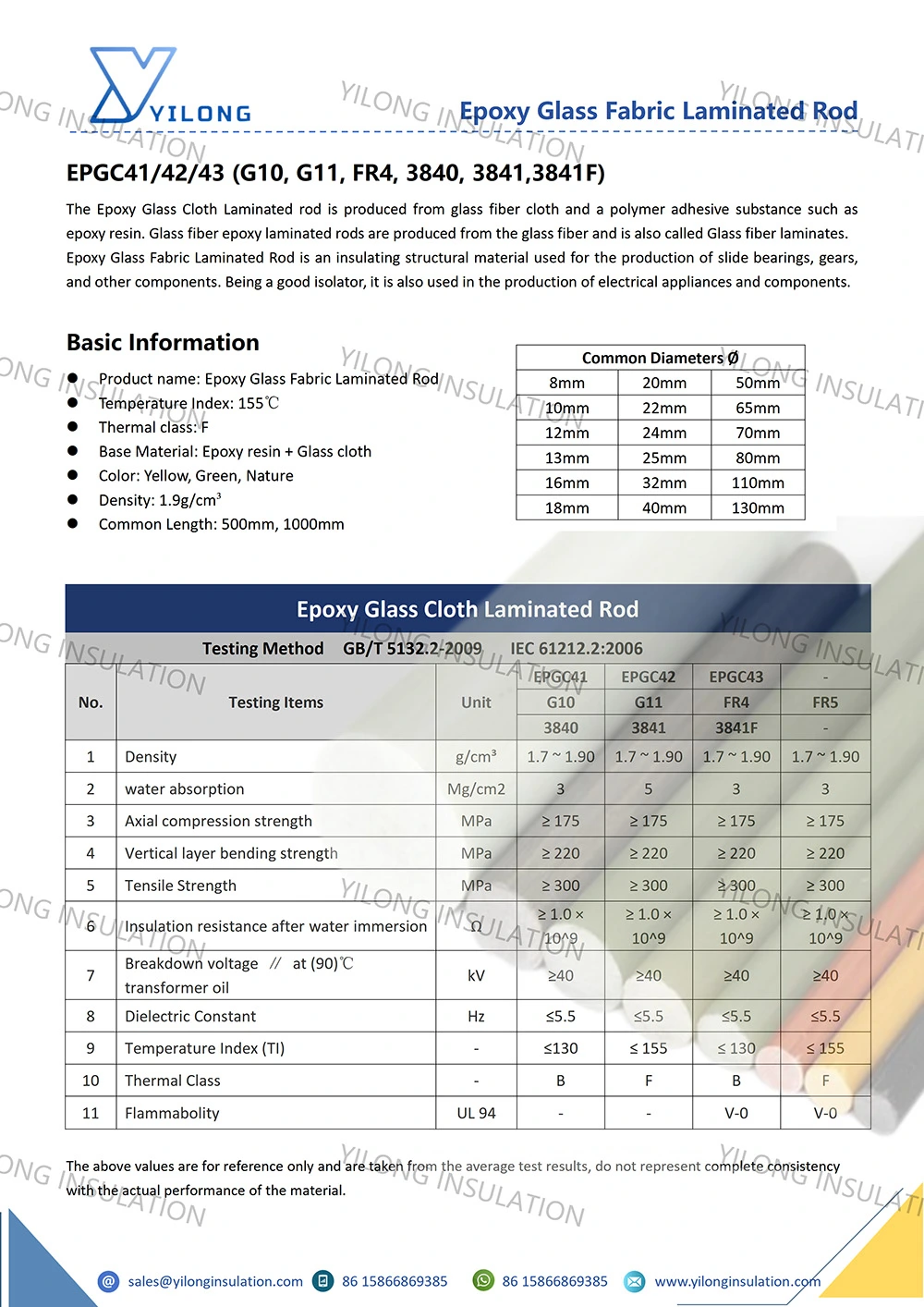

| Epoxy Glass Cloth Laminated Rod | ||||||
| Testing Method GB/T 5132.2-2009 IEC 61212.2:2006 | ||||||
| No. | Testing Items | Unit | EPGC41 | EPGC42 | EPGC43 | - |
| G10 | G11 | FR4 | FR5 | |||
| 3840 | 3841 | 3841F | - | |||
| 1 | Density | g/cm³ | 1.7 ~ 1.90 | 1.7 ~ 1.90 | 1.7 ~ 1.90 | 1.7 ~ 1.90 |
| 2 | water absorption | Mg/cm2 | 3 | 5 | 3 | 3 |
| 3 | Axial compression strength | MPa | ≥ 175 | ≥ 175 | ≥ 175 | ≥ 175 |
| 4 | Vertical layer bending strength | MPa | ≥ 220 | ≥ 220 | ≥ 220 | ≥ 220 |
| 5 | Tensile Strength | MPa | ≥ 300 | ≥ 300 | ≥ 300 | ≥ 300 |
| 6 | Insulation resistance after water immersion | Ω | ≥ 1.0 × 10^9 | ≥ 1.0 × 10^9 | ≥ 1.0 × 10^9 | ≥ 1.0 × 10^9 |
| 7 | Breakdown voltage ∥ at (90)℃transformer oil | kV | ≥40 | ≥40 | ≥40 | ≥40 |
| 8 | Dielectric Constant | Hz | ≤5.5 | ≤5.5 | ≤5.5 | ≤5.5 |
| 9 | Temperature Index (TI) | - | ≤130 | ≤ 155 | ≤ 130 | ≤ 155 |
| 10 | Thermal Class | - | B | F | B | F |
| 11 | Flammabolity | UL 94 | - | - | V-0 | V-0 |
| Note 1: The "vertical layer bending strength" of EPGC42 type is the bending strength measured at 150 ℃ ± 3 ℃ after 1h of treatment at 150 ℃ ± 3 ℃, which shall not be less than 50% of the specified value. | ||||||
| Note 2: One of the requirements for 20s step-by-step boost test and 1min withstand voltage test for parallel layer to breakdown voltage in 90 ℃ transformer oil can be selected. | ||||||
| Note 3: The flammability test is mainly used to monitor the uniformity of laminate production, and the results so measured should not be regarded as a comprehensive indication of the potential fire hazard of these laminates under actual application conditions. | ||||||
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
