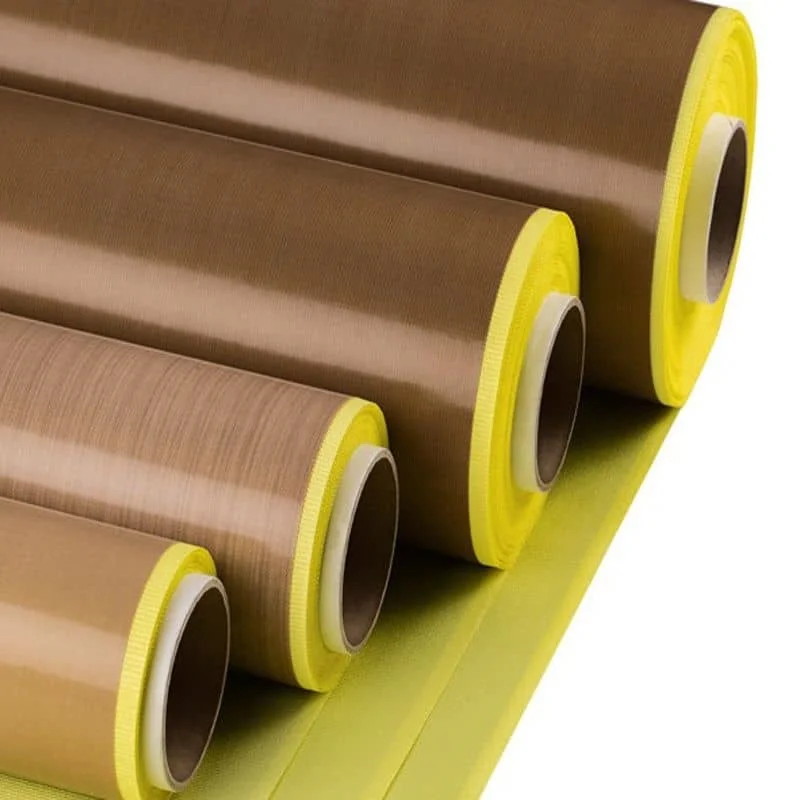

PTFE coated glass cloth is made from woven fiberglass and coated in a PTFE dispersion to create a smooth and glossy finish which provides a non stick surface. It’s great for laminate-release sheets, food contact, electrical insulation, industrial processing and laminated heat seal belts.
0.08mm~1.5mm
1m, 1.25m or customized
50m, 100m or customized
With adhesive or without adhesive.
Brown, black, beige or white.
Woven fiber glass fabric OR open mesh fabric.
0.08mm 0.12mm 0.13mm 0.15mm 0.18mm 0.22mm 0.25mm 0.28mm 0.3mm 0.35mm
High-temperature resistance
Non-sticky and easy to clean.
Food grade and nontoxic.
Heat resistance and fireproof.
Resistant to chemical corrosion, strong acid and alkali.
Good dimensional stability, high strength, and has good
mechanical properties.
Low friction coefficient
Light transmittance
High insulation property
Anti-static and Ultraviolet-proof.
● Removable or reusable insulation jackets, mattress and pads
● Weather-proof or moisture-proof covers
● Fabric expansion joints and compensators
● Fabric ductwork connector
● Furnace curtains
● welding curtains
● welding blankets and fire blankets
● Conveyor belt
| Technical Data | ||
|---|---|---|
| Item | Unit | Value |
| Tensile strength | Mpa | 110 |
| Thermal Conductivity at 23℃ | W/m*K | 0.5~1.0 |
| Hardness | Shore A | 65±5 |
| Thickness | mm | 0.7±5 |
| Withstand Voltage | KV | ≥6 |
| Range of Working Temperature | ℃ | -70~300 |
| Max Temperature Short Term | ℃ | +350 |
| Flammability | UL-94 | V-0 |
Common industrial grade
PTFE coated glass fiber fabric has good heat resistance, corrosion, non-stick properties, mainly used in various industrial fields.
Standard grade
Using imported materials production, in addition to good corrosion resistant properties, the surface is more smooth, flat, non-stick performance is good, both can be applied to general industrial applications, more advantages in some products used plastic stripping or separation sheets, gaskets, off mold surface.
Food grade
Smooth surface, good release properties, heat resistance and easy to clean, use more secure in the food industry.
Anti-static grade (anti-static cloth)
In addition to traditional performance of PTFE coated glass fiber fabric, adding anti-static agent when producing PTFE coated glass fiber fabric, so that it has anti-static properties to meet specific customer’s requirements.
| Item Number | Thickness | Max Width | Nominal Weight | Tensile Strength | Temperature Resistance | Color |
|---|---|---|---|---|---|---|
| YL008 | 0.08mm | 1250mm | 140 g/m² | 550/450 N/5cm | -70~260℃ | Brown |
| YL008B | 0.08mm | 1250mm | 140 g/m² | 550/450 N/5cm | -70~260℃ | Black |
| YL008W | 0.08mm | 1250mm | 140 g/m² | 550/450 N/5cm | -70~260℃ | Cream |
| YL012 | 0.115mm | 1250mm | 220 g/m² | 1100/1000 N/5cm | -70~260℃ | Brown |
| YL012B | 0.115mm | 1250mm | 220 g/m² | 1100/1000 N/5cm | -70~260℃ | Black |
| YL013 | 0.125mm | 1250mm | 250 g/m² | 1100/1000 N/5cm | -70~260℃ | Brown |
| YL013B | 0.125mm | 1250mm | 250 g/m² | 1100/1000 N/5cm | -70~260℃ | Black |
| YL015 | 0.145mm | 1250mm | 300 g/m² | 1200/1100 N/5cm | -70~260℃ | Brown |
| YL018 | 0.18mm | 1250mm | 340 g/m² | 1800/1700 N/5cm | -70~260℃ | Brown |
| YL025 | 0.23mm | 2600mm | 480 g/m² | 2100/1800 N/5cm | -70~260℃ | Brown |
| YL025B | 0.23mm | 2600mm | 480 g/m² | 2100/1800 N/5cm | -70~260℃ | Black |
| YL030 | 0.3mm | 3000mm | 600 g/m² | 2800/2400 N/5cm | -70~260℃ | Brown |
| YL030B | 0.3mm | 3000mm | 600 g/m² | 2800/2400 N/5cm | -70~260℃ | Black |
| YL035 | 0.33mm | 2600mm | 680 g/m² | 2600/2300 N/5cm | -70~260℃ | Brown |
| YL035B | 0.33mm | 2600mm | 680 g/m² | 2600/2300 N/5cm | -70~260℃ | Black |
| YL040 | 0.38mm | 3000mm | 800 g/m² | 3000/2500 N/5cm | -70~260℃ | Brown |
| YL040B | 0.38mm | 3000mm | 800 g/m² | 3000/2500 N/5cm | -70~260℃ | Black |
| YL055 | 0.55mm | 3000mm | 1080 g/m² | 4400/4000 N/5cm | -70~260℃ | Cream |
| YL070 | 0.7mm | 3000mm | 1250 g/m² | 5000/4800 N/5cm | -70~260℃ | Cream |
| YL095 | 0.95mm | 3000mm | 1550 g/m² | 6000/5000 N/5cm | -70~260℃ | Cream |
| YL100 | 1mm | 3000mm | 1700g/m² | 6000/5000 N/5cm | -70~260℃ | Cream |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
