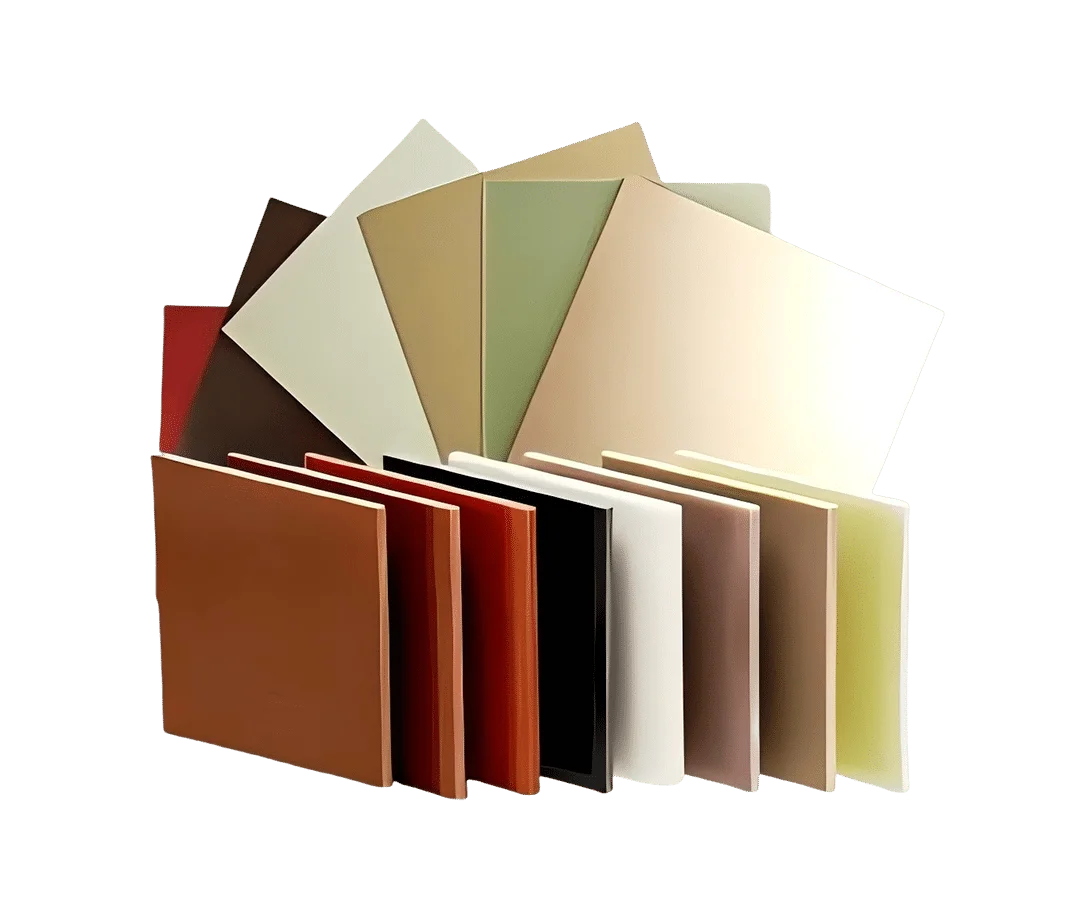

Compared to the normal PTFE sheets, the properties of modified & filled PTFE are improved. The sheets can be filled with additives like glass fiber, silica, glass micro-spheres, Barium Sulfate, carbon, graphite, polyimide, bronze, peek, MoS2 and POB. Each additive has its own advantage.
| Silica filled PTFE | |
|---|---|
| Creep Relaxation Reduced Emissions Min Cold Flow Problems Improved Sealing Performance |
Hydrocarbons, Solvents, Chlorine Water & Steam, Cryogenics Material Strong Acids |
| Barium Sulfate Filled PTFE | |
| Excellent Bolt Torque Retention Sealing Performance Better Virgin PTFE Reduced Emissions & Creep Relaxation |
Chlorine, Gases &Steam Strong Acids & Moderate Acids Hydrocarbons & Aluminum Fluoride |
| Glass Micro-spheres Filled PTFE | |
| Mini Cold Flow Problems Reduce Creep Relaxation Improved Sealing Performance Reduced Product Loss &Emissions |
Cryogenics Material, Hydrogen Peroxide Medium Concentrations of Acids & Caustics Hydrocarbons, Solvents, Water, Refrigerants |
| Carbon filled PTFE (25%~35%) | |
| High compressive strength Improved wear resistance under load&permanent deformation Better thermal & electrical conductivity |
Water&Steam Applications Vessel Openings, Pipe & Flanges Joint Highly Concentrated Hydrofluoric Acid In Hydrogen Fluoride: Heat Ex-changers |
| Graphite filled PTFE(15%) | |
| High compressive strength Improved wear resistance under load&permanent deformation Better thermal& electrical conductivity. Good chemical resistance Improved frictional properties |
Highly Concentrated Hydrofluoric Acid Volatile Hazardous Air Pollutants (VHAP) |
| Polyimide Filled PTFE (5%~20%) | |
| Good Thermal Conductivity & Wear Superior Wear & Coefficient of Friction Excellent Sliding & Electrical Insulation Resist Chemical & Machining Properties Softer Mating Surface Steel |Aluminum Low Cold Flow & Wide Temperature Range |
Automotive &Textile Industry Rotary& Reciprocating Seals Lip Seals Bearings, Valve Seat Food & Medical industry Processing Mechanical & Precision Engineering Bushings, Piston Rings, Chain Guides Stop-start Sockets Constructive Parts |
| MoS2 Filled PTFE (10%~20%) | |
| Self-lubrication in presence of apolar gas Low friction coefficient Good dimension stability and not fragile like ceramic Retained high dielectric performance in presence of improved thermal and electrical conductivity |
Medium Concentrations of Acids Dynamic Seals, Piston Cup Seals Slide Covers, Bearings, Refrigerants Bushings, Glide Rings, Back-up Rings Hydrocarbons, Solvents, Water, Seats Cryogenics Material, Hydrogen Peroxide |
| Peek Filled PTFE (15%) | |
| High compressive strength Excellent chemical resistance Outstanding mechanical properties at elevated temp. Good wear resistance |
Ring Seals, Piston Ring |Bearings Semiconductor, Electronics Oil & Gas Precision Part, Sheet, Bushings, Tube Chemical Technology, Automotive Industry |
| Properties | Unit | PTFE Filled with Silica | PTFE Filled with Barium Sulfate | PTFE Filled with Microspheres | PTFE Filled with PEEK |
|---|---|---|---|---|---|
| YL-100SFP | YL-100BSFP | YL-100MFP | YL-100PKFP | ||
 |
|
|
|
||
| Color | / | Pink | Off-white | Blue | Yellow |
| Density | g/cm³ | 2.1 | 2.8 | 1.6 | 1.4 |
| Thickness | mm | 0.5~6.0 | 0.5~6.0 | 0.5~6.0 | |
| Tensile strength | Mpa | 14 | 14 | 14 | 11 |
| Minimum Temperature | °C | -200℃ | -200℃ | -200℃ | -200℃ |
| Maximum Temperature | v | 260℃ | 260℃ | 260℃ | 260℃ |
| Maximum Pressure | Mpa | 8 | 8 | 6 | - |
| Hardness | Shore D | 60 | 65 | 75 | |
| Elongation at break | % | 200 | 200 | 150 | 280 |
| Recovery | % | 40 | 40 | 30 | - |
| Creep Relaxation | % | 18 | 13 | 38 | - |
| Compressibility | % | 5~15 | 4~10 | 25~40 | 8~15 |
| Seal-ability | cm³/min | <0.15 | <0.15 | <0.15 | <0.15 |
| PH | / | 0~14 | 0~14 | 0~14 | 0~14 |

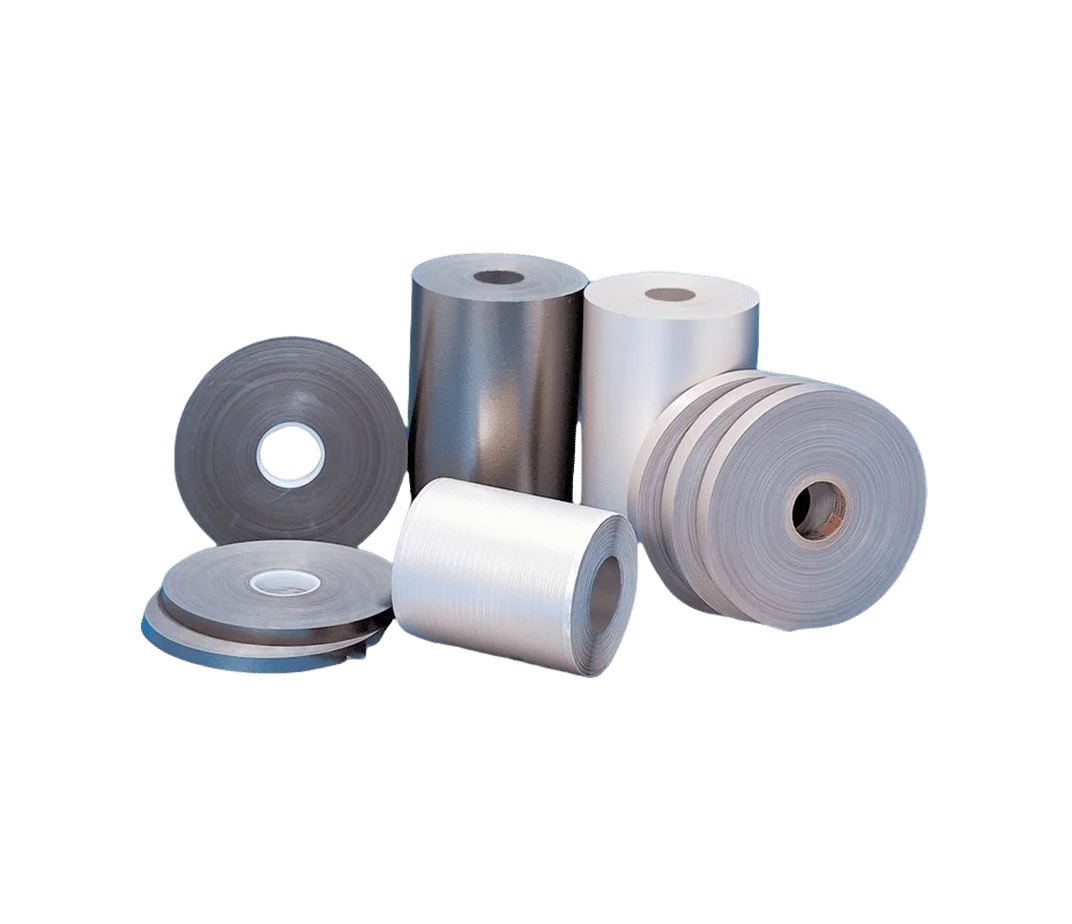

| Common Size | mm | 1000x1000, 1200x1200, 1500x1500 or in roll 15000mm, 20000mm; Rod diameter 6~150mm |
|||
| Properties | Unit | PTFE Filled with Silica | PTFE Filled with Barium Sulfate | PTFE Filled with Microspheres | PTFE Filled with PEEK |
| YL-100CFP | YL-100GFP | YL-100PIFP | YL-100MSFP | ||
|
|
 |
|
 |
||
| Color | / | Black | Black | Amber | Grey |
| Density | g/cm³ | 2.1 | 2.1 | 2.0 | 2.2 |
| Thickness | mm | 0.5~6.0 | 0.5~6.0 | 0.5~6.0 | 0.5~6.0 |
| Tensile strength | Mpa | 16 | 15 | 19 | 21 |
| Minimum Temperature | °C | -200℃ | -200℃ | -260℃ | -200℃ |
| Maximum Temperature | v | 260℃ | 260℃ | 310℃ | 260℃ |
| Maximum Pressure | Mpa | 30 | 25 | - | - |
| Hardness | Shore D | 65 | 60 | 65 | 60 |
| Elongation at break | % | 200 | 120 | 280 | 250 |
| Recovery | % | 35 | - | - | - |
| Creep Relaxation | % | 12 | 15 | - | - |
| Compressibility | % | 5~10 | 5~10 | 5~10 | 5~10 |
| Seal-ability | cm³/min | <0.15 | <0.15 | <0.15 | <0.15 |
| PH | / | 0~14 | 0~14 | 0~14 | 0~14 |
| Common Size | mm | 1000x1000, 1200x1200, 1500x1500 or in roll 15000mm, 20000mm; Rod diameter 6~150mm |
|||
| ASTM test are based on 0.80mm sheet thickness and DiN test is based on 1.50mm sheet thickness | |||||
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
