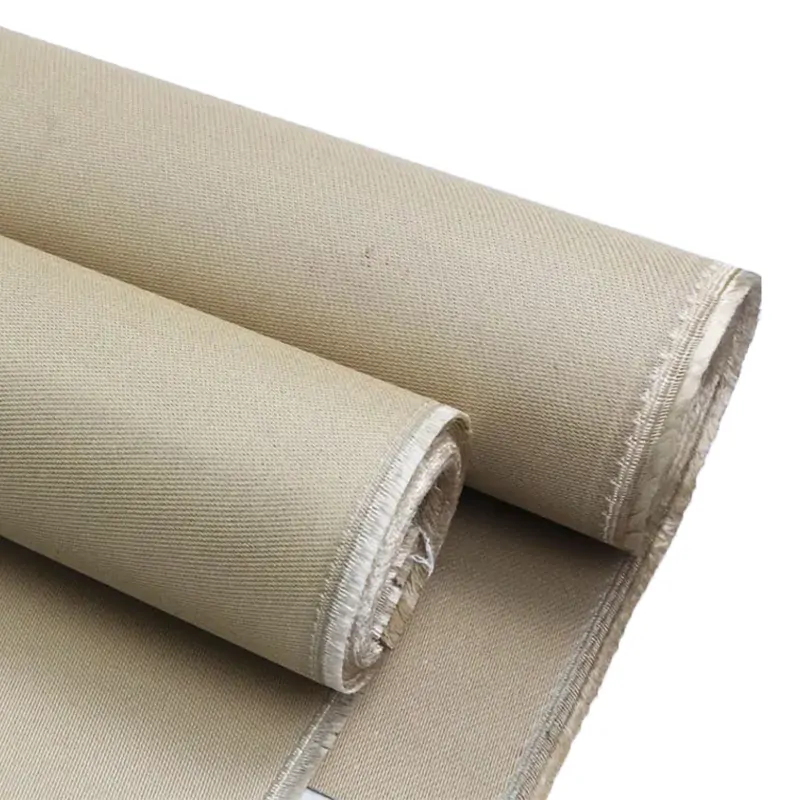

High Silica Fiberglass Fabric is a type of fiberglass material that is characterized by its high silica content. It is made from glass fibers with a high concentration of silica, which gives it exceptional heat resistance properties. High silica fiberglass is known for its ability to withstand extremely high temperatures, making it suitable for use in applications where heat and fire resistance are critical, such as in insulation for industrial furnaces, foundries, and high-temperature equipment.
85~1800gsm
0.1mm~3mm
920mm, 1000mm
50m~300m
1000℃
1700℃
Plain/Satin
E-Glass
Chemical resistant
Abrasion resistant
Fire resistance
High insulation value
High Tensile Strength
High heat resistance
High Dimensional Stability
Good machinability
Low thermal shrinkage
Sound insulation
Flexible and non-hazardous
● Welding and Fire Blanket
● Thermal and Electrical Insulation
● Gasketing
● Expansion Joints
● Heat shields
● Containment
● Door Seals
● The inner lining of switch boxes
| Item | Value |
|---|---|
| Width (mm) | 920/1000 (±10) |
| Length (m) | 50 |
| Thickness (mm) | 1.3 ± 0.1 |
| Weight (g/m²) | 1200 ± 50 |
| Silica Content % | ≥ 96 |
| Linear Shrinkage % | 5-10 |
| Coating Pu | 0.8-1% |
| Working Temperature | 1000 ℃ |
| Melting Temperature | 1700 ℃ |
| Weave Style | 12HS Satin |
| Warp Counts (ends/cm) | 12HS Satin |
| Fill Count (ends/cm) | ≥13 |
| Warp Breaking Strength (N/Inch) | ≥ 1200 |
| Weft Breaking Strength (N/Inch) | ≥ 800 |
| Product Code | Width | SiO₂ | Thickness | Weight | Weave Type | ||
|---|---|---|---|---|---|---|---|
| mm | inch | g/m² | oz/yd² | ||||
| YL-100 | 920mm 1000mm |
≥96% | 0.1 | 0.004 | 87 | 3 | Plain |
| YL-260 | ≥96% | 0.25 | 0.01 | 240 | 7 | Plain | |
| YL-600 | ≥96% | 0.65 | 0.025 | 612 | 18 | Satin | |
| YL-880 | ≥96% | 1.0 | 0.04 | 880 | 26 | Satin | |
| YL-1200 | ≥96% | 1.3 | 0.054 | 1200 | 36 | Satin | |
| YL-1500 | ≥96% | 2.0 | 0.08 | 1500 | 44 | Satin | |
| YL-1800 | ≥96% | 3.0 | 0.12 | 1800 | 53 | Satin |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
Manufacturer and Exporter
