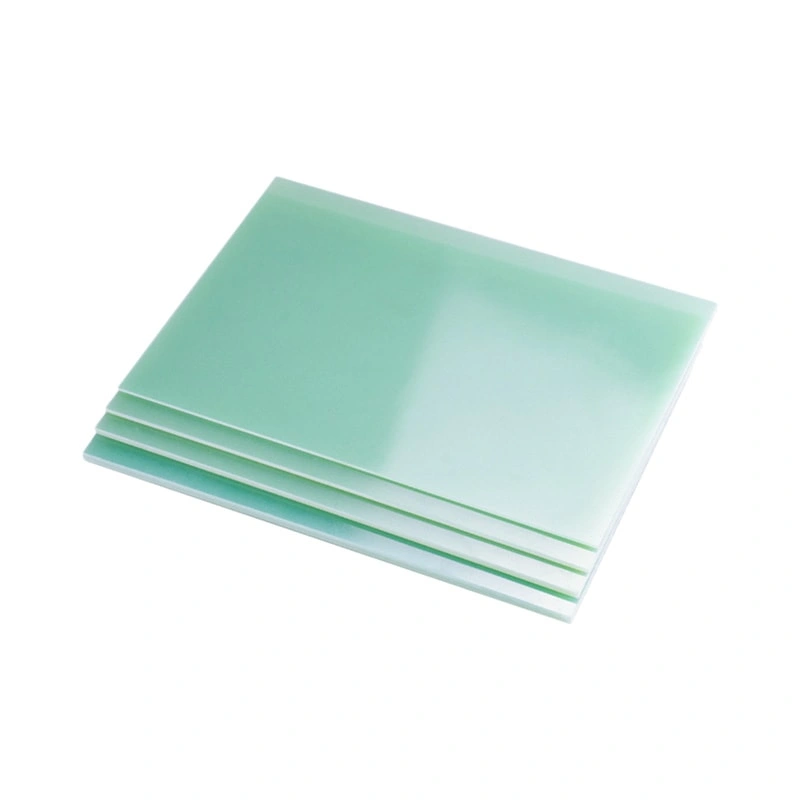

Cryogenic G-10 (YL3849) is a high-performance glass fabric reinforced epoxy composite designed for cryogenic service from -196°C to 130°C (up to 155℃ upon request). It is based on a halogen-free epoxy system that provides excellent electrical insulation, low thermal conductivity, and strong mechanical stability at ultra-low temperatures.
It is optimized for LNG and other cryogenic applications where reliable thermal isolation and structural integrity are required. It maintains stable properties under high humidity and continuous cryogenic exposure.
G-10 CR is widely used in LNG piping systems under -196℃, storage equipment, and aerospace cryogenic structures. It is available in both sheet and tube form (YL3848) for machining into precision insulation components.
Note: This material is not flame retardant.
YILONG
Epoxy Resin + Fiberglass
Green
0.3~100mm
1030mm*1230mm
1030mm*1220mm, 1220mm*2440mm
Pallet, Wooden Box
500KG
Continuous service at -196°C cryogenic conditions
Excellent electrical insulation properties
Low thermal conductivity for thermal isolation
High mechanical strength and dimensional stability
Halogen-free epoxy system
Stable performance in humid environments
Suitable for precision CNC machining and structural components
Available in sheet and tube forms (YL3848)
● LNG piping systems and pipe supports
● Cryogenic Structural Applications
● Liquified Natural Gas Structural Applications
● LNG Cold Shoes and Washers
● LNG Insulation Applications
● LNG Pipe Support Components

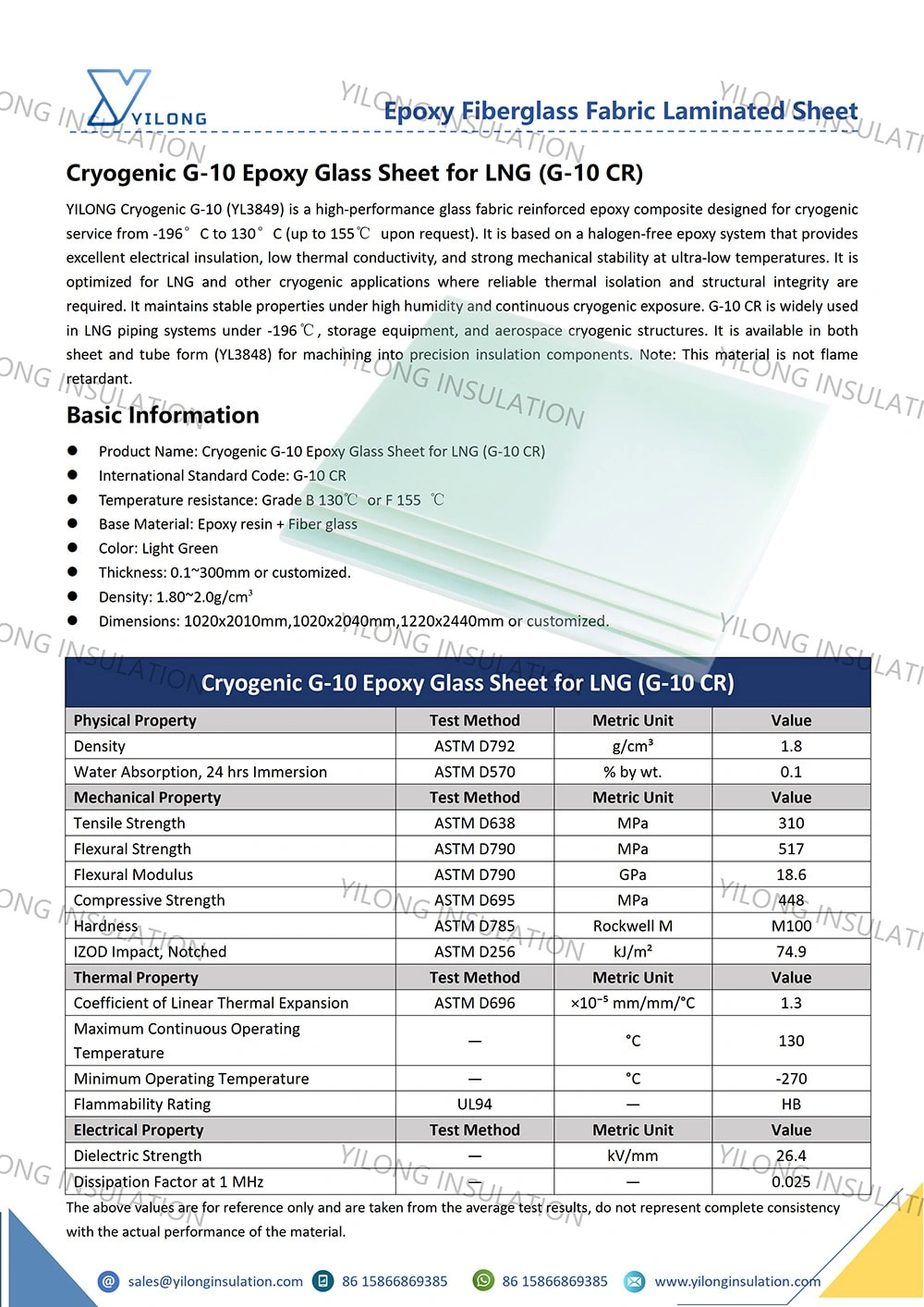

| Cryogenic G-10 Epoxy Glass Sheet for LNG (G-10 CR) | |||
| Physical Property | Test Method | Metric Unit | Value |
| Density | ASTM D792 | g/cm³ | 1.8 |
| Water Absorption, 24 hrs Immersion | ASTM D570 | % by wt. | 0.1 |
| Mechanical Property | Test Method | Metric Unit | Value |
| Tensile Strength | ASTM D638 | MPa | 310 |
| Flexural Strength | ASTM D790 | MPa | 517 |
| Flexural Modulus | ASTM D790 | GPa | 18.6 |
| Compressive Strength | ASTM D695 | MPa | 448 |
| Hardness | ASTM D785 | Rockwell M | M100 |
| IZOD Impact, Notched | ASTM D256 | kJ/m² | 74.9 |
| Thermal Property | Test Method | Metric Unit | Value |
| Coefficient of Linear Thermal Expansion | ASTM D696 | ×10⁻⁵ mm/mm/°C | 1.3 |
| Maximum Continuous Operating Temperature | — | °C | 130 |
| Minimum Operating Temperature | — | °C | -270 |
| Flammability Rating | UL94 | — | HB |
| Electrical Property | Test Method | Metric Unit | Value |
| Dielectric Strength | — | kV/mm | 26.4 |
| Dissipation Factor at 1 MHz | — | — | 0.025 |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
Manufacturer and Exporter
