Polycarbonate (PC) plastics are transparent amorphous thermoplastics with outstanding mechanical strength, durability, and impact resistance. They are virtually unbreakable and capable of withstanding much greater impacts compared to glass and other plastics with similar properties. Polycarbonate is easily worked, molded and thermoformed. It can undergo large deformations without cracking or breaking.

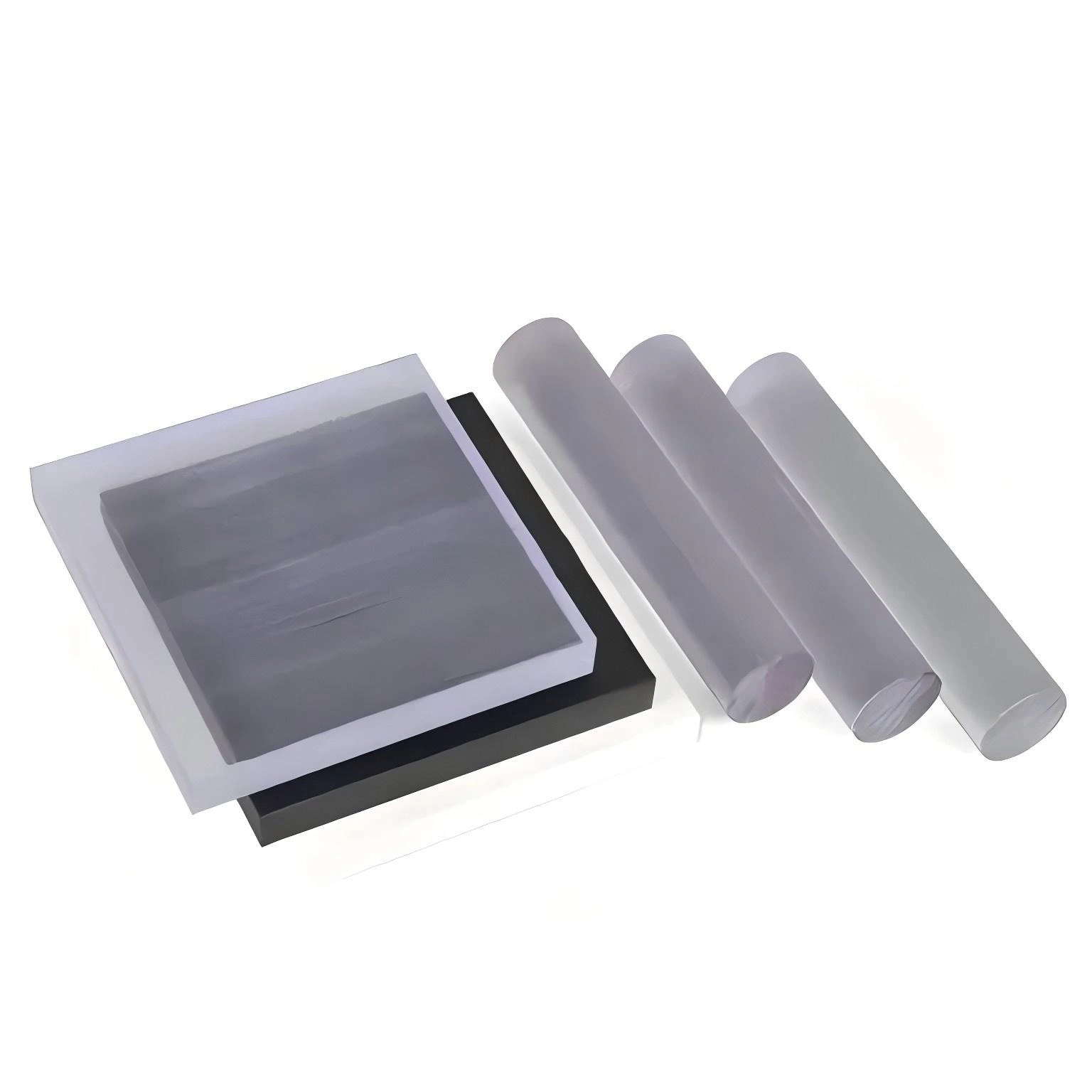

| Item | Thickness | Common Size |
|---|---|---|
| PC Sheet | 3-100mm | 1000x2000mm, 1220x2440mm |
| Item | Diameter | Length |
| PC Rod | 15-200mm | 1000mm, 2000mm |
High mechanical strength
Outstanding impact resistance
Strong and stiff
Good creep resistance
Excellent dimensional stability
Ideal for close tolerance parts
Continuous working temperature 100°C
● Light Diffusers
● Windows and skylights
● Indoor and outdoor signage
● Security Vehicle Glazing
● Safety glazing
● Storm panels
● Machine Guards
● Industrial & Riot Shields
● Rooflights for Trains & Buses
● Replacement for glass

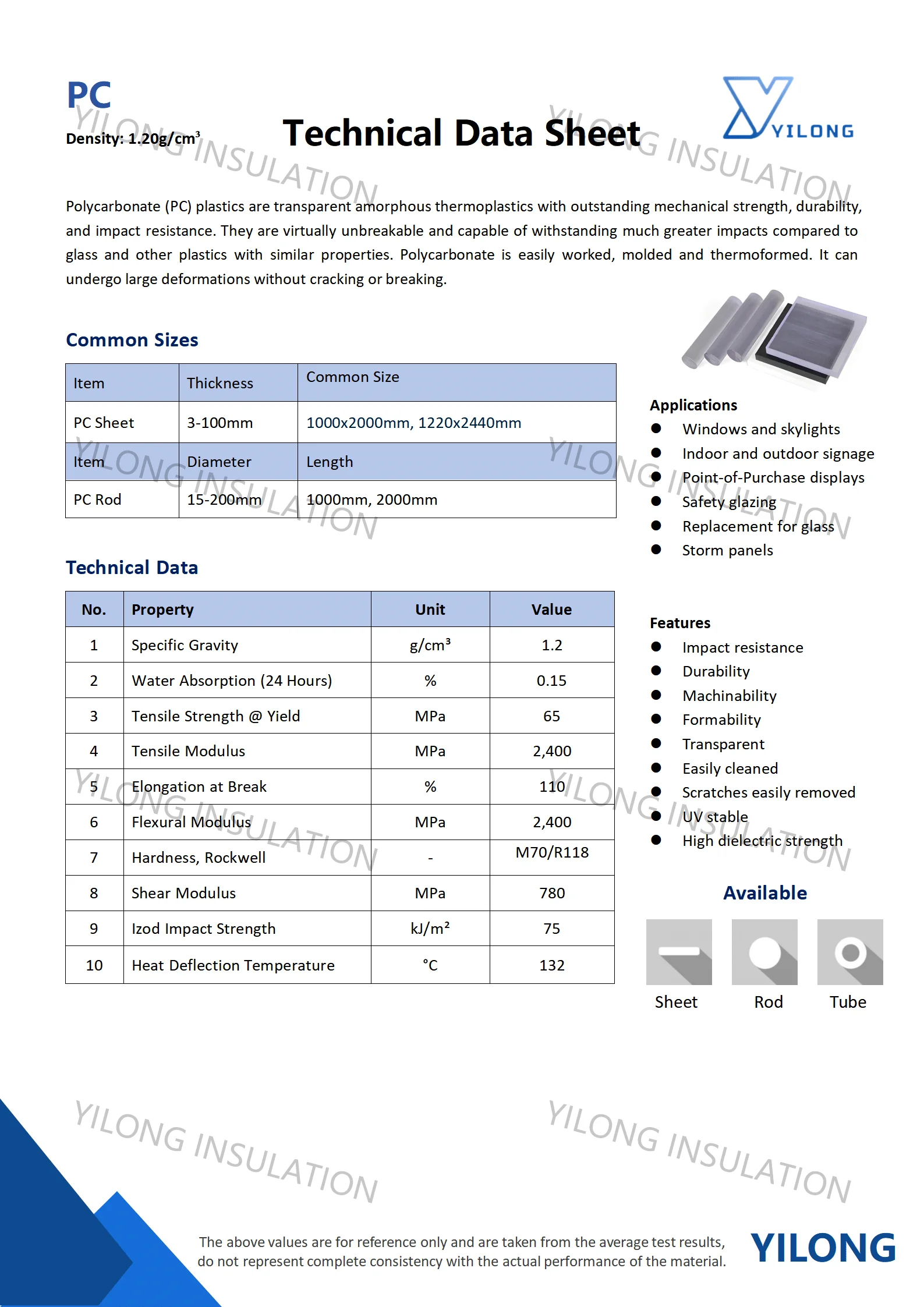

| Technical Data Sheet | ||
|---|---|---|
| Properties | Unit | Value |
| Specific Gravity | g/cm³ | 1.2 |
| Water Absorption (24 Hours) | % | 0.15 |
| Tensile Strength @ Yield | MPa | 65 |
| Tensile Modulus | MPa | 2400 |
| Elongation at Break | % | 110 |
| Flexural Modulus | MPa | 2400 |
| Hardness, Rockwell | - | M70/R118 |
| Shear Modulus | MPa | 780 |
| Izod Impact Strength | kJ/m² | 75 |
| Heat Deflection Temperature @ 1.82 MPa | °C | 132 |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
