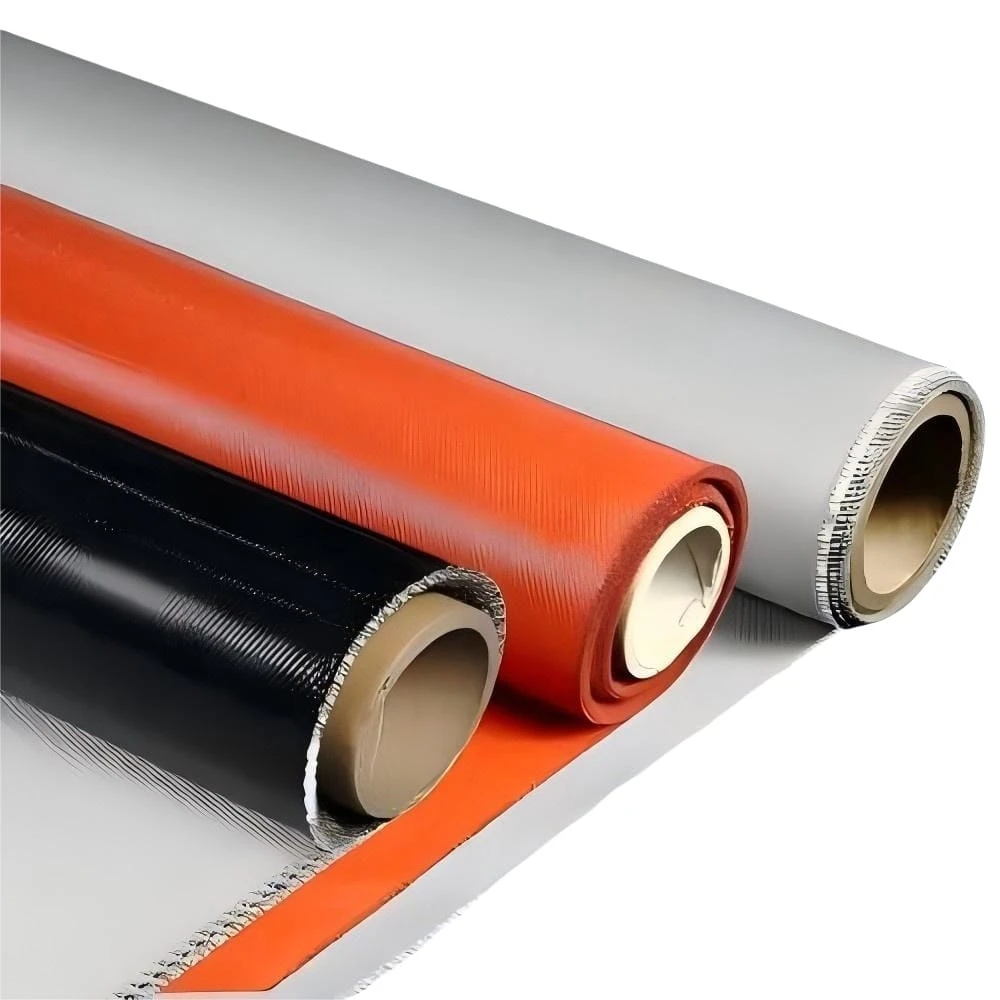

Silicone coated glass cloth is manufactured from a flexible, high temperature glass cloth base coated on one or both sides. The silicone coating provides excellent resistance to heat and weathering but poor resistance to solvents, oils, alkali and acid. Silicone also has good release properties providing the material with non-stick characteristics. It is a popular for use as flexible connectors, sleeves, bellows, heat curtains and gaskets.
Silicone coated glass cloth can be supplied cut to size, by the roll, or manufactured to suit your requirements.
White, black, Grey or red.
500mm, 1000mm, 1500mm or customized
30m, 50m, 100m or customized
One Side or both sides.
Light duty, medium duty, heavy duty
0.2mm~3.0mm
-70℃~+300℃, shortly +350℃
Temperature resistance up to 300°C
Excellent non-stick surface
Good chemical resistance
Excellent mechanical strength
Water and oil resistance
Resistance to ozone
Superior flex and abrasion resistance
Flame resistance, good as welding curtain
● Used as thermal insulation
● Used as fire protection and fire blankets
● Used as splash curtains
● Used as the outer layer of expansion joints
● Used as the outer layer of removable insulation jackets
| Technical Data | ||
|---|---|---|
| Item | Unit | Value |
| Thickness | mm | 0.08~1.0 |
| Coated Weight | gsm | 50~80 |
| Temperature Range | ℃ | -70~260℃ |
| Air Flow Range | m³/min | 3.0~5.5 |
| Breaking Strength Wrap | N/mm | 7 |
| Breaking Strength Fill | N | 5.5 |
| Tear Strength Wrap | N | 25 |
| Tear Strength Fill | N | 18 |
| Elongation at Break | % | 2 |
| Dielectric Strength | kV/mm | 1.6 |
| No. | Basic Fabric Style No. | Coating Material | Coating Side | Finished Thickness (mm) | Basic Fabric Weight (gsm) | Finished Weight (gsm) |
|---|---|---|---|---|---|---|
| YL0200801 | E-Glass 7628 |
Liquid/Wet Silicone Rubber | 1 | 0.2 | 200 | 280 |
| YL0200802 | Liquid/Wet Silicone Rubber | 2 | 0.25 | 320 | ||
| YL0350801 | E-Glass 2523 |
Liquid/Wet Silicone Rubber | 1 | 0.35 | 350 | 480 |
| YL03501502 | Liquid/Wet Silicone Rubber | 2 | 0.4 | 550 | ||
| YL0350502 | Solid/Dry Silicone Rubber | 2 | 0.35 | 450 | ||
| YL03501302 | Solid/Dry Silicone Rubber | 2 | 0.4 | 530 | ||
| YL0400801 | E-Glass 3732-1 |
Liquid/Wet Silicone Rubber | 1 | 0.4 | 400 | 510 |
| YL04001502 | Liquid/Wet Silicone Rubber | 2 | 0.45 | 580 | ||
| YL0400502 | Solid/Dry Silicone Rubber | 2 | 0.43 | 480 | ||
| YL04001302 | Solid/Dry Silicone Rubber | 2 | 0.45 | 560 | ||
| YL0400801 | E-Glass 3732-2 |
Liquid/Wet Silicone Rubber | 1 | 0.4 | 400 | 500 |
| YL04001302 | Liquid/Wet Silicone Rubber | 2 | 0.45 | 550 | ||
| YL0400502 | Solid/Dry Silicone Rubber | 2 | 0.4 | 480 | ||
| YL06001501 | E-Glass 666 |
Liquid/Wet Silicone Rubber | 1 | 0.65 | 600 | 790 |
| YL06002602 | Liquid/Wet Silicone Rubber | 2 | 0.7 | 900 | ||
| YL06002302 | Solid/Dry Silicone Rubber | 2 | 0.7 | 870 | ||
| YL08001501 | E-Glass 3784 |
Liquid/Wet Silicone Rubber | 1 | 0.8 | 800 | 990 |
| YL08002602 | Liquid/Wet Silicone Rubber | 2 | 0.9 | 1100 | ||
| YL08002002 | Solid/Dry Silicone Rubber | 2 | 0.9 | 1040 | ||
| YL10001801 | E-Glass 3786 |
Liquid/Wet Silicone Rubber | 1 | 1 | 1000 | 1480 |
| YL10003202 | Liquid/Wet Silicone Rubber | 2 | 1.1 | 1620 | ||
| YL10002602 | Solid/Dry Silicone Rubber | 2 | 1.1 | 1560 | ||
| YL15002201 | E-Glass 3788 |
Liquid/Wet Silicone Rubber | 1 | 1.6 | 1500 | 1820 |
| YL15003802 | Liquid/Wet Silicone Rubber | 2 | 1.7 | 1980 | ||
| YL15003202 | Solid/Dry Silicone Rubber | 2 | 1.7 | 1920 |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
Manufacturer and Exporter
No.3, Mianzhi Street, Zhucheng, Shandong, China
