Nylon (PA6) is a stiff, strong engineering thermoplastic with excellent wear and bearing properties. Lighter and with less operating noise than metal, nylon serves as a replacement for metal parts in bearing and wear applications. Nylon reduces or eliminates the need for external lubrication and increases part life by reducing wear on mating parts.
Nylon is self-lubricating and comes in both cast type 6 and extruded type 6/6 grades. Cast type 6 nylon is more pliable with higher strength and dimensional stability. Extruded type 6/6 nylon has a higher melting point. Oil-filled, glass-filled and MD variations of nylon feature additives for enhancement of mechanical properties.
| Item | Thickness (mm） | Common Size |
|---|---|---|

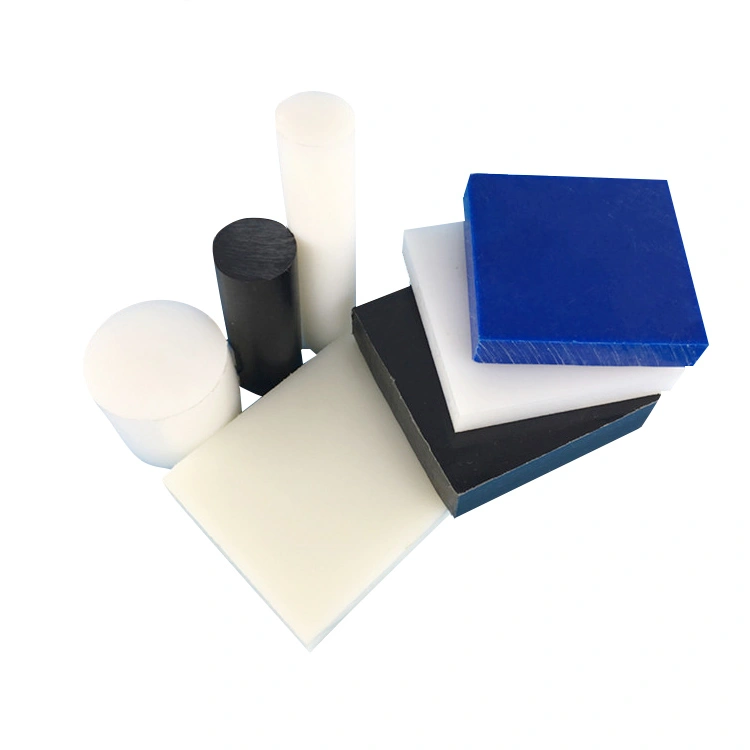

| PA6 Sheet | 1~200mm | 600x1200mm, 700x1200mm, 1000x2000mm, 1100x2200mm |
| Item | Diameter (mm) | Length |
| PA6 Rod | 6~300mm | 100mm, 250mm, 500mm, 1000mm, 1500mm, 2000mm |
Excellent bearing properties
High wear resistance
High impact strength and toughness
Good electrical insulator
Very high sliding properties
Working temperature range of -40 to 160 ℃
● Bearings and bushings
● Gears and sprockets
● Electrical wire insulation
● Medical tubing
● Consumer goods

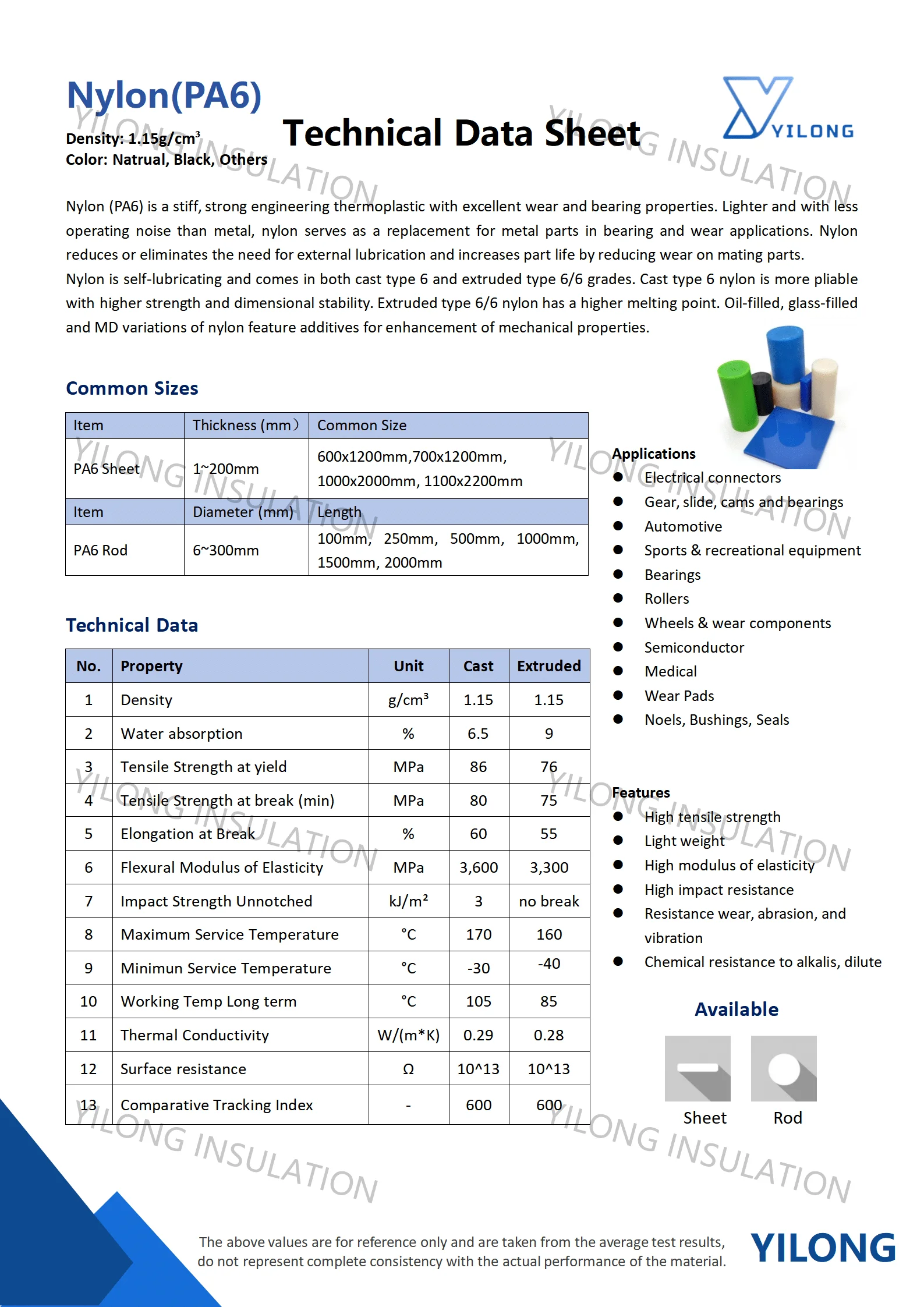

| Technical Data Sheet | |||
|---|---|---|---|
| Properties | Cast | Extruded | Unit |
| Density | 1.15 | 1.15 | g/cm³ |
| Water absorption | 6.5 | 9 | % |
| Tensile Strength at yield | 86 | 76 | MPa |
| Tensile Strength at break (min) | 80 | 75 | MPa |
| Elongation at Break | 60 | 55 | % |
| Flexural Modulus of Elasticity | 3600 | 3300 | MPa |
| Impact Strength Unnotched | 3 | no break | kJ/m² |
| Maximum Service Temperature | 170 | 160 | °C |
| Minimun Service Temperature | -30 | -40 | °C |
| Working Temp Long term | 105 | 85 | °C |
| Thermal Conductivity | 0.29 | 0.28 | W/(m*K) |
| Surface resistance | 10^13 | 10^13 | Ω |
| Comparative Tracking Index | 600 | 600 | - |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
