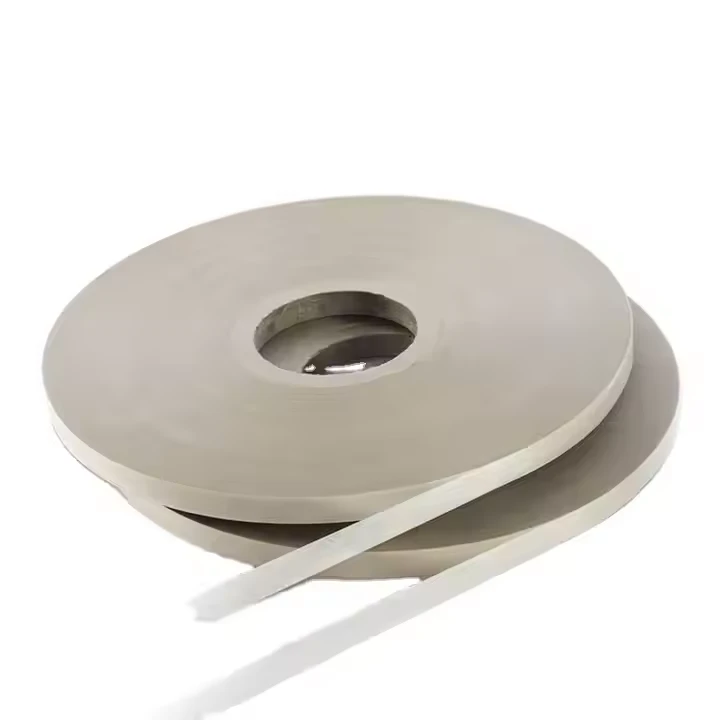

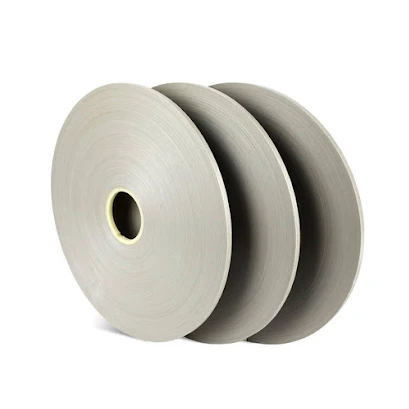

Mica Tape-Synthetic

Mica

Synthetic Mica Tape for fire-resistant cable is insulation material made of superior synthetic mica paper, impregnated with high-quality silicon resin and backed with reinforcing material, which can resist high voltage and especially high temperature. We use pure high-quality synthetic mica to produce mica paper and mica tape in our factory, which can provide high-quality mica tape, and resist temperatures 950℃ and up.
Synthetic mica tape usually used as insulation material at flame temperatures of 950℃ to 1000℃.
Phlogopite mica tape usually used as insulation material at flame temperatures of 750℃ to 850℃.
Calcined mica tape usually used as insulation material at flame temperatures of 850℃ to 950℃.

Inquiry Contact

Download

Basic Information

Thickness
0.10mm-0.16mm
Width
4.5mm-1000mm
Length
500m, 1000m, 2000m
Standard cores

52mm, 54mm, 76mm, 120mm.

Features

Resist high temperature to 950℃ and up.
Excellent insulating property.
Flexible, high-tensile for high-speed cable manufacturing.
Eco-friendly, free of toxic gases in a fire
Fire-resistant for high-quality cable
At least 3 hours of excellent electrical insulation

Applications

● Applied to flexibe fire-resistant wire & cable with high temperature resistance requirements.

● High-rise buildings

● Underground railways

● Large power stations

● Important industrial and mining enterprises

● Other places related to fire safety and fire rescues

Technical Data

Synthetic Mica Tape
Item	Unit	YL-S-GS
Thickness ±0.015mm	mm	0.10	0.11	0.12	0.13	0.14	0.15
Length	m
Weight (±10~15)	g/m²	130	140	160	175	200	210
Mica Content	g/m²	80±3	100±3	120±5	140±5	160±5	180±5
Glss Content	g/m²	30±3	30±3	30±3	30±3	30±3	30±3
Film Content	g/m²	-	-	-	-	-	-
Bonding Content	g/m²	13±3	16±3	20±3	21±3	24±3	25±3
Breakdown Voltage	Kv/layer	＞1.1	＞1.2	＞1.5	＞1.6	＞1.8	＞1.9
Tensile strength	N/cm	＞120	＞120	＞120	＞120	＞120	＞120
Fire Grades	℃	950℃~1000℃
Item	Unit	YL-S-GD
Thickness ±0.02mm	mm	0.14		0.16		0.20
Length	m	500 , 1000, 2000
Weight (±12~14)	g/m²	195		230		260
Mica Content	g/m²	130±5		150±5		180±5
Glss Content	g/m²	40±3		40±3		40±3
Film Content	g/m²	-		-		-
Bonding Content	g/m²	20±3		24±3		28±3
Breakdown Voltage	Kv/layer	＞1.5		＞1.8		＞2.5
Tensile strength	N/cm	＞120		＞120		＞120
Fire Grades	℃	950℃~1000℃
Item	Unit	YL-S-GFD
Thickness ±0.02mm	mm	0.14		0.15		0.16
Length	m	500 , 1000, 2000
Weight (±12~14)	g/m²	180		200		228
Mica Content	g/m²	120±5		140±5		160±5
Glss Content	g/m²	25±3		25±3		25±3
Film Content	g/m²	18±2		18±2		18±2
Bonding Content	g/m²	18±3		20±3		22±3
Breakdown Voltage	Kv/layer	＞2.5		＞2.5		＞2.5
Tensile strength	N/cm	＞120		＞120		＞120
Fire Grades	℃	950℃~1000℃

The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
