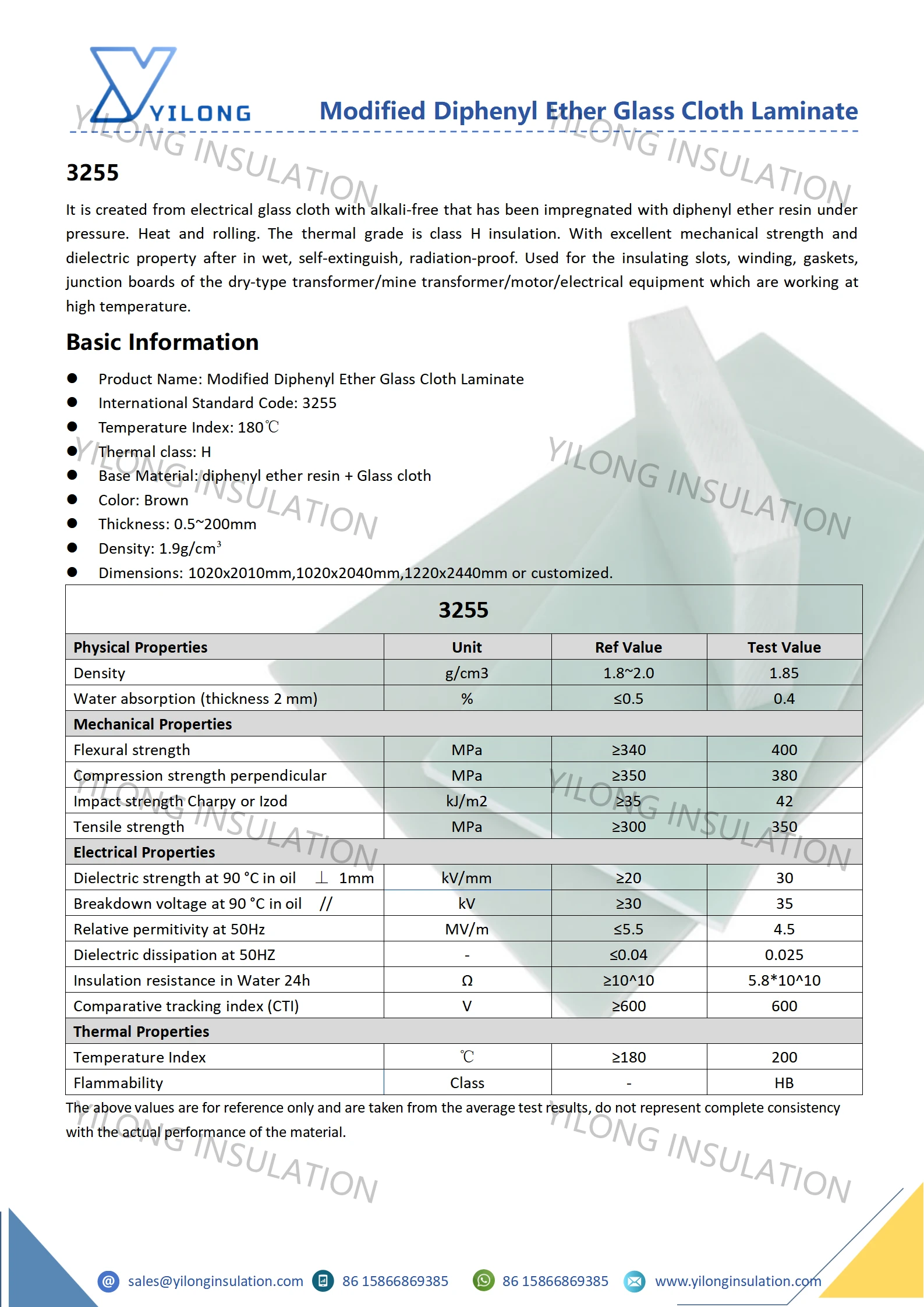

It is created from electrical glass cloth with alkali-free that has been impregnated with diphenyl ether resin under pressure. Heat and rolling. The thermal grade is class H insulation. With excellent mechanical strength and dielectric property after in wet, self-extinguish, radiation-proof. Used for the insulating slots, winding, gaskets, junction boards of the dry-type transformer/mine transformer/motor/electrical equipment which are working at high temperature.

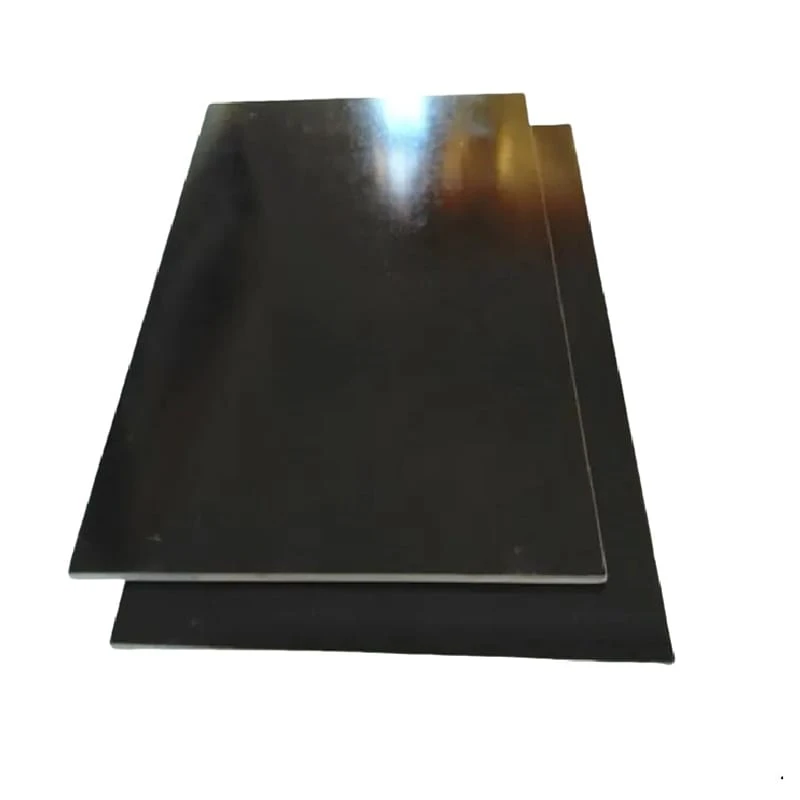

Modified Diphenyl Ether Glass Cloth Laminate
3255
180℃
H
Diphenyl ether resin + Glass cloth
Brown
0.5~200mm
1.9g/cm³
1020x2010mm,1020x2040mm,1220x2440mm or customized.
Superior electrical insulation
High temperature resistance Grade H
Flame retardant
Robust mechanical strength
Excellent chemical resistance
Dimensional stability
Easy processing and installation
Versatility
Long-lasting durability
Compliance with industry standards
● Insulating slots
● Windings
● Gaskets
● Junction boards of the dry-type transformer
● Mine transformer
● Motor
● Electrical equipment at high temperature.
| 3255 | |||
|---|---|---|---|
| Physical Properties | Unit | Ref Value | Test Value |
| Density | g/cm³ | 1.8~1.9 | 1.85 |
| Water absorption (thickness 2 mm) | % | 0.5 | 0.4 |
| Mechanical Properties | |||
| Flexural strength | MPa | ≥340 | 400 |
| Compression strength perpendicular | MPa | ≥350 | 380 |
| Impact strength Charpy or Izod | kJ/m² | ≥35 | 42 |
| Tensile strength | MPa | ≥300 | 350 |
| Electrical Properties | |||
| Dielectric strength at 90 °C in oil ⊥ 1mm | kV/mm | ≥20 | 30 |
| Breakdown voltage at 90 °C in oil // | kV | ≥30 | 35 |
| Relative permitivity at 50Hz | MV/m | ≤5.5 | 4.5 |
| Dielectric dissipation at 50HZ | - | ≤0.04 | 0.025 |
| Insulation resistance in Water 24h | Ω | ≥10^10 | 5.8*10^10 |
| Comparative tracking index (CTI) | V | ≥600 | 600 |
| Thermal Properties | |||
| Temperature Index | ℃ | ≥180 | 200 |
| Flammability | Class | - | HB |
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
