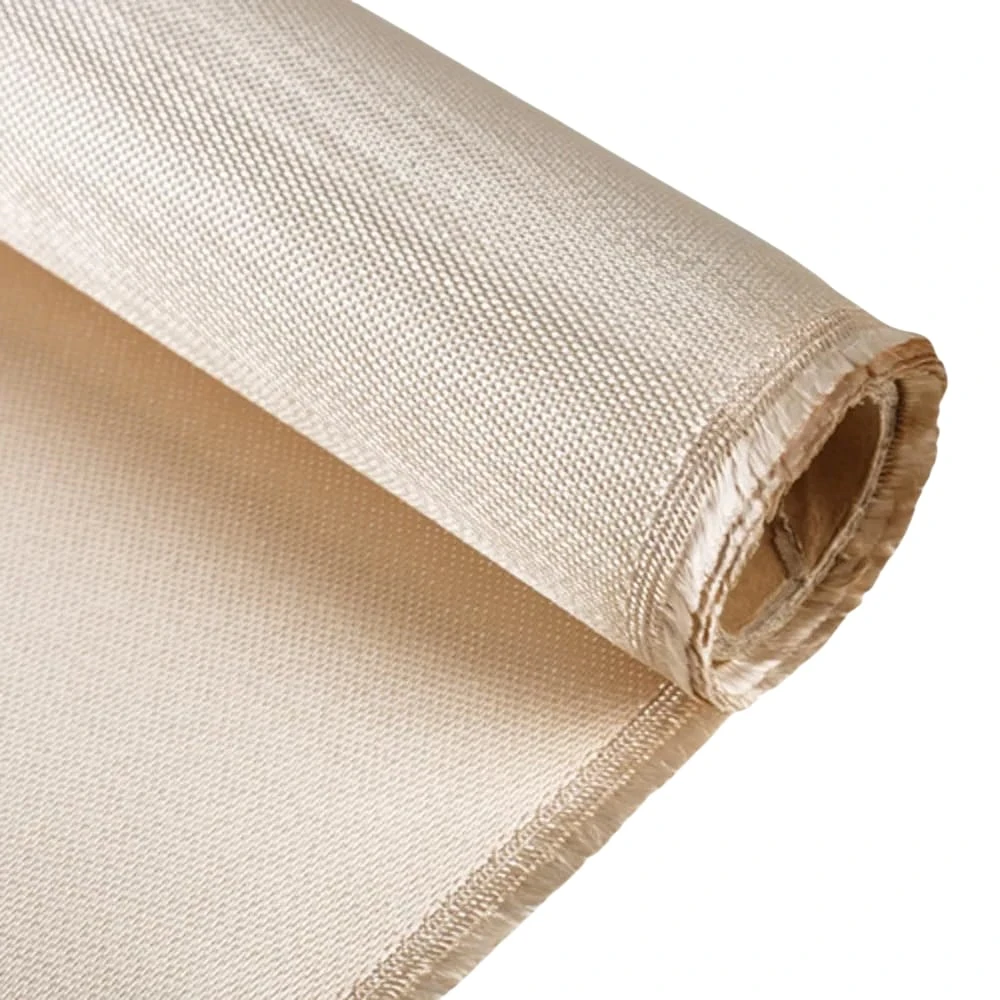

Texturized Glass Fiber fabrics are woven from continuous filament fiberglass yarns that have been treated by a proprietary texture process. The texture not only enhances the material's strength, durability, and flexibility, but also gives it a distinct appearance, making it stand out from other fabrics. Due to its unique properties, Texturized Fiberglass Cloth is widely used in different industries such as construction, automotive, aerospace, and marine.
600~2300gsm
0.75mm~3mm
1m~2m
50m~300m
-50℃ to 550℃
Plain
Aluminum Foil, Graphite, Acrylic, PTFE, Silicone and etc.
Corrosion resistance
Electrical insulation
High strength
Base material for coating, impregnating and laminating
Flexible, can be wrapped around complex shapes
● All types of thermal insulation and heat protection
● Welding blankets and fire curtains
● Expansion joints
● Basic cloth for coatings and laminations

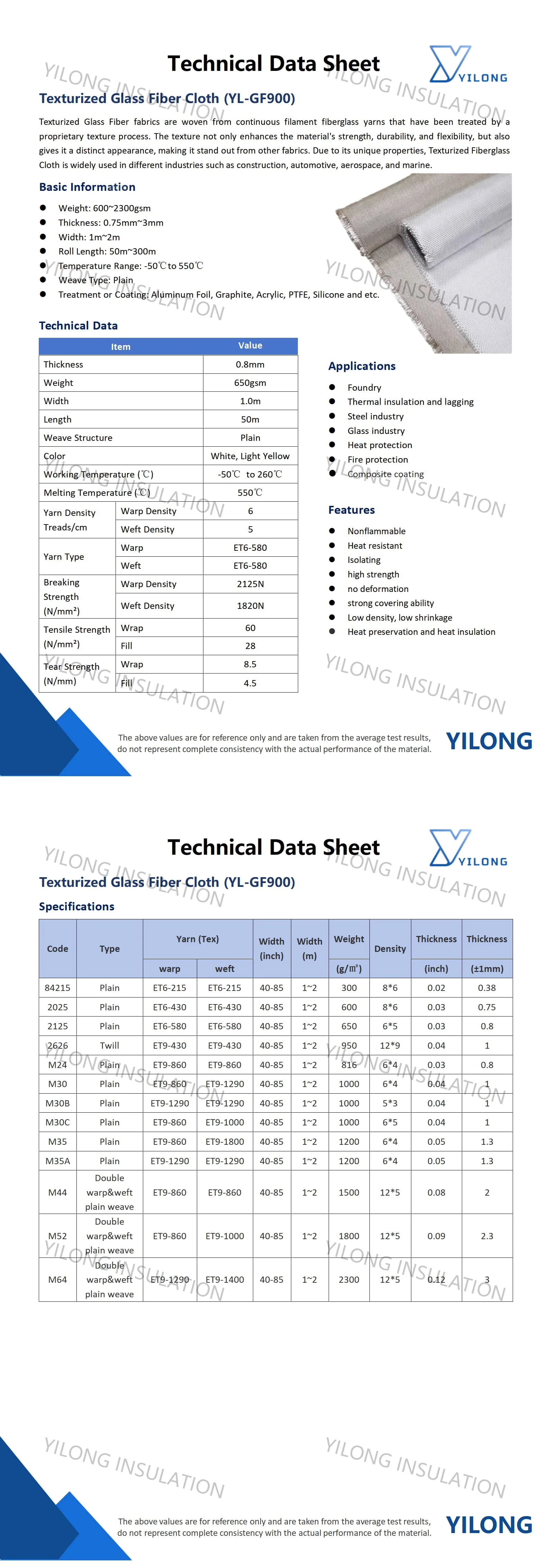

| Technical Data | ||
|---|---|---|
| Item | Value | |
| Thickness | 0.8mm | |
| Weight | 650gsm | |
| Width | 1.0m | |
| Length | 50m | |
| Weave Structure | Plain | |
| Color | Light Yellow | |
| Working Temperature (℃) | -50℃ to 260℃ | |
| Melting Temperature (℃) | 550℃ | |
| Yarn Density Treads/cm | Warp Density | 6 |
| Weft Density | 5 | |
| Yarn Type | Warp | ET6-580 |
| Weft | ET6-580 | |
| Breaking Strength (N/mm²) | Warp Density | 2125N |
| Weft Density | 1820N | |
| Tensile Strength (N/mm²) | Wrap | 60 |
| Fill | 28 | |
| Tear Strength (N/mm) | Wrap | 8.5 |
| Fill | 4.5 | |
| Code | Type | Yarn (Tex) | Width (inch) | Width (m) | Weight | Density | Thickness | Thickness | |
|---|---|---|---|---|---|---|---|---|---|
| warp | weft | (g/㎡) | (inch) | (±1mm) | |||||
| 84215 | Plain | ET6-215 | ET6-215 | 40-85 | 1~2 | 300 | 8*6 | 0.02 | 0.38 |
| 2025 | Plain | ET6-430 | ET6-430 | 40-85 | 1~2 | 600 | 8*6 | 0.03 | 0.75 |
| 2125 | Plain | ET6-580 | ET6-580 | 40-85 | 1~2 | 650 | 6*5 | 0.03 | 0.8 |
| 2626 | Plain | ET9-430 | ET9-430 | 40-85 | 1~2 | 950 | 12*9 | 0.04 | 1 |
| M24 | Plain | ET9-860 | ET9-860 | 40-85 | 1~2 | 816 | 6*4 | 0.03 | 0.8 |
| M30 | Plain | ET9-860 | ET9-1290 | 40-85 | 1~2 | 1000 | 6*4 | 0.04 | 1 |
| M30B | Plain | ET9-1290 | ET9-1290 | 40-85 | 1~2 | 1000 | 5*3 | 0.04 | 1 |
| M30C | Plain | ET9-860 | ET9-1000 | 40-85 | 1~2 | 1000 | 6*5 | 0.04 | 1 |
| M35 | Plain | ET9-860 | ET9-1800 | 40-85 | 1~2 | 1200 | 6*4 | 0.05 | 1.3 |
| M35A | Plain | ET9-1290 | ET9-1290 | 40-85 | 1~2 | 1200 | 6*4 | 0.05 | 1.3 |
| M44 | Double warp&weft plain weave | ET9-860 | ET9-860 | 40-85 | 1~2 | 1500 | 12*5 | 0.08 | 2 |
| M52 | Double warp&weft plain weave | ET9-860 | ET9-1000 | 40-85 | 1~2 | 1800 | 12*5 | 0.09 | 2.3 |
| M64 | Double warp&weft plain weave | ET9-1290 | ET9-1400 | 40-85 | 1~2 | 2300 | 12*5 | 0.12 | 2 |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
