PVC (polyvinyl chloride) plastic is a lightweight, durable, and relatively cost-effective material that is easy to machine and can be formed into a variety of shapes and sizes. YILONG PVC is a rigid, non-flexible form of PVC, often used in construction and manufacturing applications. It is very durable and has good resistance to most chemicals and moisture. Featuring high tensile strength and hardness, cost-effective PVC is one of the world’s most widely used mechanical plastics. PVC has good electrical and insulation properties and performs well within a wide temperature range.

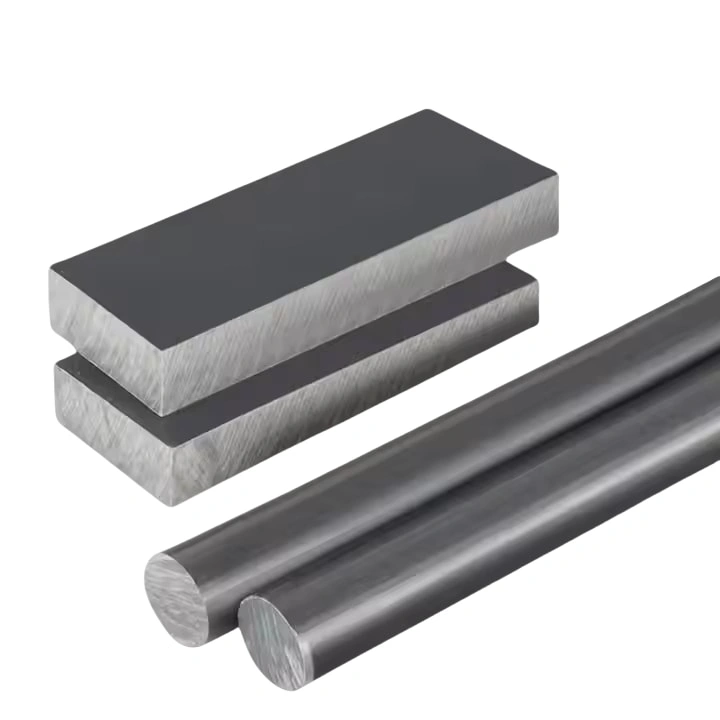

| Item | Thickness | Common Size |
|---|---|---|
| PVC Sheet | 2-30mm | 1000x2000mm, 1220x2440mm, 1300x2000mm |
| Item | Diameter | Length |
| PVC Rod | 10-300mm | 250mm, 500mm, 1000mm, 2000mm |
Excellent chemical resistance
Durable and rigid
Low notch sensitivity
Machinability
Light weight
Medium voltage electrical resistance
Works over a wide range of temperatures
Flame retardant
● Pipework Systems
● Ducting Systems
● Extraction Systems
● Chemical Tanks
● Electrical cable insulation
● Machine Covers
● Packaging
● Siding
● Fans

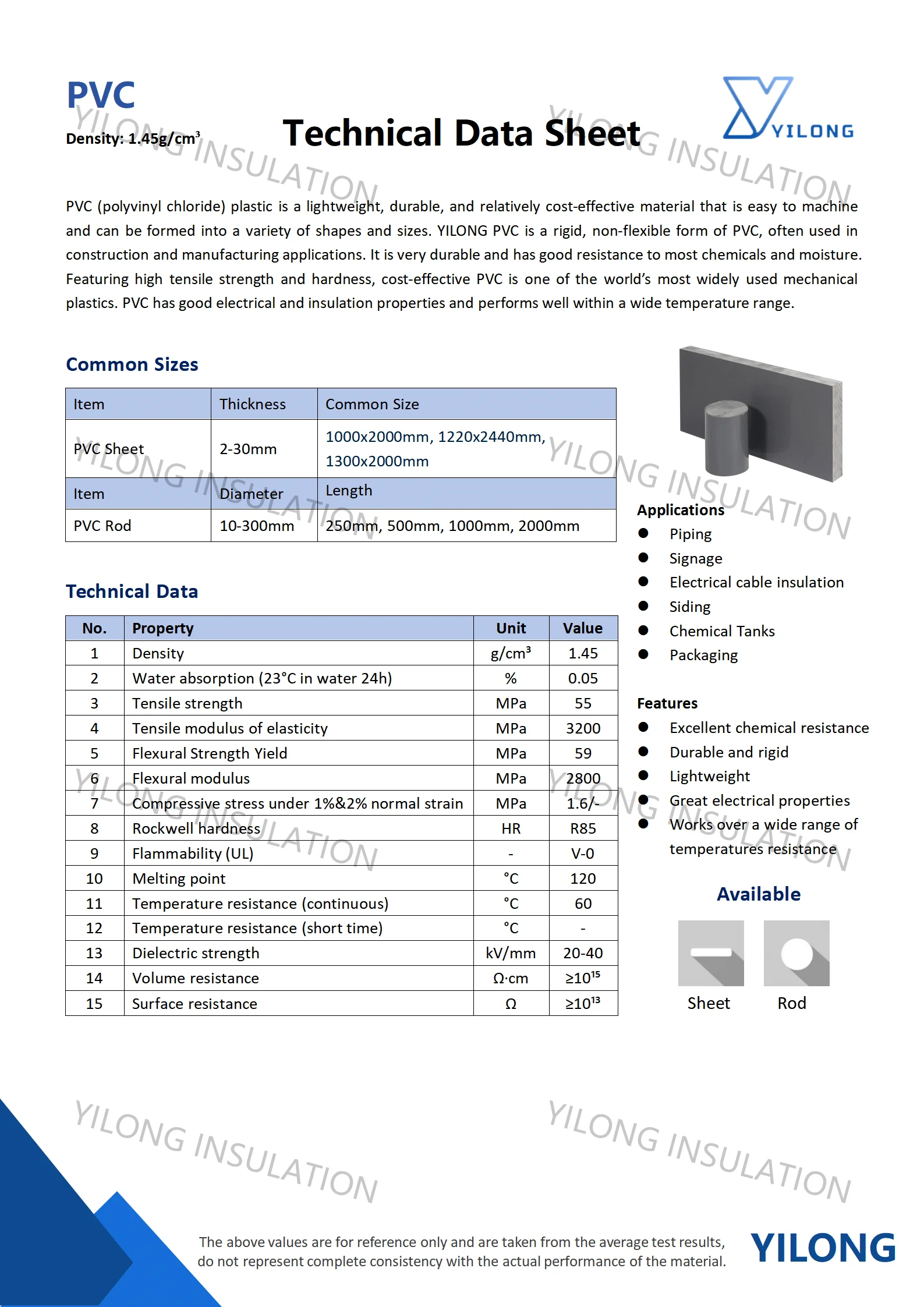

| Technical Data Sheet | ||
|---|---|---|
| Properties | Unit | Value |
| Density | g/cm³ | 1.45 |
| Water absorption (23°C in water 24h) | % | 0.05 |
| Tensile strength | MPa | 55 |
| Tensile modulus of elasticity | MPa | 3200 |
| Flextual Strength Yield | MPa | 59 |
| Flexual modulus | MPa | 2800 |
| Compressive stress under 1%&2% normal strain | MPa | 1.6/- |
| Rockwell hardness | HR | R85 |
| Flammability (UL) | - | V-0 |
| Melting point | °C | 120 |
| Temperature resistance (continuous) | °C | 60 |
| Temperature resistance (short time) | °C | - |
| Dielectric strength | kV/mm | 20-40 |
| Volume resistance | Ω·cm | ≥10¹⁵ |
| Surface resistance | Ω | ≥10¹³ |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
