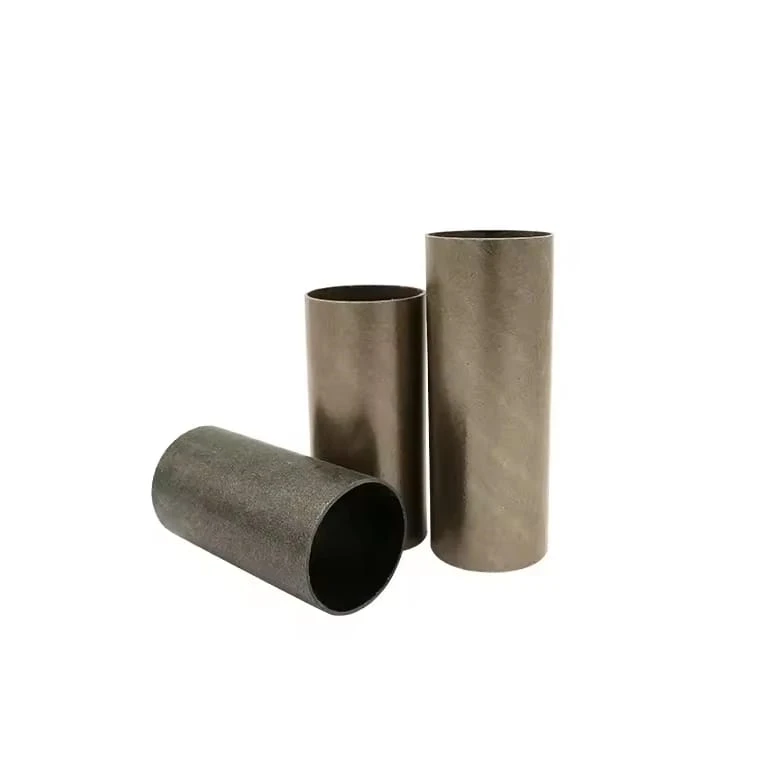

Mica Tube

Mica

Mica tubes are typically made by combining mica paper or split mica with a suitable binder, such as silicone or epoxy. This mixture is then molded into tubes through a process that enhances their structural integrity and insulating properties. The most common method involves con-volute winding, which helps in minimizing seams and maximizing durability. This design allows mica tubes to offer continuous insulation coverage, providing an effective barrier against heat, moisture, and electrical transmission.

Inquiry Contact

Download

Basic Information

Product name
Mica Tube
Types
Muscovite Mica Tubes, Phlogopite Mica Tubes, Synthetic Mica Tubes
Color
Grey, White, Gold
Density

1.7~2.25g/cm³
Inner Diameter

8~300mm
Length

10~1000mm

Features

High-temperature resistance
Corrosion resistance
Electrical insulation properties
Heat insulation performance
Low thermal expansion
Good mechanical strength

Applications

● Furnace

● Electric are furnace

● Metallurgy equipment

● Resistors

● Electric motor

● Appliances and insulation of high temperature and high dielectric strength is required.

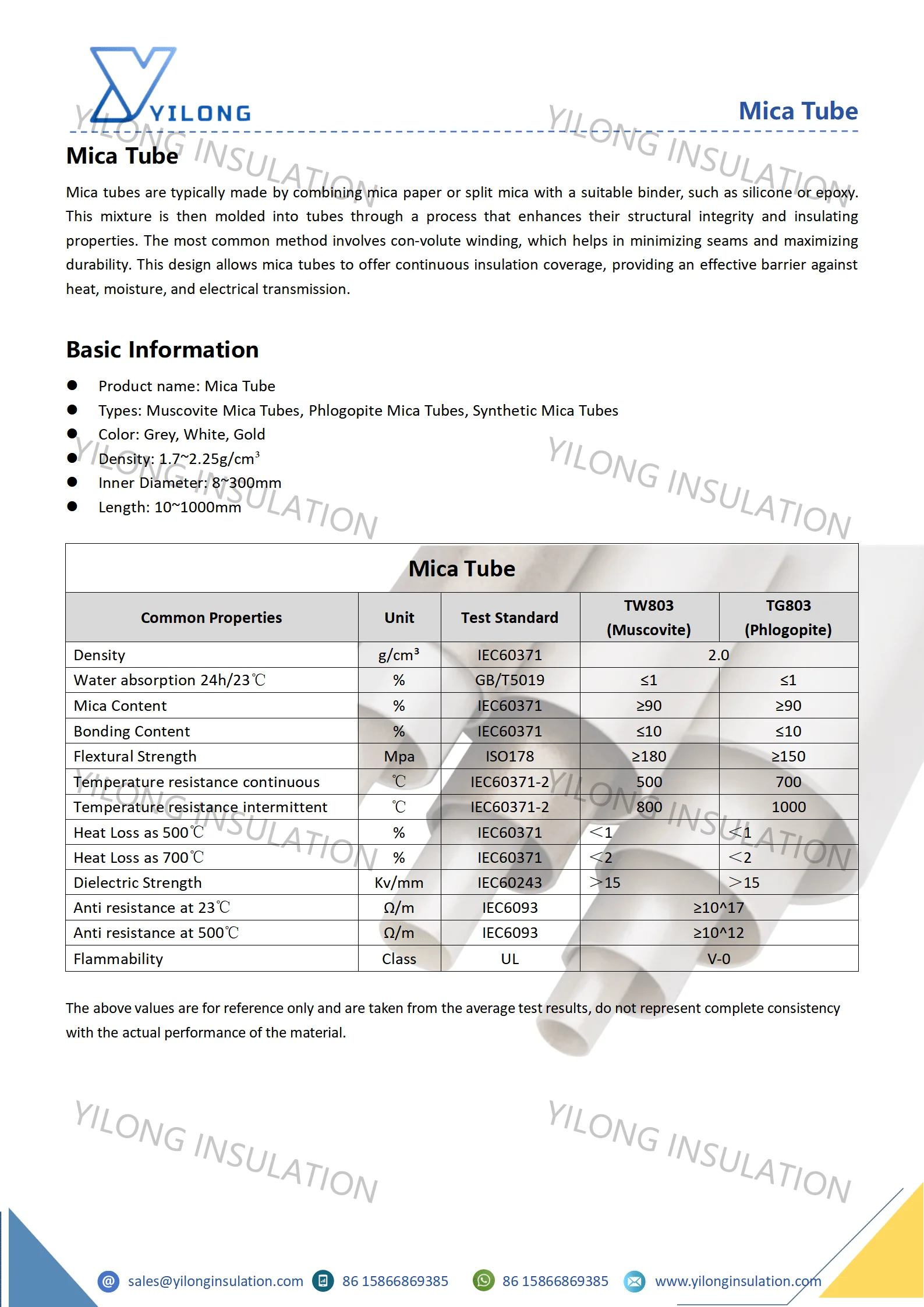

Technical Data

Mica Tube
Common Properties	Unit	Test Standard	TW803 (Muscovite)	TG803 (Phlogopite)
Density	g/cm³	IEC60371	2.0
Water absorption 24h/23℃	%	GB/T5019	≤1	≤1
Mica Content	%	IEC60371	≥90	≥90
Bonding Content	%	IEC60371	≤10	≤10
Flextural Strength	Mpa	ISO178	≥180	≥150
Temperature resistance continuous	℃	IEC60371-2	500	700
Temperature resistance intermittent	℃	IEC60371-2	800	1000
Heat Loss as 500℃	%	IEC60371	＜1	＜1
Heat Loss as 700℃	%	IEC60371	＜2	＜2
Dielectric Strength	Kv/mm	IEC60243	＞15	＞15
Anti resistance at 23℃	Ω/m	IEC6093	≥10^17
Anti resistance at 500℃	Ω/m	IEC6093	≥10^12
Flammability	Class	UL	V-0

The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.

You may also be concerned about

Do you accept customized products?

Yes, based on drawings or samples.
What certifications do your products have?

UL, RoHS, REACH, CE, ISO, etc.
What is the MOQ?

Usually 100 kg or 100 sheets, negotiable.
Can you provide samples?

Yes, common samples free, buyer pays freight.
What is the lead time?

2-4 weeks after payment.
Do you offer OEM/ODM?

Yes, including labeling and packaging.
Do you have export experience?

Yes, over 20 years.
Payment terms?

T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Do you provide CNC services?

Yes, we offer CNC machining.
Are you a factory or trading company?

Manufacturer and Exporter
