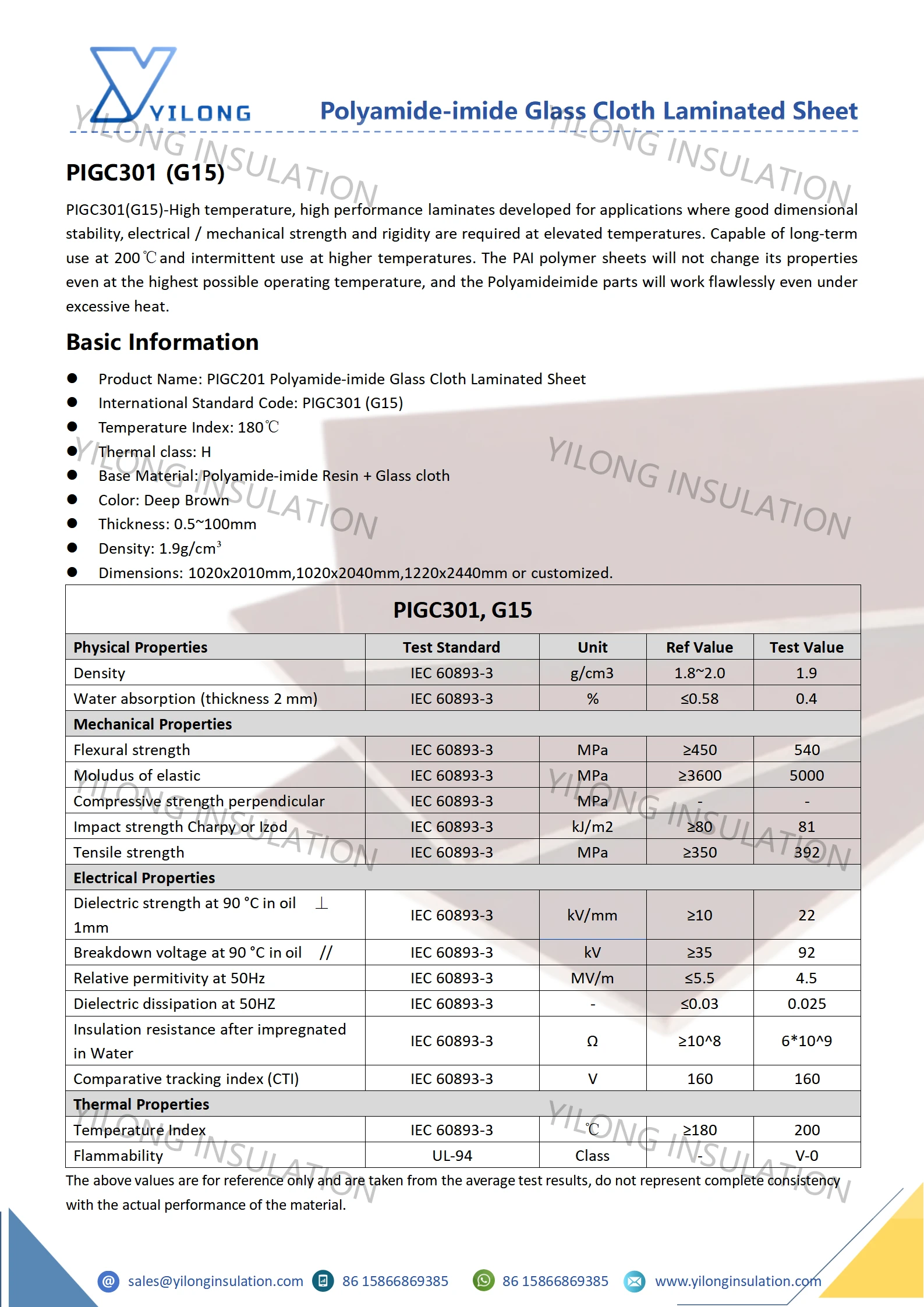

PIGC301(G15)-High temperature, high performance laminates developed for applications where good dimensional stability, electrical / mechanical strength and rigidity are required at elevated temperatures. Capable of long-term use at 200℃and intermittent use at higher temperatures. The PAI polymer sheets will not change its properties even at the highest possible operating temperature, and the Polyamideimide parts will work flawlessly even under excessive heat.

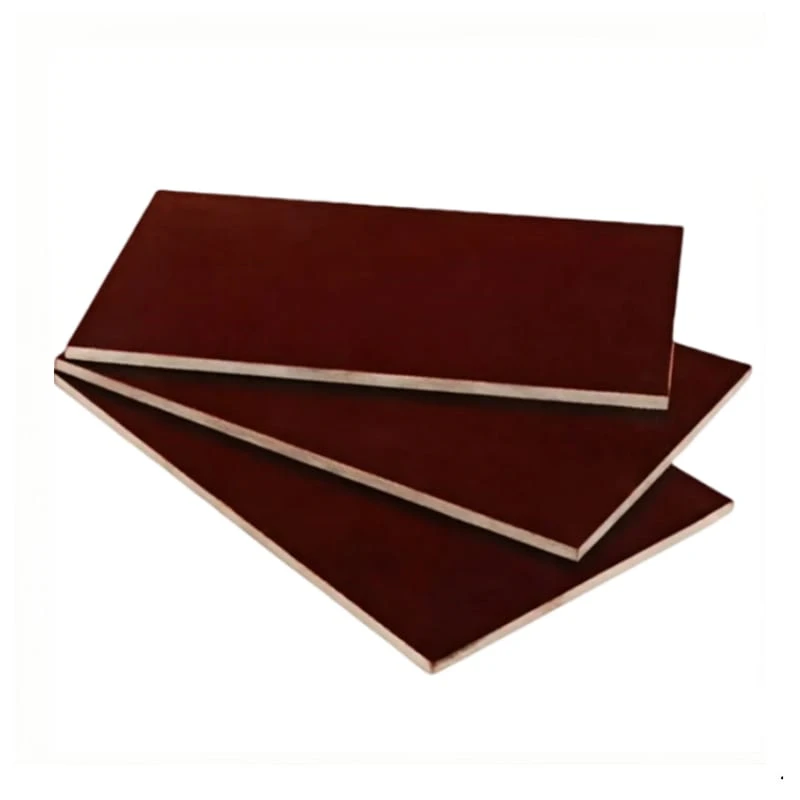

PIGC201 Polyamide-imide Glass Cloth Laminated Sheet
PIGC301 (G15)
180℃
H
Polyamide-imide Resin + Glass cloth
Deep Brown
0.5~100mm
1.9g/cm³
1020x2010mm,1020x2040mm,1220x2440mm or customized.
Temperature: Up to +200°C continuous (+250°C intermittent).
Maintains properties at elevated temperatures.
Excellent mechanical strength.
Good dimensional stablity and chemical resistance.
● High temperature electrical components
● Thermal splash barriers
● Welding jigs and fixtures
● Chemical resistant components.
● As insulating structural spares, screw processing parts
● Wear-resistant structural parts for mechanical equipment
● Used in humid conditions and transformer oil.
| PIGC301, G15 | ||||
|---|---|---|---|---|
| Physical Properties | Test Standard | Unit | Ref Value | Test Value |
| Density | IEC 60893-3 | g/cm³ | 1.8~2.0 | 1.9 |
| Water absorption (thickness 2 mm) | IEC 60893-3 | % | ≤0.58 | 0.4 |
| Mechanical Properties | ||||
| Flexural strength | IEC 60893-3 | MPa | ≥450 | 540 |
| Moludus of elastic | IEC 60893-3 | MPa | ≥3600 | 5000 |
| Compressive strength perpendicular | IEC 60893-3 | MPa | - | - |
| Impact strength Charpy or Izod | IEC 60893-3 | kJ/m² | ≥80 | 81 |
| Tensile strength | IEC 60893-3 | MPa | ≥350 | 392 |
| Electrical Properties | ||||
| Dielectric strength at 90 °C in oil ⊥ 1mm | IEC 60893-3 | kV/mm | ≥10 | 22 |
| Breakdown voltage at 90 °C in oil // | IEC 60893-3 | kV | ≥35 | 92 |
| Relative permitivity at 50Hz | IEC 60893-3 | MV/m | ≤5.5 | 4.5 |
| Dielectric dissipation at 50HZ | IEC 60893-3 | - | ≤0.03 | 0.025 |
| Insulation resistance after impregnated in Water | IEC 60893-3 | Ω | ≥10^8 | 6*10^9 |
| Comparative tracking index (CTI) | IEC 60893-3 | V | 160 | 160 |
| Thermal Properties | ||||
| Temperature Index | IEC 60893-3 | ℃ | ≥180 | 200 |
| Flammability | UL-94 | Class | - | V-0 |
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
