Mica Tape-Phlogopite

Mica

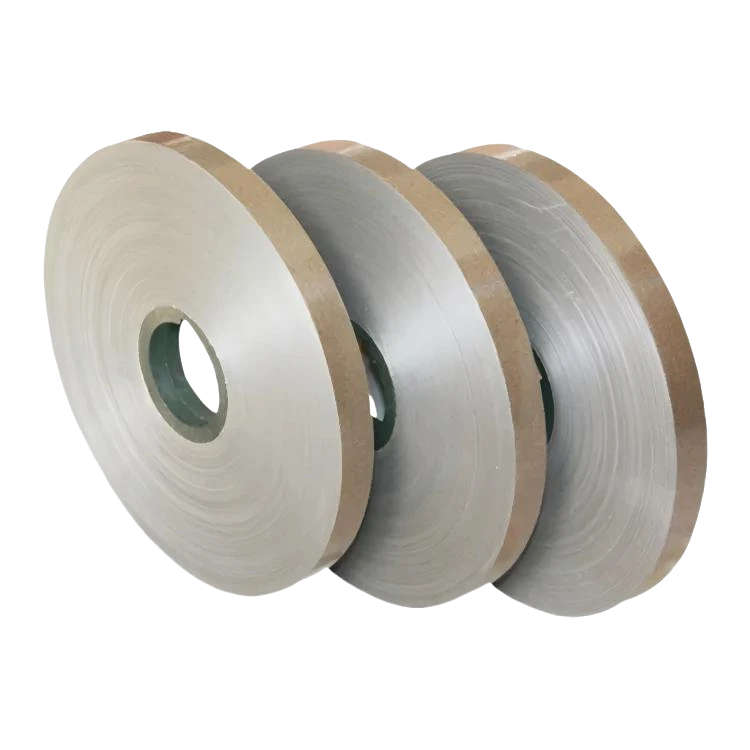

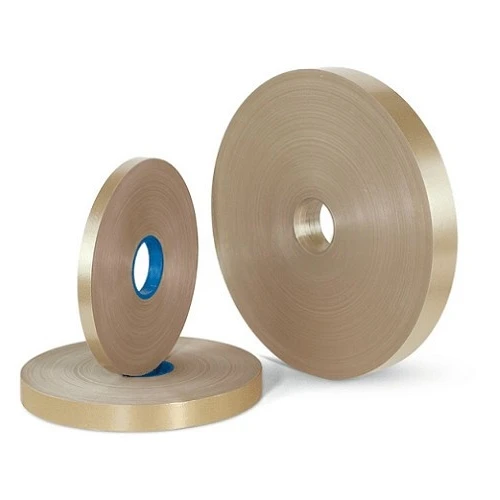

Phlogopite mica tape is the Most Popular cable protection insulator material. Phlogopite Mica Tape for fire-resistant cable is insulation material made of superior phlogopite mica paper, impregnated with high-quality silicon resin and backed with reinforcing material, which can resist high voltage and especially high temperature.
Phlogopite mica tape usually used as insulation material at flame temperatures of 750℃ to 850℃.
Synthetic mica tape usually used as insulation material at flame temperatures of 950℃ to 1000℃.
Calcined mica tape usually used as insulation material at flame temperatures of 850℃ to 950℃.

Inquiry Contact

Download

Basic Information

Thickness
0.10mm-0.20mm
Width
4.5mm-1000mm
Length
500m, 1000m, 2000m
Standard cores

52mm, 54mm, 76mm, 120mm.

Features

Excellent insulating property
Resistant high temperature 750℃
Flexible, high-tensile suit for high-speed cable manufacturing
Eco-friendly, free of toxic gases in a fire
Fire-resistant for high-quality cable

Applications

● Applied to ordinary or high temperature fire-resistant wire & cables.

● High-rise buildings

● Underground railways

● Large power stations

● Important industrial and mining enterprises

● Other places related to fire safety and fire rescues

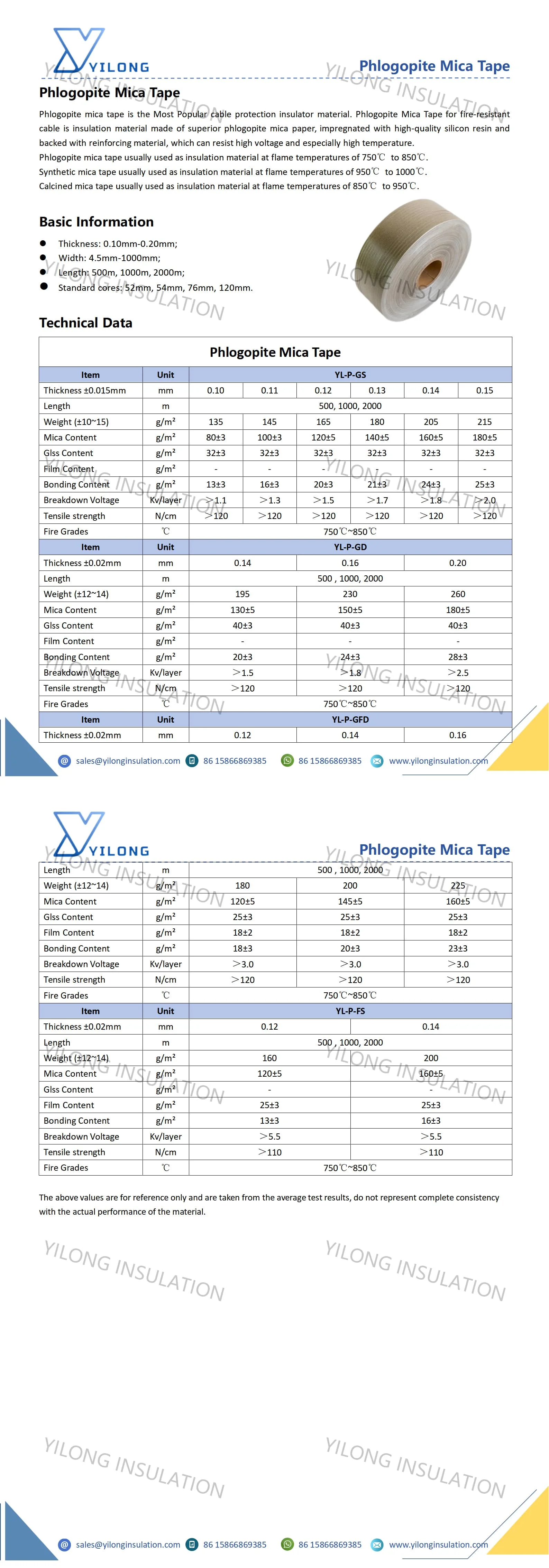

Technical Data

Phlogopite Mica Tape
Item	Unit	YL-P-GS
Thickness ±0.015mm	mm	0.10	0.11	0.12	0.13	0.14	0.15
Length	m	500, 1000, 2000
Weight (±10~15)	g/m²	135	145	165	180	205	215
Mica Content	g/m²	80±3	100±3	120±5	140±5	160±5	180±5
Glss Content	g/m²	32±3	32±3	32±3	32±3	32±3	32±3
Film Content	g/m²	-	-	-	-	-	-
Bonding Content	g/m²	13±3	16±3	20±3	21±3	24±3	25±3
Breakdown Voltage	Kv/layer	＞1.1	＞1.3	＞1.5	＞1.7	＞1.8	＞2.0
Tensile strength	N/cm	＞120	＞120	＞120	＞120	＞120	＞120
Fire Grades	℃	750℃~850℃
Item	Unit	YL-P-GD
Thickness ±0.02mm	mm	0.14		0.16		0.20
Length	m	500 , 1000, 2000
Weight (±12~14)	g/m²	195		230		260
Mica Content	g/m²	130±5		150±5		180±5
Glss Content	g/m²	40±3		40±3		40±3
Film Content	g/m²	-		-		-
Bonding Content	g/m²	20±3		24±3		28±3
Breakdown Voltage	Kv/layer	＞1.5		＞1.8		＞2.5
Tensile strength	N/cm	＞120		＞120		＞120
Fire Grades	℃	750℃~850℃
Item	Unit	YL-P-GFD
Thickness ±0.02mm	mm	0.12		0.14		0.16
Length	m	500 , 1000, 2000
Weight (±12~14)	g/m²	180		200		225
Mica Content	g/m²	120±5		145±5		160±5
Glss Content	g/m²	25±3		25±3		25±3
Film Content	g/m²	18±2		18±2		18±2
Bonding Content	g/m²	18±3		20±3		23±3
Breakdown Voltage	Kv/layer	＞3.0		＞3.0		＞3.0
Tensile strength	N/cm	＞120		＞120		＞120
Fire Grades	℃	750℃~850℃
Item	Unit	YL-P-FS
Thickness ±0.02mm	mm	0.12			0.14
Length	m	500 , 1000, 2000
Weight (±12~14)	g/m²	160			200
Mica Content	g/m²	120±5			160±5
Glss Content	g/m²	-			-
Film Content	g/m²	25±3			25±3
Bonding Content	g/m²	13±3			16±3
Breakdown Voltage	Kv/layer	＞5.5			＞5.5
Tensile strength	N/cm	＞110			＞110
Fire Grades	℃	750℃~850℃

The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
