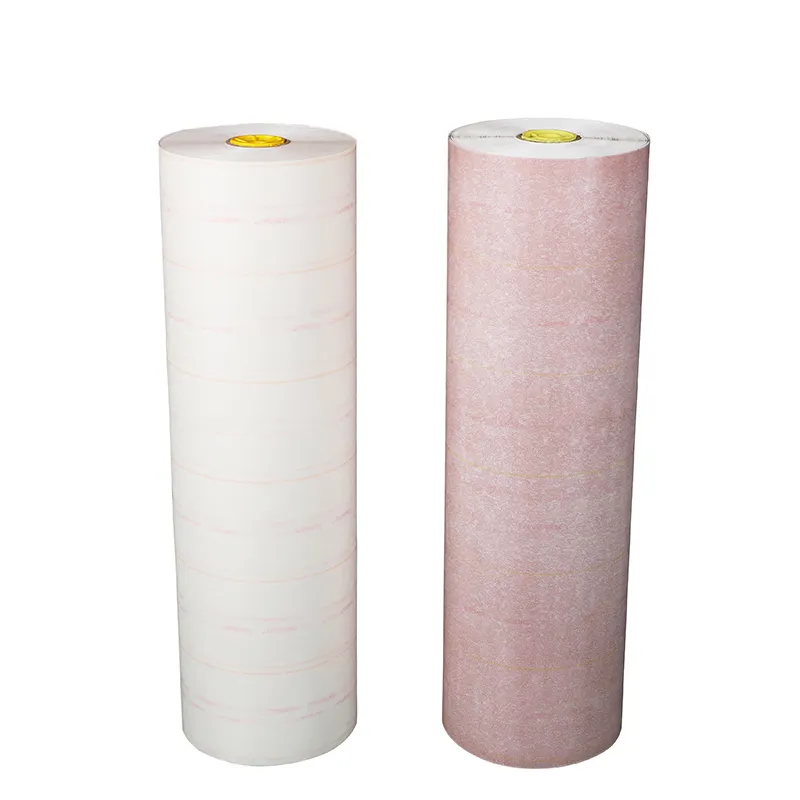

NMN 6640 is a three-layer insulation material with polyester film between NOMEX paper, offering good heat resistance and strength for Class F/H applications. NHN 6650 uses polyimide film for higher thermal stability, making it ideal for Class H (180°C) insulation.
Nomex paper+Polyester film+Nomex paper (Class F/H)
NHN 6650
Aramid paper+Polyester film+Aramid paper (Class F)
Aramid paper+Polyimide film+Aramid paper (Class F)
0.15-0.35mm, Width: 980(mm)
Excellent heat resistance, dielectric property and mechanical strength.
Good cutting and overload resistance, high stiffness.
Good compatibility with insulation varnish.
As slot, interturn and liner insulation for H-grade motors and electric appliances.
● They can be used for slot insulation, liner insulation and turn-to-turn insulation in stator windings in motors and electrical appliances.
● Besides, it is also used for interlayer insulation, end seal insulation, and liner insulation of dry-type transformers.

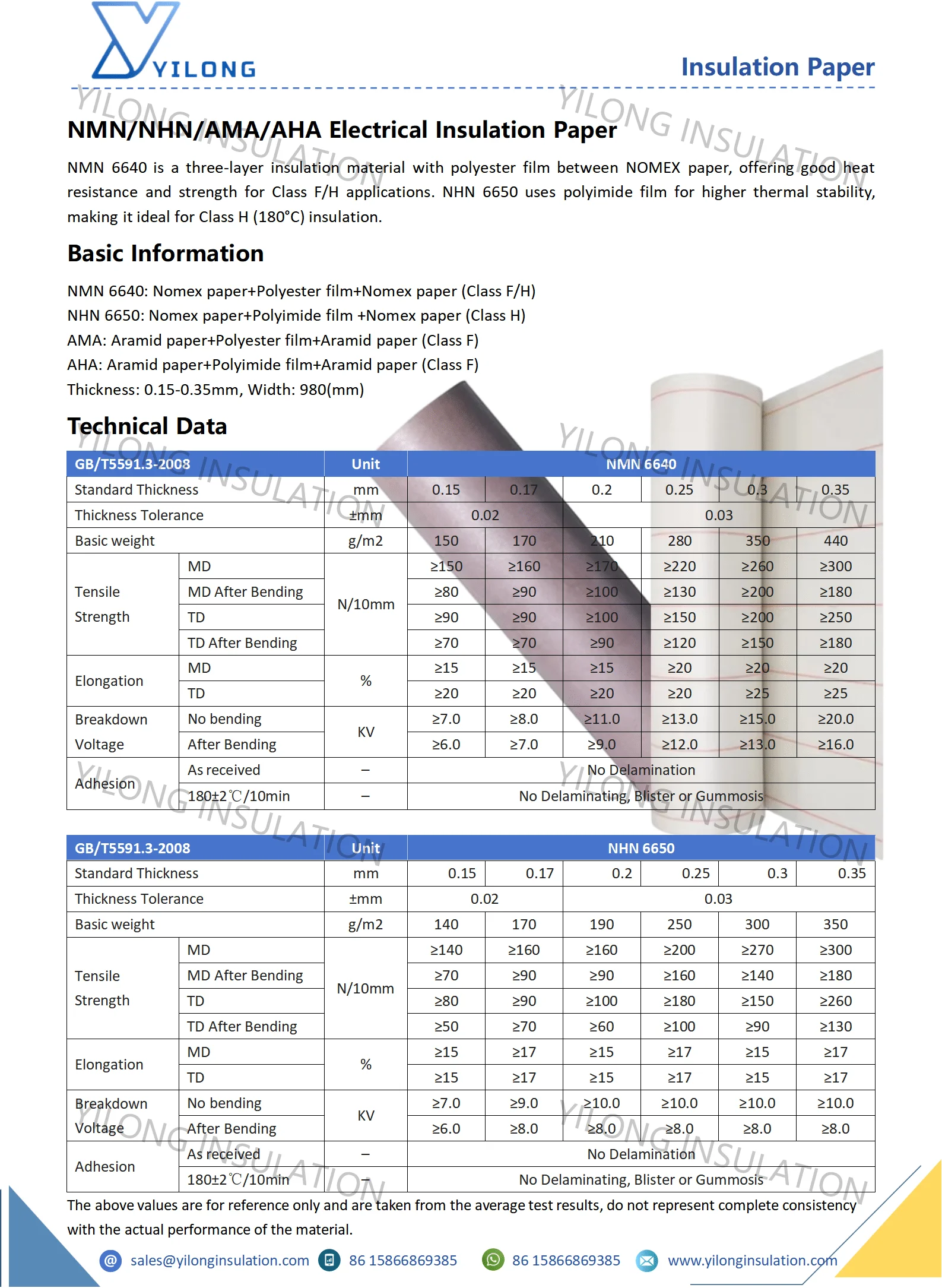

| NMN/NHN/AMA/AHA Electrical Insulation Paper | ||||||||
|---|---|---|---|---|---|---|---|---|
| GB/T5591.3-2008 | Unit | NMN 6640 | ||||||
| Standard Thickness | mm | 0.15 | 0.17 | 0.2 | 0.25 | 0.3 | 0.35 | |
| Thickness Tolerance | ±mm | 0.02 | 0.03 | |||||
| Basic weight | g/m² | 150 | 170 | 210 | 280 | 350 | 440 | |
| Tensile Strength | MD | N/10mm | ≥150 | ≥160 | ≥170 | ≥220 | ≥260 | ≥300 |
| MD After Bending | ≥80 | ≥90 | ≥100 | ≥130 | ≥200 | ≥180 | ||
| TD | ≥90 | ≥90 | ≥100 | ≥150 | ≥200 | ≥250 | ||
| TD After Bending | ≥70 | ≥70 | ≥90 | ≥120 | ≥150 | ≥180 | ||
| Elongation | MD | % | ≥15 | ≥15 | ≥15 | ≥20 | ≥20 | ≥20 |
| TD | ≥20 | ≥20 | ≥20 | ≥20 | ≥25 | ≥25 | ||
| Breakdown Voltage |
No bending | KV | ≥7.0 | ≥8.0 | ≥11.0 | ≥13.0 | ≥15.0 | ≥20.0 |
| After Bending | ≥6.0 | ≥7.0 | ≥9.0 | ≥12.0 | ≥13.0 | ≥16.0 | ||
| Adhesion | As received | – | No Delamination | |||||
| 180±2℃/10min | – | No Delaminating, Blister or Gummosis | ||||||
| GB/T5591.3-2008 | Unit | NHN 6650 | ||||||
| Standard Thickness | mm | 0.15 | 0.17 | 0.2 | 0.25 | 0.3 | 0.35 | |
| Thickness Tolerance | ±mm | 0.02 | 0.03 | |||||
| Basic weight | g/m² | 140 | 170 | 190 | 250 | 300 | 350 | |
| Tensile Strength | MD | N/10mm | ≥140 | ≥160 | ≥160 | ≥200 | ≥270 | ≥300 |
| MD After Bending | ≥70 | ≥90 | ≥90 | ≥160 | ≥140 | ≥180 | ||
| TD | ≥80 | ≥90 | ≥100 | ≥180 | ≥150 | ≥260 | ||
| TD After Bending | ≥50 | ≥70 | ≥60 | ≥100 | ≥90 | ≥130 | ||
| Elongation | MD | % | ≥15 | ≥17 | ≥15 | ≥17 | ≥15 | ≥17 |
| TD | ≥15 | ≥17 | ≥15 | ≥17 | ≥15 | ≥17 | ||
| Breakdown Voltage |
No bending | KV | ≥7.0 | ≥9.0 | ≥10.0 | ≥10.0 | ≥10.0 | ≥10.0 |
| After Bending | ≥6.0 | ≥8.0 | ≥8.0 | ≥8.0 | ≥8.0 | ≥8.0 | ||
| Adhesion | As received | – | No Delamination | |||||
| 180±2℃/10min | – | No Delaminating, Blister or Gummosis | ||||||
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
