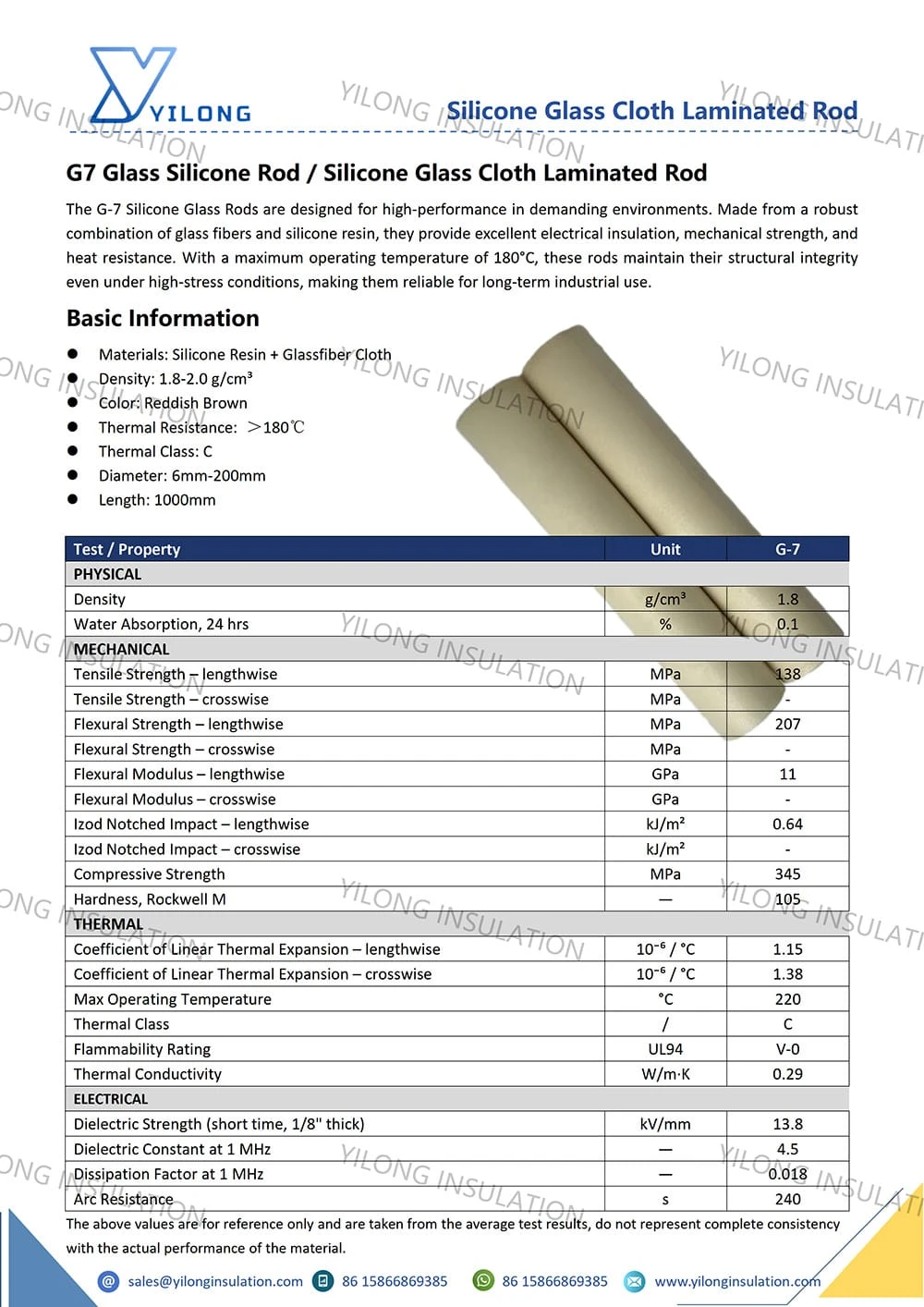

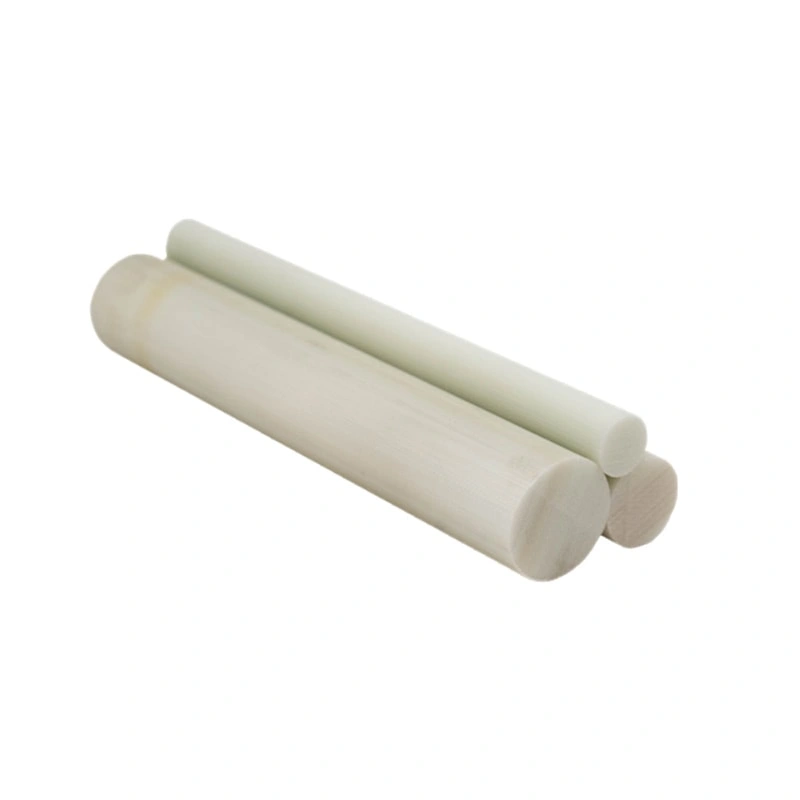

The G-7 Silicone Glass Rods are designed for high-performance in demanding environments. Made from a robust combination of glass fibers and silicone resin, they provide excellent electrical insulation, mechanical strength, and heat resistance. With a maximum operating temperature of 180°C, these rods maintain their structural integrity even under high-stress conditions, making them reliable for long-term industrial use.
YILONG
Silicone Resin + Glassfiber Cloth
1.8-2.0 g/cm³
Reddish Brown
＞180℃
C
6mm-200mm
1000mm
Pallet, Wooden Box
Outstanding electrical insulation performance under both dry and humid conditions
Exceptional thermal stability and high arc resistance for demanding environments
Self-extinguishing and flame retardant, meeting safety standards
High dielectric strength with minimal electrical losses at elevated temperatures
Composed of glass cloth reinforced silicone with natural cream-to-white coloration
● Electrical insulation for transformers, switchgear, and other high-voltage equipment
● Thermal and electrical insulation in heating elements, appliances, and industrial equipment
● High-temperature electronic components where low dielectric loss is critical
● Electrical systems operating under both humid and dry conditions
● Applications requiring reliable insulation and flame-retardant performance in harsh environments
| Test / Property | Unit | G-7 |
| PHYSICAL | ||
| Density | g/cm³ | 1.8 |
| Water Absorption, 24 hrs | % | 0.1 |
| MECHANICAL | ||
| Tensile Strength – lengthwise | MPa | 138 |
| Tensile Strength – crosswise | MPa | - |
| Flexural Strength – lengthwise | MPa | 207 |
| Flexural Strength – crosswise | MPa | - |
| Flexural Modulus – lengthwise | GPa | 11 |
| Flexural Modulus – crosswise | GPa | - |
| Izod Notched Impact – lengthwise | kJ/m² | 0.64 |
| Izod Notched Impact – crosswise | kJ/m² | - |
| Compressive Strength | MPa | 345 |
| Hardness, Rockwell M | — | 105 |
| THERMAL | ||
| Coefficient of Linear Thermal Expansion – lengthwise | 10⁻⁶ / °C | 1.15 |
| Coefficient of Linear Thermal Expansion – crosswise | 10⁻⁶ / °C | 1.38 |
| Max Operating Temperature | °C | 220 |
| Thermal Class | / | C |
| Flammability Rating | UL94 | V-0 |
| Thermal Conductivity | W/m·K | 0.29 |
| ELECTRICAL | ||
| Dielectric Strength (short time, 1/8" thick) | kV/mm | 13.8 |
| Dielectric Constant at 1 MHz | — | 4.5 |
| Dissipation Factor at 1 MHz | — | 0.018 |
| Arc Resistance | s | 240 |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
