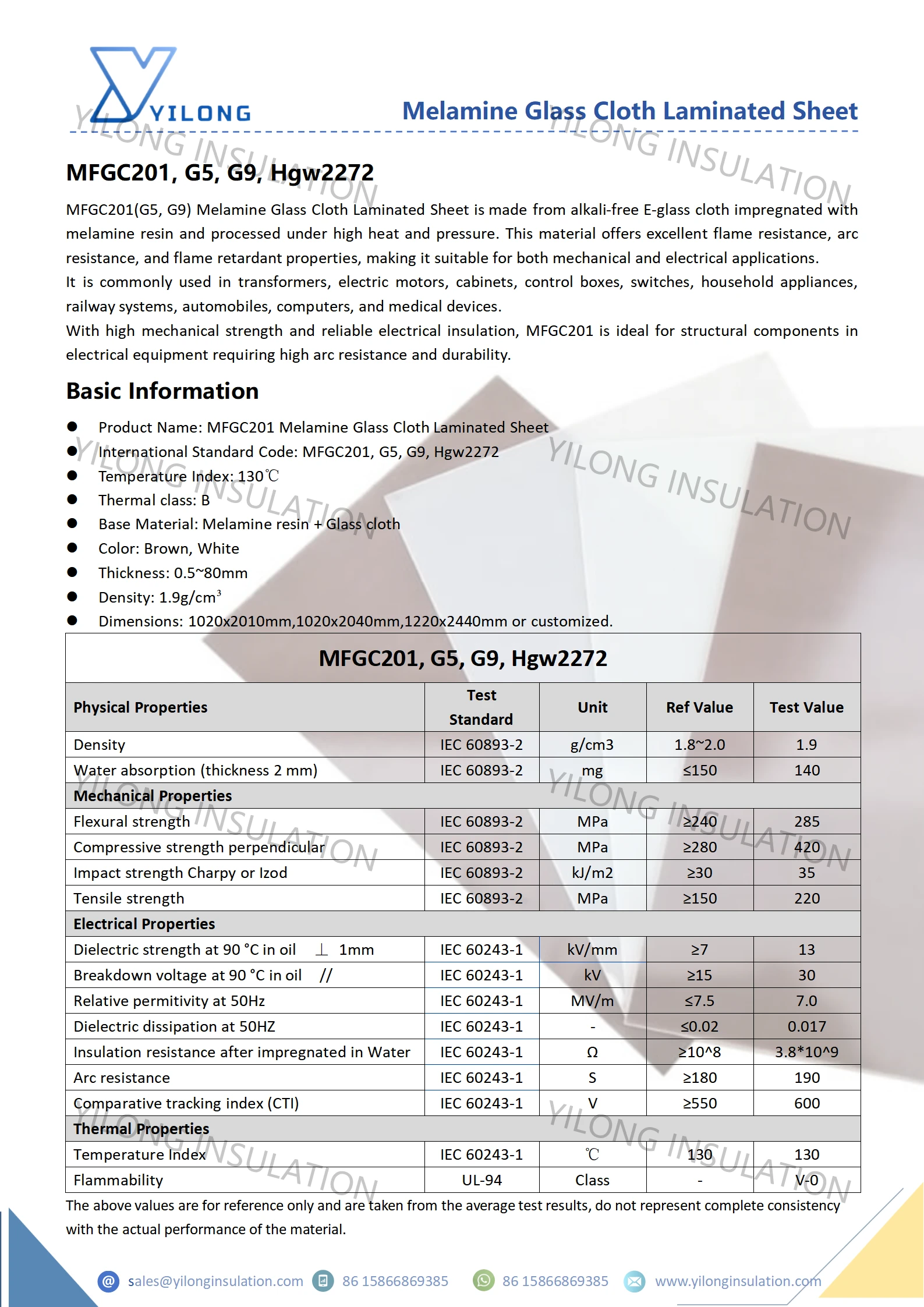

MFGC201(G5, G9) Melamine Glass Cloth Laminated Sheet is made from alkali-free E-glass cloth impregnated with melamine resin and processed under high heat and pressure. This material offers excellent flame resistance, arc resistance, and flame retardant properties, making it suitable for both mechanical and electrical applications.
It is commonly used in transformers, electric motors, cabinets, control boxes, switches, household appliances, railway systems, automobiles, computers, and medical devices.
With high mechanical strength and reliable electrical insulation, MFGC201 is ideal for structural components in electrical equipment requiring high arc resistance and durability.

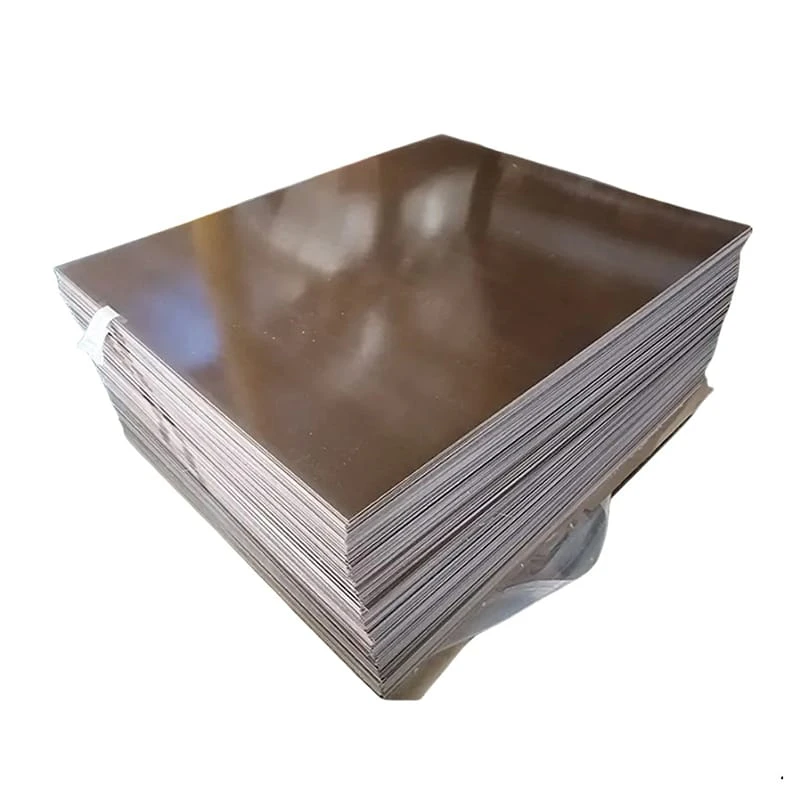

MFGC201 Melamine Glass Cloth Laminated Sheet
MFGC201, G5, G9, Hgw2272
130℃
B
Melamine resin + Glass cloth
Brown, White
0.5~80mm
1.9g/cm³
1020x2010mm,1020x2040mm,1220x2440mm or customized.
Excellent electrical properties
Excellent mechanical properties
Heat resistant
Outstanding arc resistance
Strength under wet conditions
Good dimensional stability
Hardest laminate grade
Stiffest laminate grade
● Flare bases
● Yokes
● Motor wedges
● Terminal boards
● Mounts for switches
● Armature end insulation
● Navy switch panels
| MFGC201, G5, G9, Hgw2272 | ||||
|---|---|---|---|---|
| Physical Properties | Test Standard | Unit | Ref Value | Test Value |
| Density | IEC 60893-2 | g/cm³ | 1.8~2.0 | 1.9 |
| Water absorption (thickness 2 mm) | IEC 60893-2 | mg | ≤150 | 140 |
| Mechanical Properties | ||||
| Flexural strength | IEC 60893-2 | MPa | ≥240 | 285 |
| Compressive strength perpendicular | IEC 60893-2 | MPa | ≥280 | 420 |
| Impact strength Charpy or Izod | IEC 60893-2 | kJ/m² | ≥30 | 35 |
| Tensile strength | IEC 60893-2 | MPa | ≥150 | 220 |
| Electrical Properties | ||||
| Dielectric strength at 90 °C in oil ⊥ 1mm | IEC 60243-1 | kV/mm | ≥7 | 13 |
| Breakdown voltage at 90 °C in oil // | IEC 60243-1 | kV | ≥15 | 30 |
| Relative permitivity at 50Hz | IEC 60243-1 | MV/m | ≤7.5 | 7 |
| Dielectric dissipation at 50HZ | IEC 60243-1 | - | ≤0.02 | 0.017 |
| Insulation resistance after impregnated in Water | IEC 60243-1 | Ω | ≥10^8 | 3.8*10^9 |
| Arc resistance | IEC 60243-1 | S | ≥180 | 190 |
| Comparative tracking index (CTI) | IEC 60243-1 | V | ≥550 | 600 |
| Thermal Properties | ||||
| Temperature Index | IEC 60243-1 | ℃ | 130 | 130 |
| Flammability | UL-94 | Class | - | V-0 |
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
