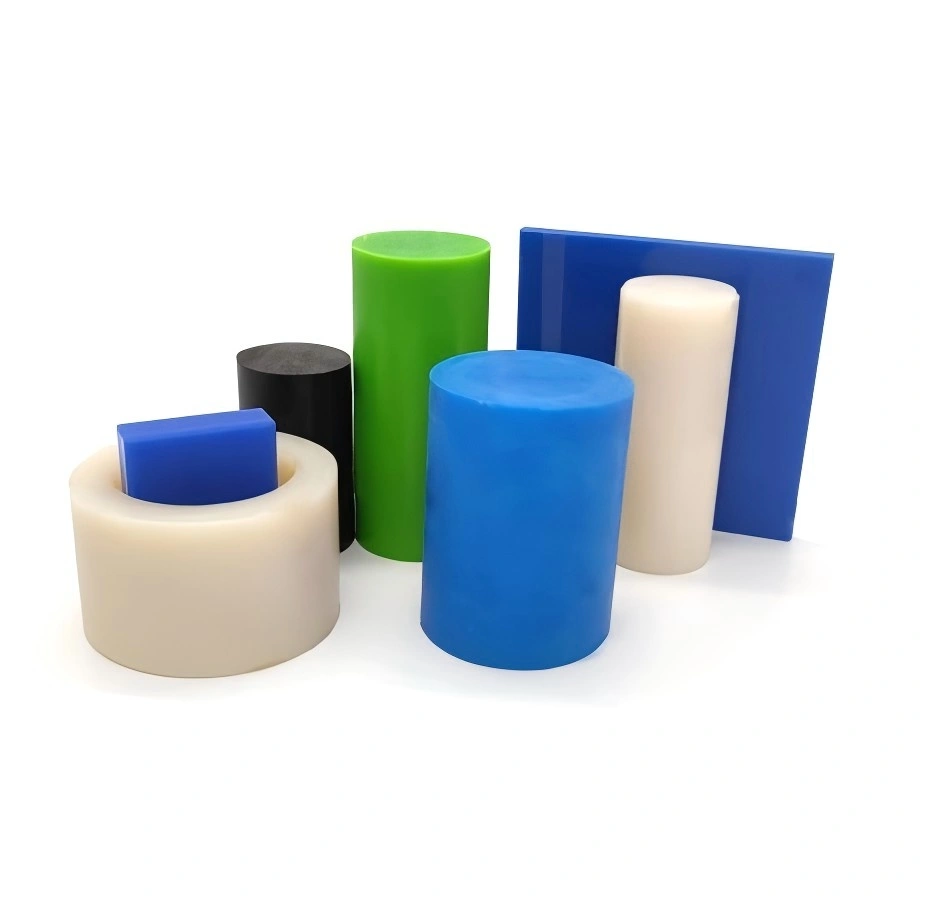

HDPE (high density polyethylene) is available as sheet or rod stock for applications that require greater strength and stiffness than LDPE. HDPE with an embossed surface is widely used as a cutting board material in restaurants and food processing plants. HDPE is easy to weld using thermoplastic welding equipment and is an excellent choice for fabricated water tanks and chemical tanks that must be assembled by thermoplastic welding.
| Item | Thickness | Common Size |
|---|---|---|
| HDPE Sheet | 1-150mm | 1000x1000mm, 1000x2000mm |
| Item | Diameter | Length |
| HDPE Rod | 15-500mm | 1000mm, 2000mm, 3000mm |
Outstanding processing parameters
High chemical resistance
High strength and rigidity
Resists moisture, acids, odors, and mildew
Low coefficient of friction
Extremely versatile
Light weight
UV stabilised
Some grade approved for contact with food
● Pumps
● Gaskets
● Piping systems
● Medical applications
● Tank construction
● Chemical containment
● Food conainers
● Decks & cabinetry
● Boating seats, walkways
● Cutting boards
● Components for food industry
| Technical Data Sheet | ||
|---|---|---|
| Properties | Unit | Value |
| Modulus of elasticity (tensile test) 1mm/min | MPa | 700 |
| Elongation at break | % | 600 |
| Tensile strength at break | MPa | 32 |
| Shore hardness | Shore D | 75 |
| Service temperature Short term | °C | 110 |
| Service temperature Long term | °C | 90 |
| Thermal conductivity | W/(K*m) | 0.4 |
| Surface resistance | Ω | 10^15 |
| Specific volume resistance | Ω*cm | 10^16 |
| Dielectric strength at 23℃ 0.13mm | kV/mm | 79 |
| Water absorption 24h (23°C) | % | ≤0.2 |
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
