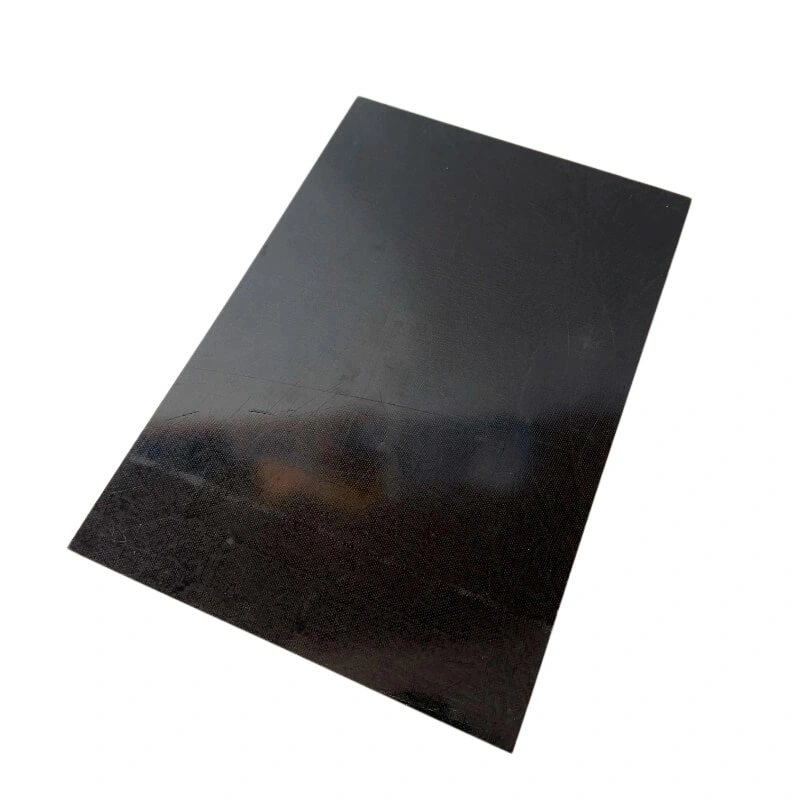

Wear-Resistant Graphite-Filled Phenolic Cloth Sheets are engineered by combining high-quality phenolic resin with graphite particles, creating a composite material with superior electrical, mechanical, and thermal properties. The graphite filler reduces friction and enhances wear resistance, making these sheets ideal for high-performance applications involving sliding or high-wear contact. They also provide excellent dimensional stability, thermal stability, and resistance to moisture, ensuring reliable performance in demanding industrial and electrical environments.
YILONG
Phenolic Resin + Cotton Canvas + Graphite
1.8~2.0 g/cm³
Black
0.5-100mm
1020x1220mm, 1020x2040mm, 1220x2440mm
Pallet, Wooden Box
Enhanced wear resistance and reduced friction for sliding or high-wear applications.
Excellent electrical conductivity and insulation performance.
High thermal stability, maintaining mechanical integrity at elevated temperatures.
Superior dimensional stability under mechanical and thermal stress.
Resistant to moisture and environmental factors.
Good machinability for precision components in industrial and electrical applications.
Durable and long-lasting performance under demanding conditions.
● Sliding and bearing surfaces in industrial machinery.
● Electrical insulation and structural components in high-voltage equipment.
● High-temperature environments requiring wear-resistant materials.
● Mechanical parts subjected to friction, wear, or thermal stress.
● Precision components in industrial, electrical, and mechanical sectors.

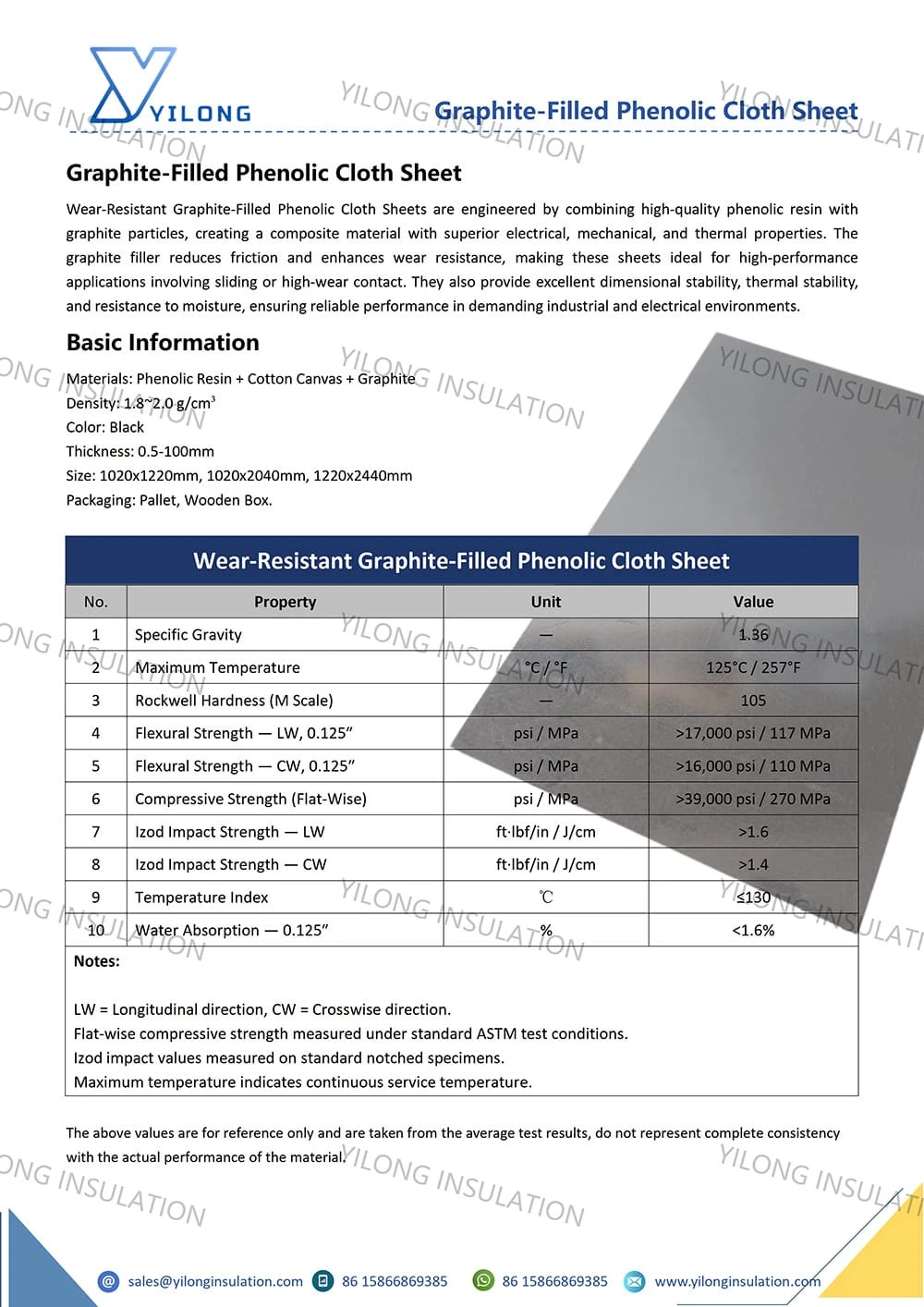

| Wear-Resistant Graphite-Filled Phenolic Cloth Sheet | |||
| No. | Property | Unit | Value |
| 1 | Specific Gravity | — | 1.36 |
| 2 | Maximum Temperature | °C / °F | 125°C / 257°F |
| 3 | Rockwell Hardness (M Scale) | — | 105 |
| 4 | Flexural Strength — LW, 0.125″ | psi / MPa | >17,000 psi / 117 MPa |
| 5 | Flexural Strength — CW, 0.125″ | psi / MPa | >16,000 psi / 110 MPa |
| 6 | Compressive Strength (Flat-Wise) | psi / MPa | >39,000 psi / 270 MPa |
| 7 | Izod Impact Strength — LW | ft·lbf/in / J/cm | >1.6 |
| 8 | Izod Impact Strength — CW | ft·lbf/in / J/cm | >1.4 |
| 9 | Temperature Index | ℃ | ≤130 |
| 10 | Water Absorption — 0.125″ | % | <1.6% |
| Notes: LW = Longitudinal direction, CW = Crosswise direction. Flat-wise compressive strength measured under standard ASTM test conditions. Izod impact values measured on standard notched specimens. Maximum temperature indicates continuous service temperature. | |||
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
Manufacturer and Exporter
