UPGM205 (GPO-5) is a special laminated material based on halogen-free, unsaturated polyester resin in connection with a reinforcement of cut glass and glass fibre.
UPGM201: Good electrical properties under high humidity, good mechanical properties at medium temperature.
UPGM202: Good mechanical properties at medium temperature, excellent flame retardant properties.
UPGM203: Similar to UPGM202, improved arc resistance and tracking resistance
UPGM204: Compared with UPGM-203, it has better mechanical strength and better heat resistance level, suitable for more rigid service conditions, but not flame retardant.
UPGM205: It has not only high mechanical and electrical strength at room temperature but also excellent heat resistance. It also has good arc resistance, tracking resistance, low-smoke, non-toxic and flame-retardant properties.

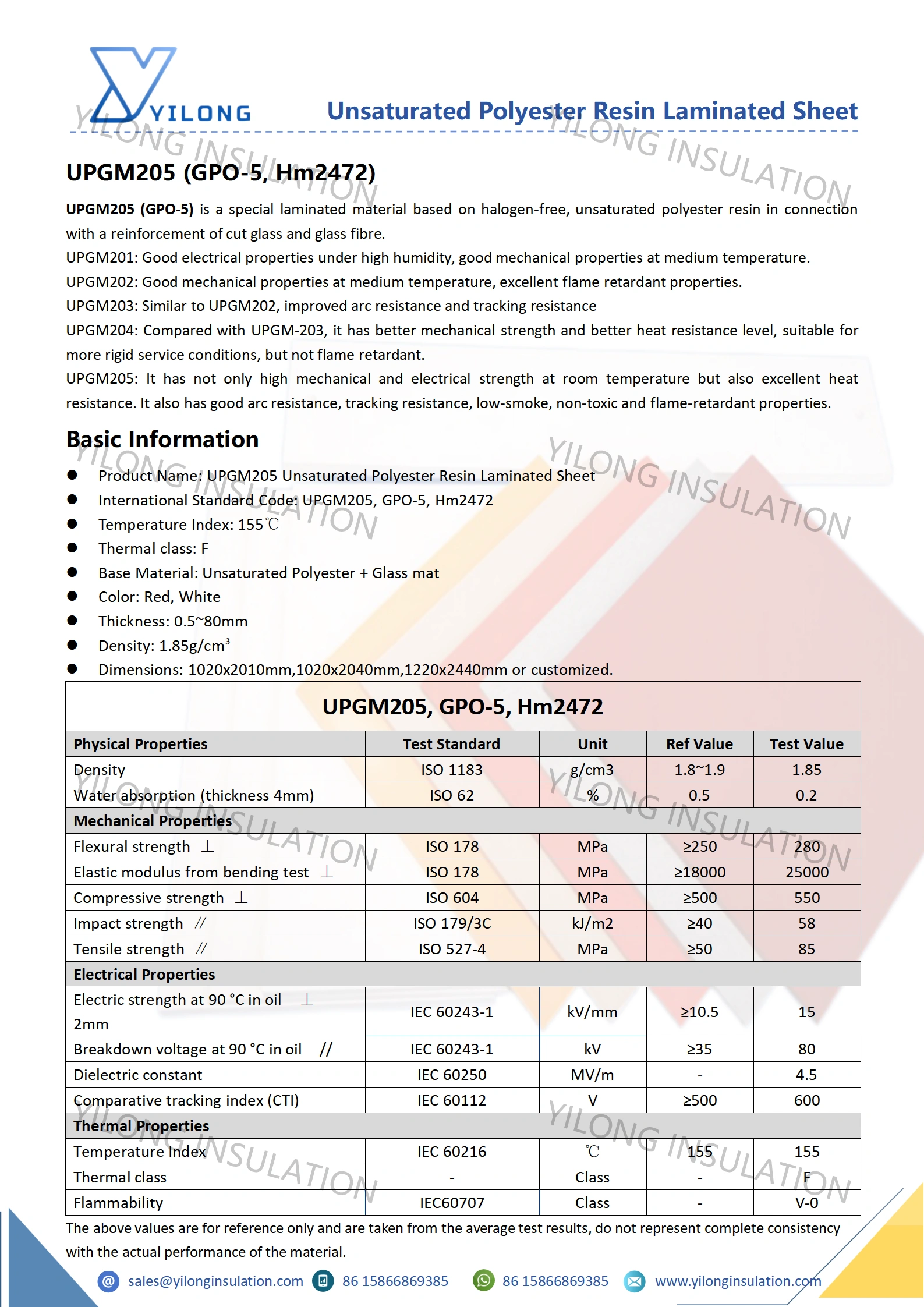

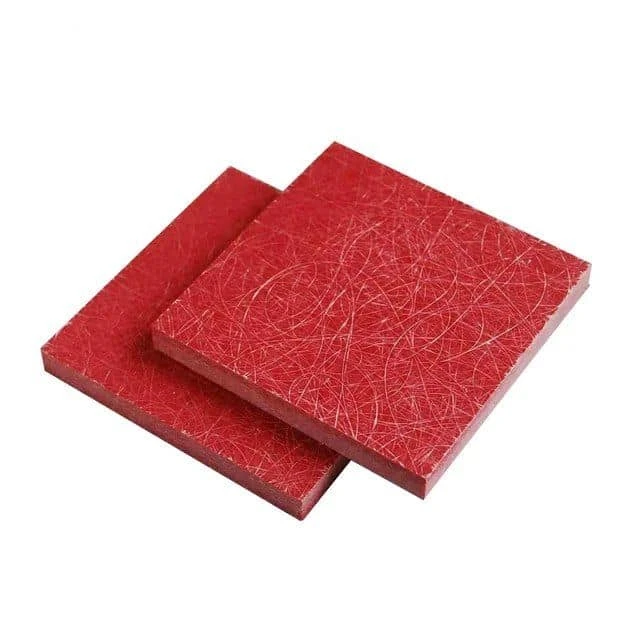

UPGM205 Unsaturated Polyester Resin Laminated Sheet
UPGM205, GPO-5, Hm2472
155℃
F
Unsaturated Polyester + Glass mat
Red, White
0.5~80mm
1.85g/cm³
1020x2010mm,1020x2040mm,1220x2440mm or customized.
Higher mechanical properties compared with GPO3 (better tensile and bending strength at high temperature)
Low water absorption
Excellent arc resistance
Excellent electric leakage resistance
Excellent heat resistance
Excellent fire resistance
Low-smoke, halogen-free product
Possess RoHS and Reach Certificate
● Used in breaker: safety baffle of frame type breaker, safety shield, spacing liner, interphase partition, etc.
● Used in plastic-case breaker: interphase partition, arc extinguishing chamber isolating plate, etc.
● Used in motor product: motor armature parts, movable cover plate, slot wedge stator, fixed gasket, thin gasket, carbon brush holder, etc.
● Used in switchgear: front end, back end, upper end, bottom end, interphase partition in the partition system
● Used as arc resistant structural parts in electrical cabinets
| UPGM205, GPO-5, Hm2472 | ||||
|---|---|---|---|---|
| Physical Properties | Test Standard | Unit | Ref Value | Test Value |
| Density | ISO 1183 | g/cm³ | 1.8~1.9 | 1.85 |
| Water absorption (thickness 4mm) | ISO 62 | % | 0.5 | 0.2 |
| Mechanical Properties | ||||
| Flexural strength ⊥ | ISO 178 | MPa | ≥250 | 280 |
| Elastic modulus from bending test ⊥ | ISO 178 | MPa | ≥18000 | 25000 |
| Compressive strength ⊥ | ISO 604 | MPa | ≥500 | 550 |
| Impact strength ∥ | ISO 179/3C | kJ/m² | ≥40 | 58 |
| Tensile strength ∥ | ISO 527-4 | MPa | ≥50 | 80 |
| Electrical Properties | ||||
| Electric strength at 90 °C in oil ⊥ | IEC 60243-1 | kV/mm | ≥10.5 | 15 |
| Breakdown voltage at 90 °C in oil // | IEC 60243-1 | kV | ≥35 | 80 |
| Dielectric constant | IEC 60250 | MV/m | - | 4.5 |
| Comparative tracking index (CTI) | IEC 60112 | V | ≥500 | 600 |
| Thermal Properties | ||||
| Temperature Index | IEC 60216 | ℃ | 155 | 155 |
| Thermal class | - | Class | - | F |
| Flammability | IEC60707 | Class | - | V-0 |
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
