Phenolic paper laminated sheet is made of cellulose fiber paper impregnated with phenolic resin by processing under heat and pressure. Phenolic paper sheet can be processed into all kinds of insulation parts. The products are widely used for transformers, electric motors, cabinets, control boxes, electric switches, household appliances, railway, automobile, computer, medical appliance and etc.
PFCP201 sheet: Mechanical performance is superior to other PFCP items, with lower electrical performance in normal humidity, suitable for using as insulation structural parts of hot blunt processing, mechanical and low voltage electrical equipment.

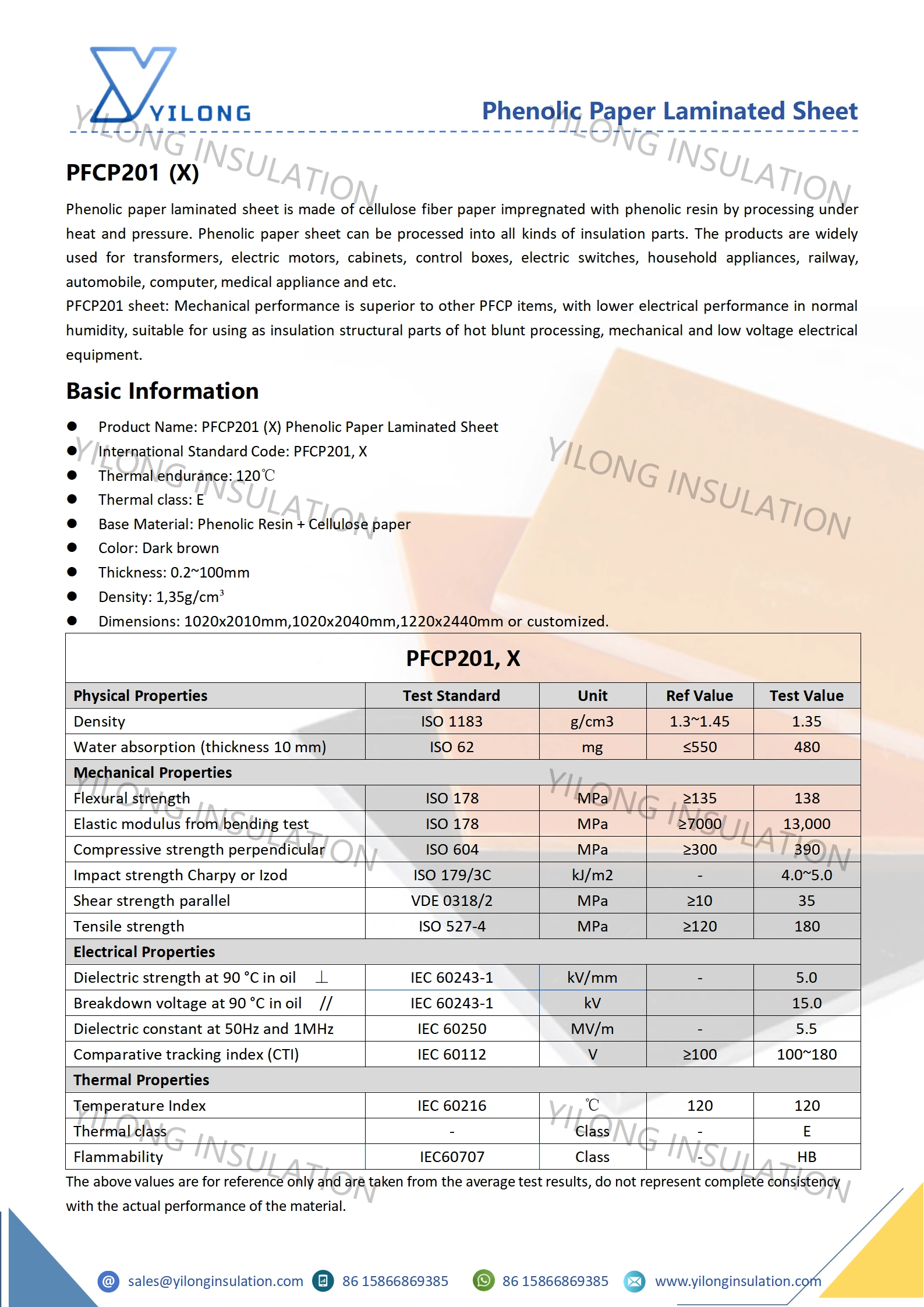

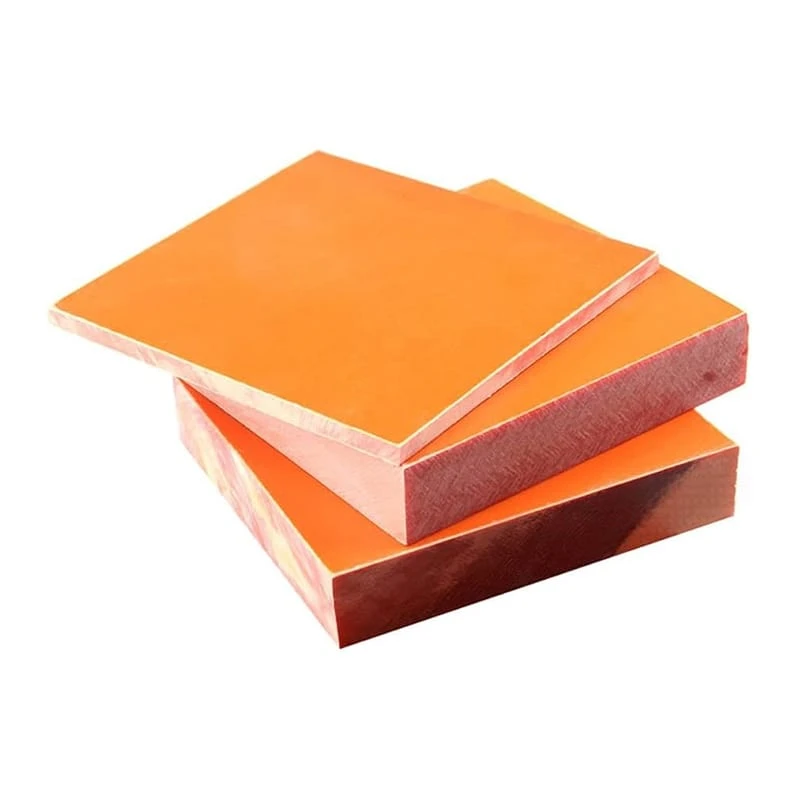

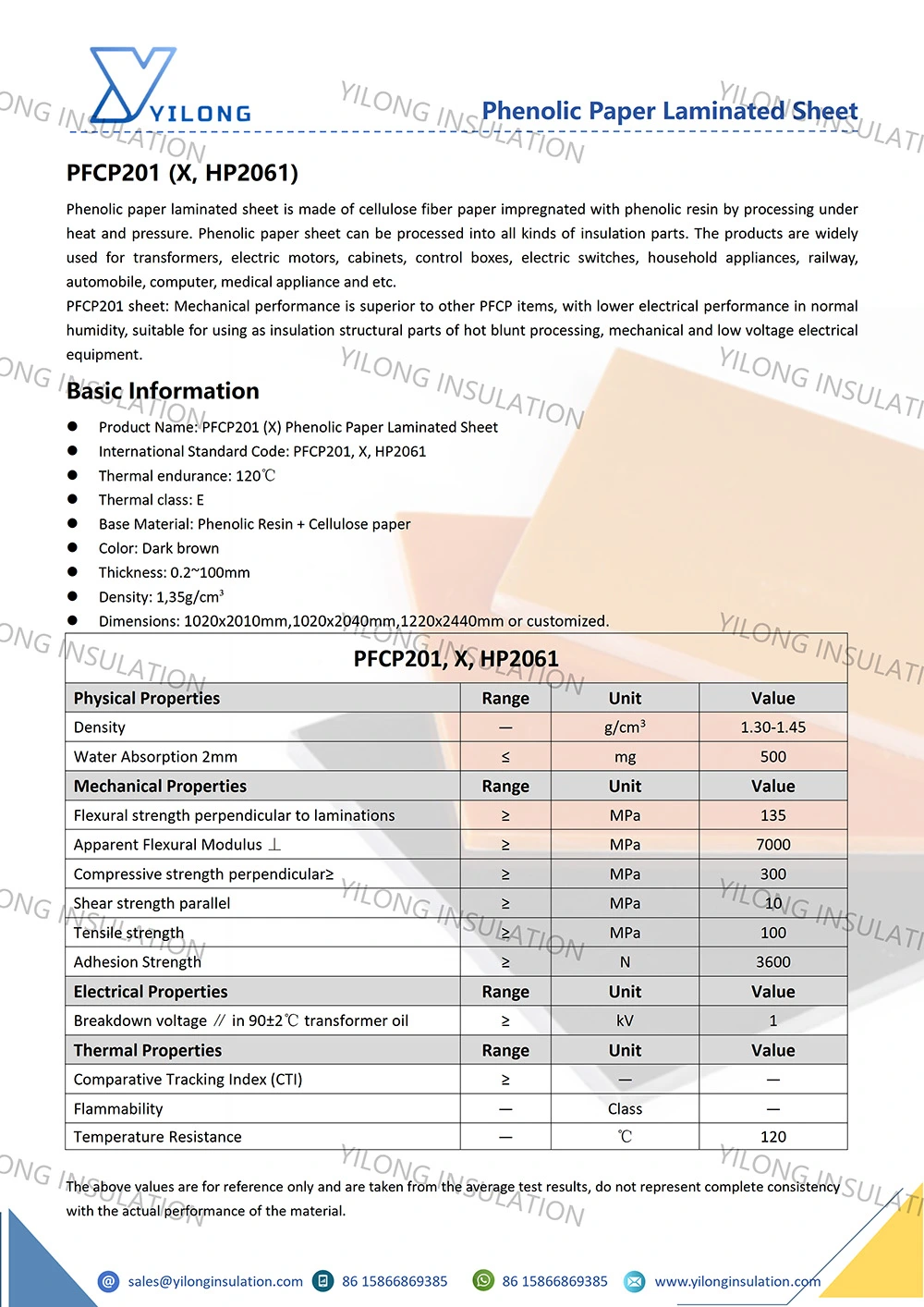

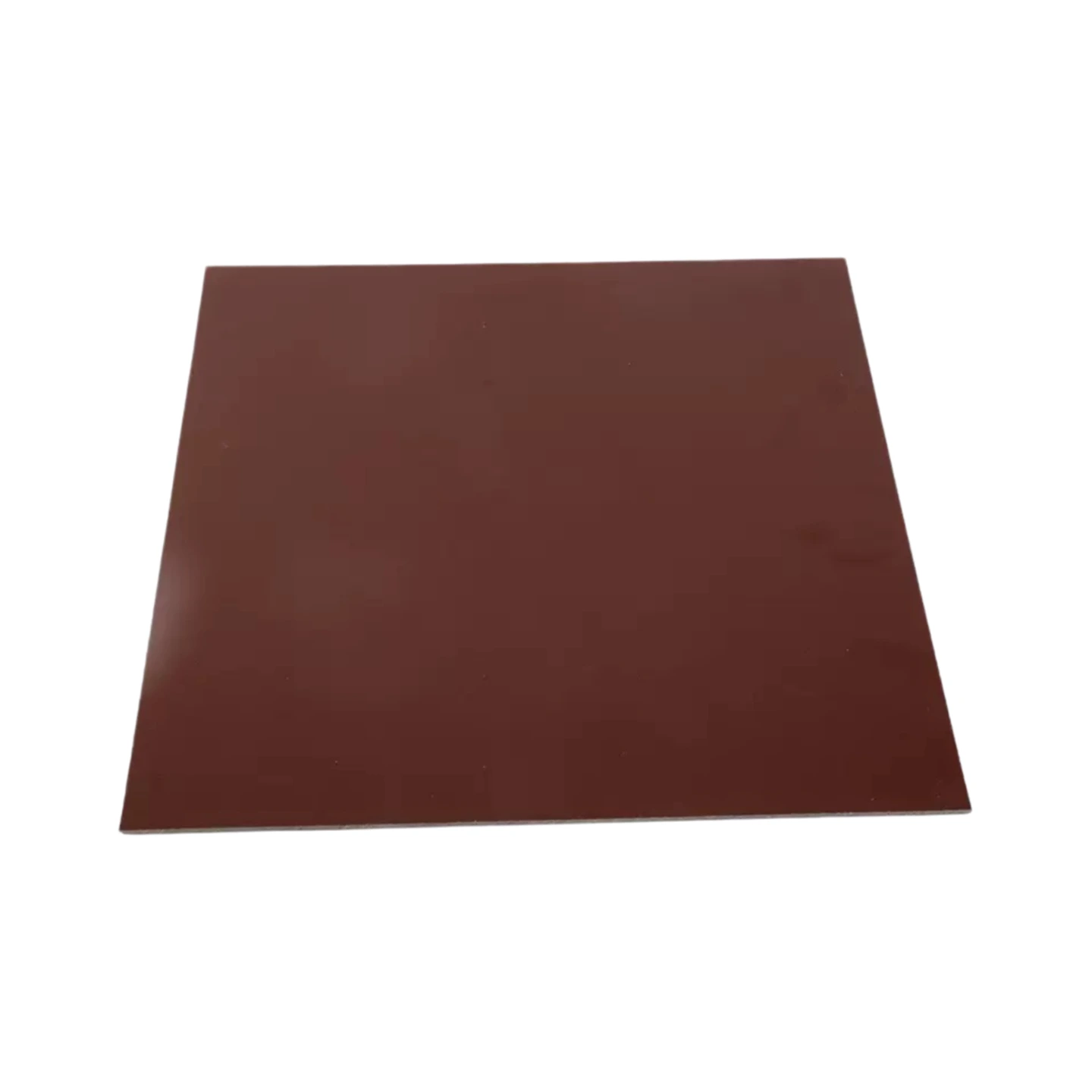

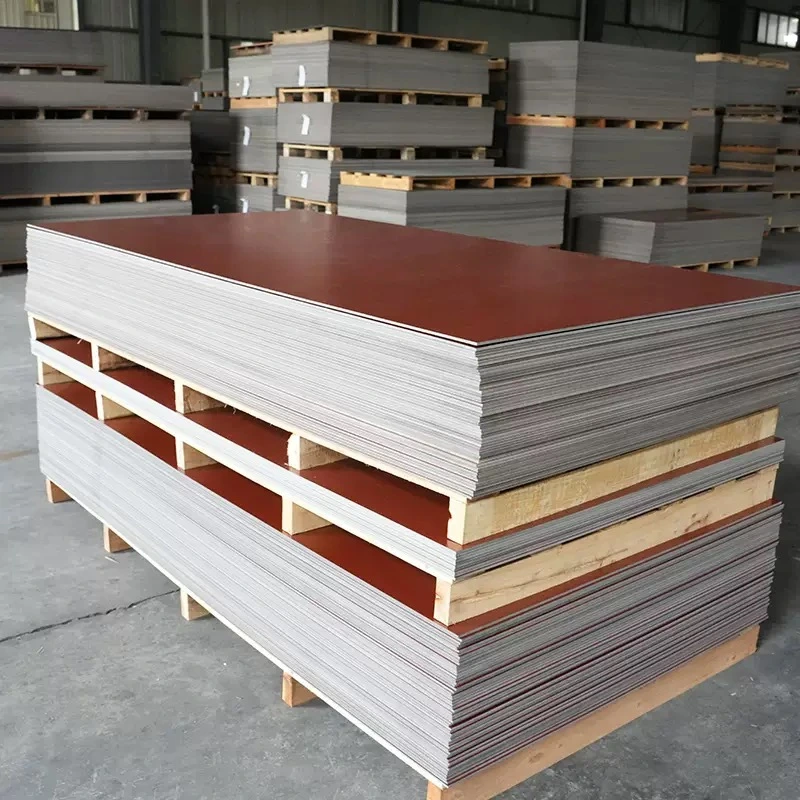

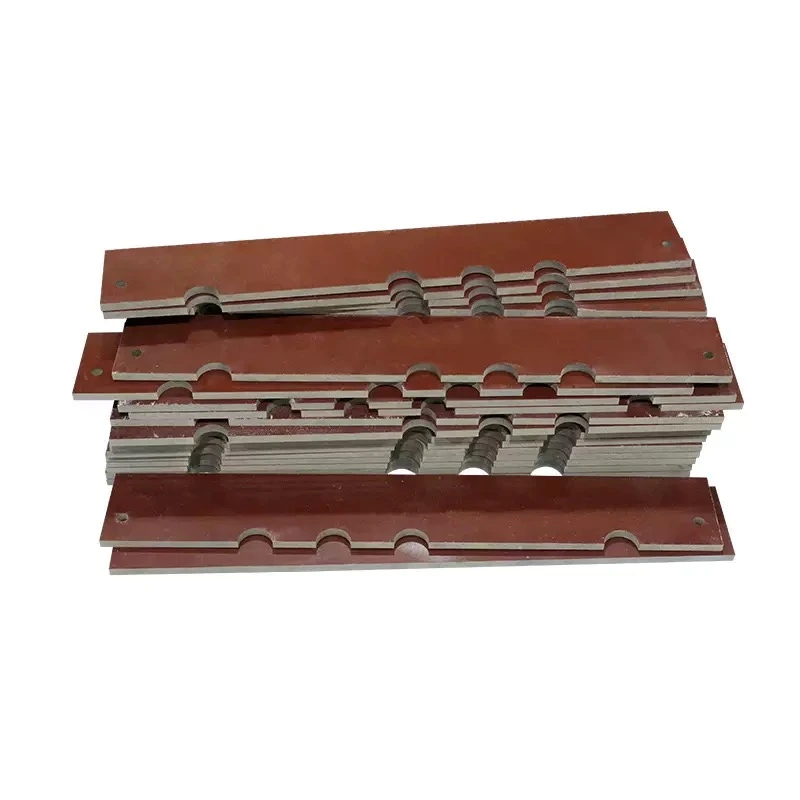

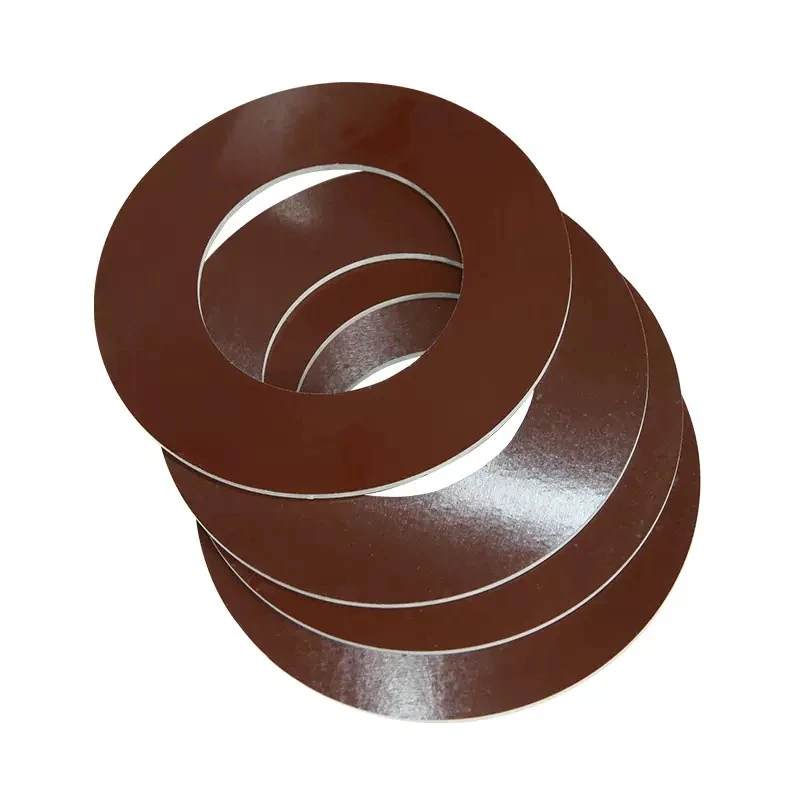

PFCP201 (X) Phenolic Paper Laminated Sheet
PFCP201, X
120℃
E
Phenolic Resin + Cellulose paper
Dark brown
0.2~100mm
1.35g/cm³
1020x2010mm,1020x2040mm,1220x2440mm or customized.
Good electrical insulation properties.
High mechanical strength.
Good dimensional stability.
Mechanical performance is superior to other PFCP
Lower electrical performance in normal humidity
● Suitable for used as insulation structural parts of hot blunt processing
● Mechanical and low voltage electrical equipment
● It can also be used in the oil of transformer.
| PFCP201, X | ||||
|---|---|---|---|---|
| Physical Properties | Test Standard | Unit | Ref Value | Test Value |
| Density | ISO 1183 | g/cm³ | 1.3~1.45 | 1.35 |
| Water absorption (thickness 3.0 mm) | ISO 62 | mg | ≤550 | 480 |
| Mechanical Properties | ||||
| Flexural strength | ISO 178 | MPa | ≥135 | 138 |
| Elastic modulus from bending test | ISO 178 | MPa | ≥7000 | 7000~13000 |
| Compressive strength perpendicular | ISO 604 | MPa | ≥300 | 390 |
| Impact strength Charpy or Izod | ISO 179/3C | kJ/m² | - | 4.0~5.0 |
| Shear strength parallel | VDE 0318/2 | MPa | ≥10 | 35 |
| Tensile strength | ISO 527-4 | MPa | ≥120 | 180 |
| Electrical Properties | ||||
| Dielectric strength at 90 °C in oil ⊥ | IEC 60243-1 | kV/mm | - | 5 |
| Breakdown voltage at 90 °C in oil // | IEC 60243-1 | kV | 15 | |
| Dielectric constant at 50Hz and 1MHz | IEC 60250 | MV/m | - | 5.5 |
| Comparative tracking index (CTI) | IEC 60112 | V | ≥100 | 100~180 |
| Thermal Properties | ||||
| Temperature Index | IEC 60216 | ℃ | 120 | 120 |
| Thermal class | - | Class | - | E |
| Flammability | IEC60707 | Class | - | HB |
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
