PFCC204 is a phenolic cotton cloth laminate which consists of a fine cotton mesh and phenolic resin which make this material suitable for precise construction elements and applications with high mechanical and electrical requirements.
This High Pressure Laminate is used for mechanically and electrically stressed elements and can be installed as Electrical insulation grade material for small components.
PFCC204 (HGW 2083.5) is similar to PFCC203 but improved moisture resistance and dimensional stability. It is also acid-resistant. PFCC204 is recommended for fabricated parts that need smooth edges and good mechanical strength.

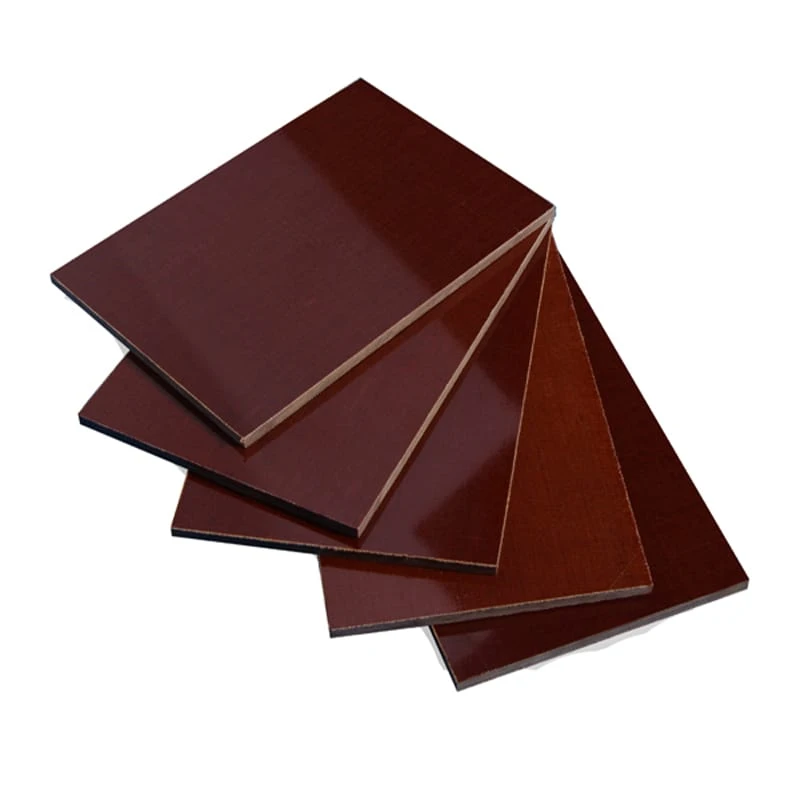

PFCC204 (Hgw2083.5) Phenolic Cotton Cloth Laminated Sheet
PFCC204, Hgw2083.5, 3028, LE, C850.4
120℃
E
Phenolic Resin + Cotton Cloth
Brown
0.4~100mm
1.35g/cm³
1020x2010mm,1020x2040mm,1220x2440mm or customized.
High mechanical applications
Better than PFCC202 in electrical applications
Suitable for small parts.
PFCC204 is similar to PFCC203 but with improved moisture resistance and increased dimensional stability.
It is also acid-resistant.
It is recommended for fabricated parts that need smooth edges and good mechanical strength.
● It is used for mechanically and electrically stressed elements
● Can be installed as electrical insulation grade material for small components

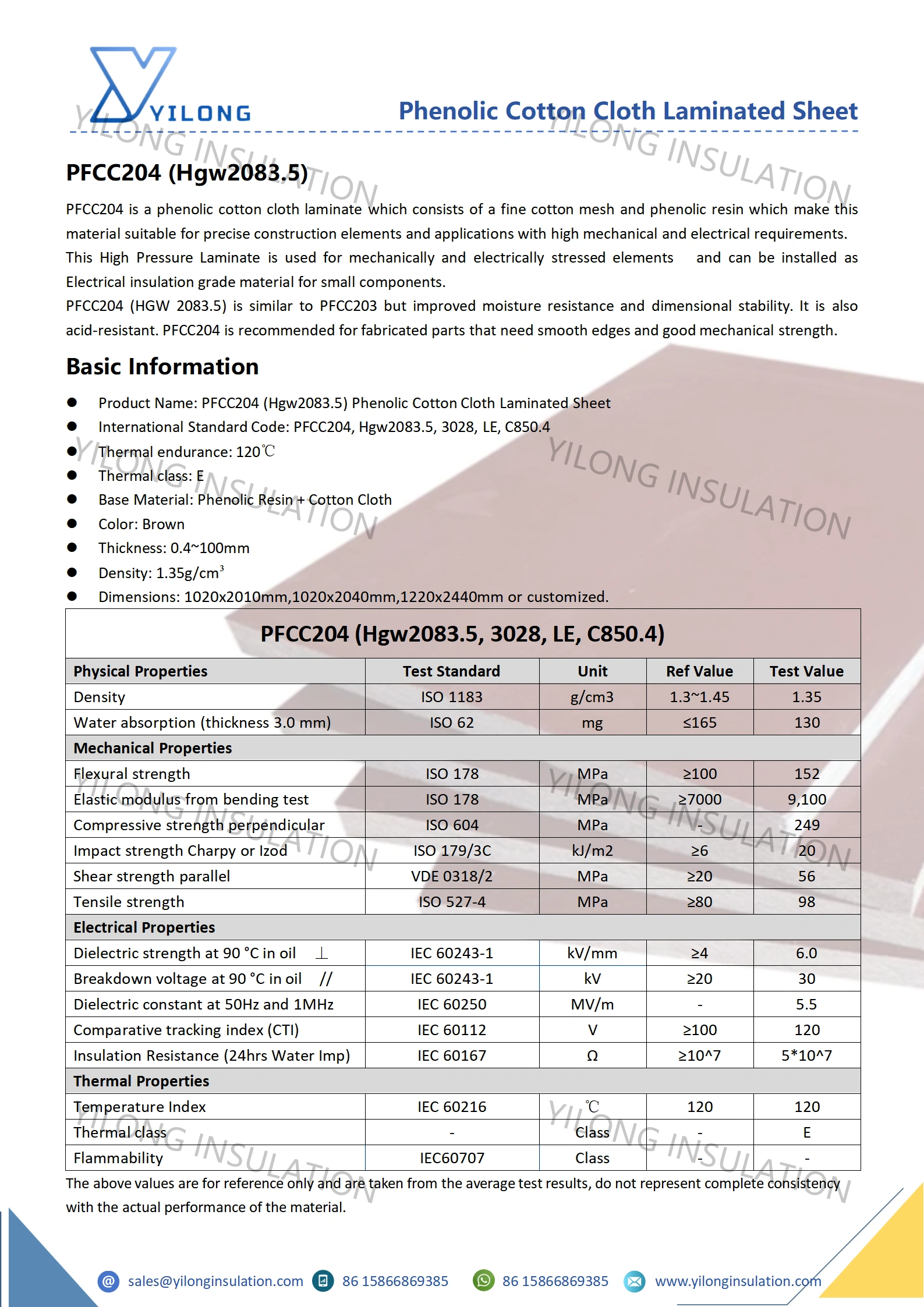

| PFCC204 (Hgw2083.5, 3028, LE, C850.4) | ||||
|---|---|---|---|---|
| Physical Properties | Test Standard | Unit | Ref Value | Test Value |
| Density | ISO 1183 | g/cm³ | 1.3~1.45 | 1.35 |
| Water absorption (thickness 3.0 mm) | ISO 62 | mg | ≤165 | 130 |
| Mechanical Properties | ||||
| Flexural strength | ISO 178 | MPa | ≥100 | 152 |
| Elastic modulus from bending test | ISO 178 | MPa | ≥7000 | 9100 |
| Compressive strength perpendicular | ISO 604 | MPa | - | 249 |
| Impact strength Charpy or Izod | ISO 179/3C | kJ/m² | ≥6 | 20 |
| Shear strength parallel | VDE 0318/2 | MPa | ≥20 | 56 |
| Tensile strength | ISO 527-4 | MPa | ≥80 | 98 |
| Electrical Properties | ||||
| Dielectric strength at 90 °C in oil ⊥ | IEC 60243-1 | kV/mm | ≥4 | 6 |
| Breakdown voltage at 90 °C in oil // | IEC 60243-1 | kV | ≥20 | 30 |
| Dielectric constant at 50Hz and 1MHz | IEC 60250 | MV/m | - | 5.5 |
| Comparative tracking index (CTI) | IEC 60112 | V | ≥100 | 120 |
| Insulation Resistance (24hrs Water Imp) | IEC 60167 | Ω | ≥10^7 | 5*10^7 |
| Thermal Properties | ||||
| Temperature Index | IEC 60216 | ℃ | 120 | 120 |
| Thermal class | - | Class | - | E |
| Flammability | IEC60707 | Class | - | - |
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
