PFCC202 is a high pressure laminate suitable for mechanical and electrical applications. This material is characterized by good dielectric properties with low moisture absorption.
PFCC202 has not so good mechanical however it has better electrical properties than type PFCC201. P CC202 with coarse weave can be used both for Mechanical and Electrical use.
PFCC202 can be used as PFCC201/HGW 2082 but it's suitable also in damp conditions. This phenolic cotton cloth laminate has increased cleavage and breakdown voltage tolerance, enhanced electrical strength and resistance. It is also used as an electronics building material with increased mechanical load resistance.

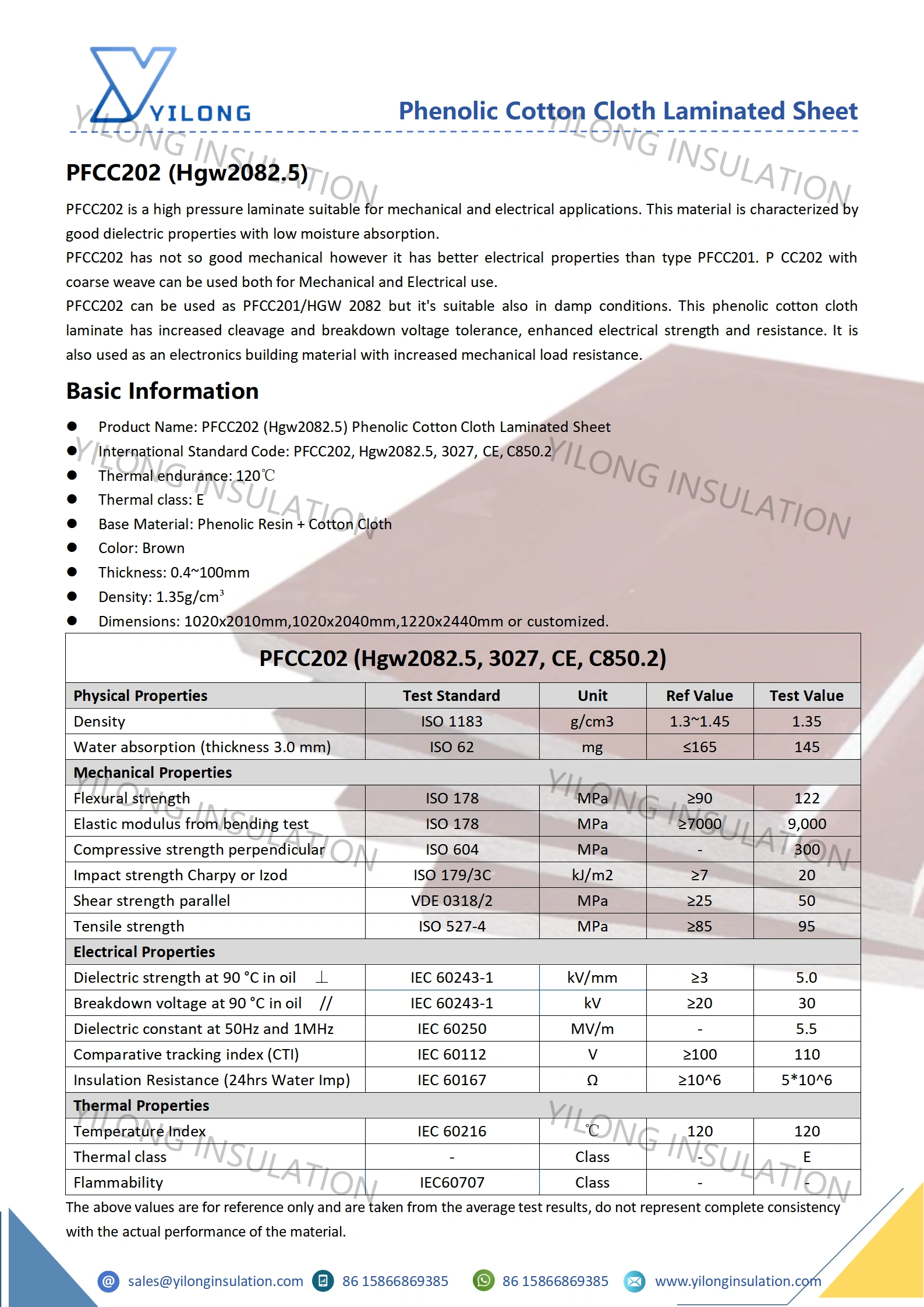

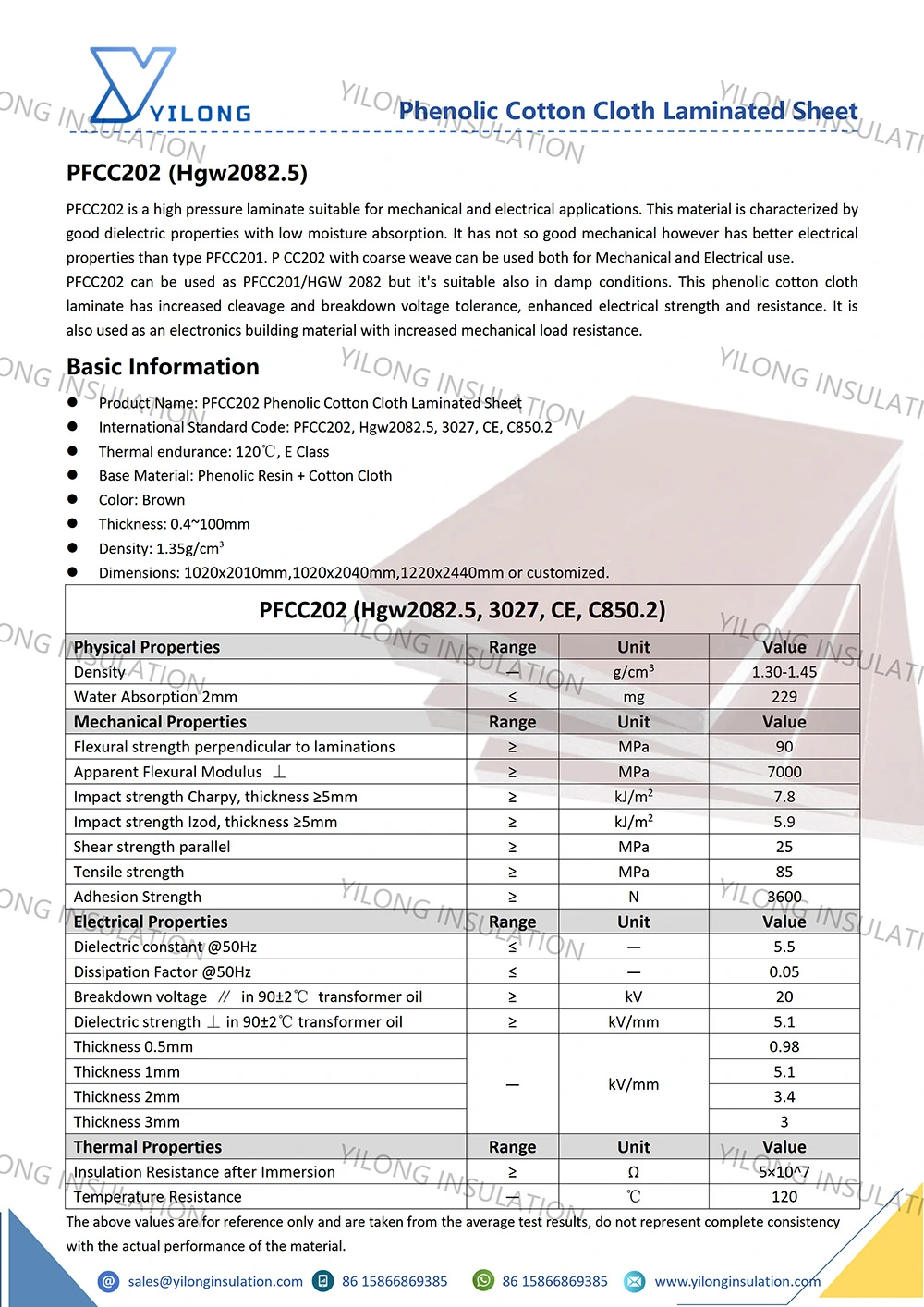

PFCC202 (Hgw2082.5) Phenolic Cotton Cloth Laminated Sheet
PFCC202, Hgw2082.5, 3027, CE, C850.2
120℃
E
Phenolic Resin + Cotton Cloth
Brown
0.4~100mm
1.35g/cm³
1020x2010mm,1020x2040mm,1220x2440mm or customized.
Suitable for mechanical and electrical applications.
Better than PFCC201 in properties
● Used to make parts for electromechanical equipment in high demand for these properties including gear wheels, axle sleeves, guide wheels, washers, etc.
● Used for making structural parts of precision instruments.
| PFCC202 (Hgw2082.5, 3027, CE, C850.2) | ||||
|---|---|---|---|---|
| Physical Properties | Test Standard | Unit | Ref Value | Test Value |
| Density | ISO 1183 | g/cm³ | 1.3~1.45 | 1.35 |
| Water absorption (thickness 3.0 mm) | ISO 62 | mg | ≤165 | 145 |
| Mechanical Properties | ||||
| Flexural strength | ISO 178 | MPa | ≥90 | 122 |
| Elastic modulus from bending test | ISO 178 | MPa | ≥7000 | 9000 |
| Compressive strength perpendicular | ISO 604 | MPa | - | 300 |
| Impact strength Charpy or Izod | ISO 179/3C | kJ/m² | ≥7 | 20 |
| Shear strength parallel | VDE 0318/2 | MPa | ≥25 | 50 |
| Tensile strength | ISO 527-4 | MPa | ≥85 | 95 |
| Electrical Properties | ||||
| Dielectric strength at 90 °C in oil ⊥ | IEC 60243-1 | kV/mm | ≥3 | 5 |
| Breakdown voltage at 90 °C in oil // | IEC 60243-1 | kV | ≥20 | 30 |
| Dielectric constant at 50Hz and 1MHz | IEC 60250 | MV/m | - | 5.5 |
| Comparative tracking index (CTI) | IEC 60112 | V | ≥100 | 110 |
| Insulation Resistance (24hrs Water Imp) | IEC 60167 | Ω | ≥10^6 | 5*10^6 |
| Thermal Properties | ||||
| Temperature Index | IEC 60216 | ℃ | 120 | 120 |
| Thermal class | - | Class | - | E |
| Flammability | IEC60707 | Class | - | - |
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
