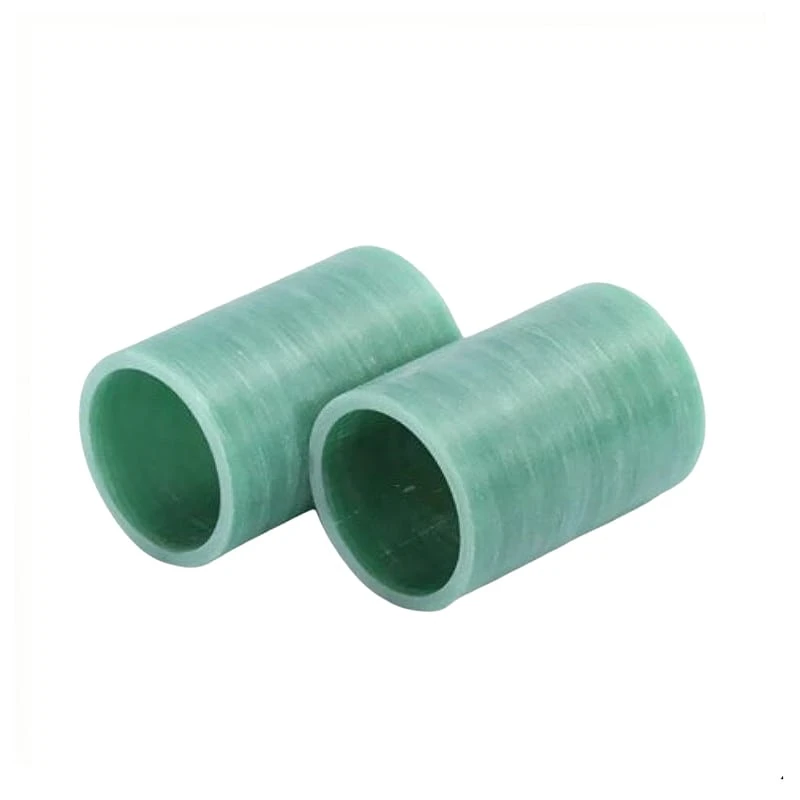

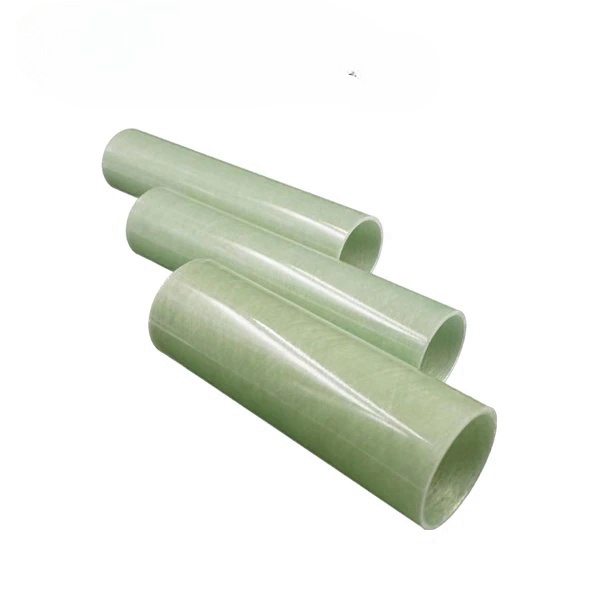

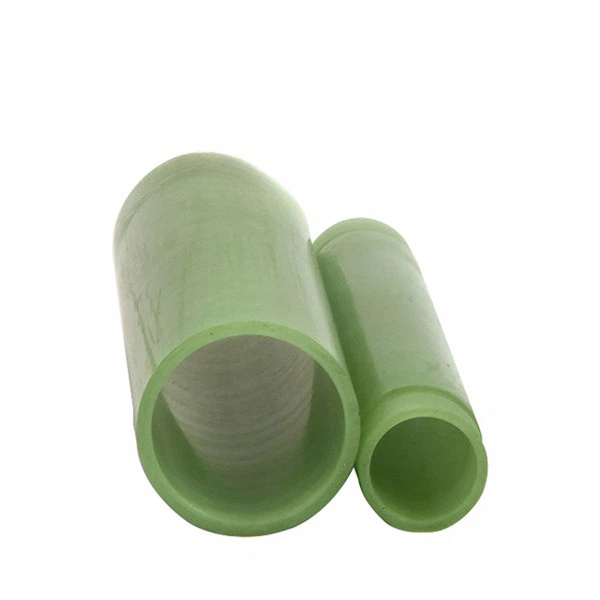

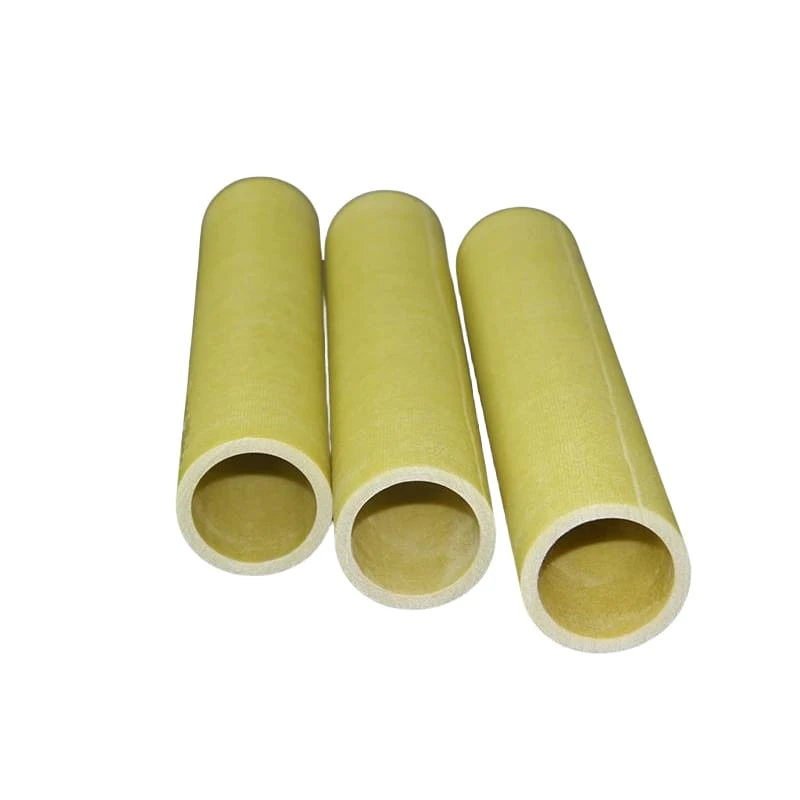

Epoxy fiberglass cloth laminated tube is tube-like laminated products, which is manufactured by fiberglass cloth impregnated with epoxy resin, and then rolled, baked and cured under heat and hot pressing with good dielectric property and strong machinability. The insulation class is B class and the main color is yellow.
It can be used as insulating structural spares in electrical equipment, and also, can be processed into coil insulation cylinder of try-type transformer and insulation end coil of transformer.
Epoxy Glass Fabric Laminated Tube
130℃
B
Epoxy resin + Glass cloth
Yellow
1.70~1.90g/cm³
10-500mm
1000mm
2-200mm
6-1200mm
Excellent electrical properties
Superior mechanical properties
Good heat resistance
Chemical resistance
Good processing performance
● High-voltage electrical parts: such as insulating structural parts and support parts of high-voltage electrical appliances.
● Dry-type transformer skeleton: as the skeleton material of dry-type transformer
● Insulating structural parts: used as insulating structural parts in electric motors and electrical equipment
● Used in humid environmental conditions and transformer oil
● Preferred materials for manufacturing high-quality electrical equipment.

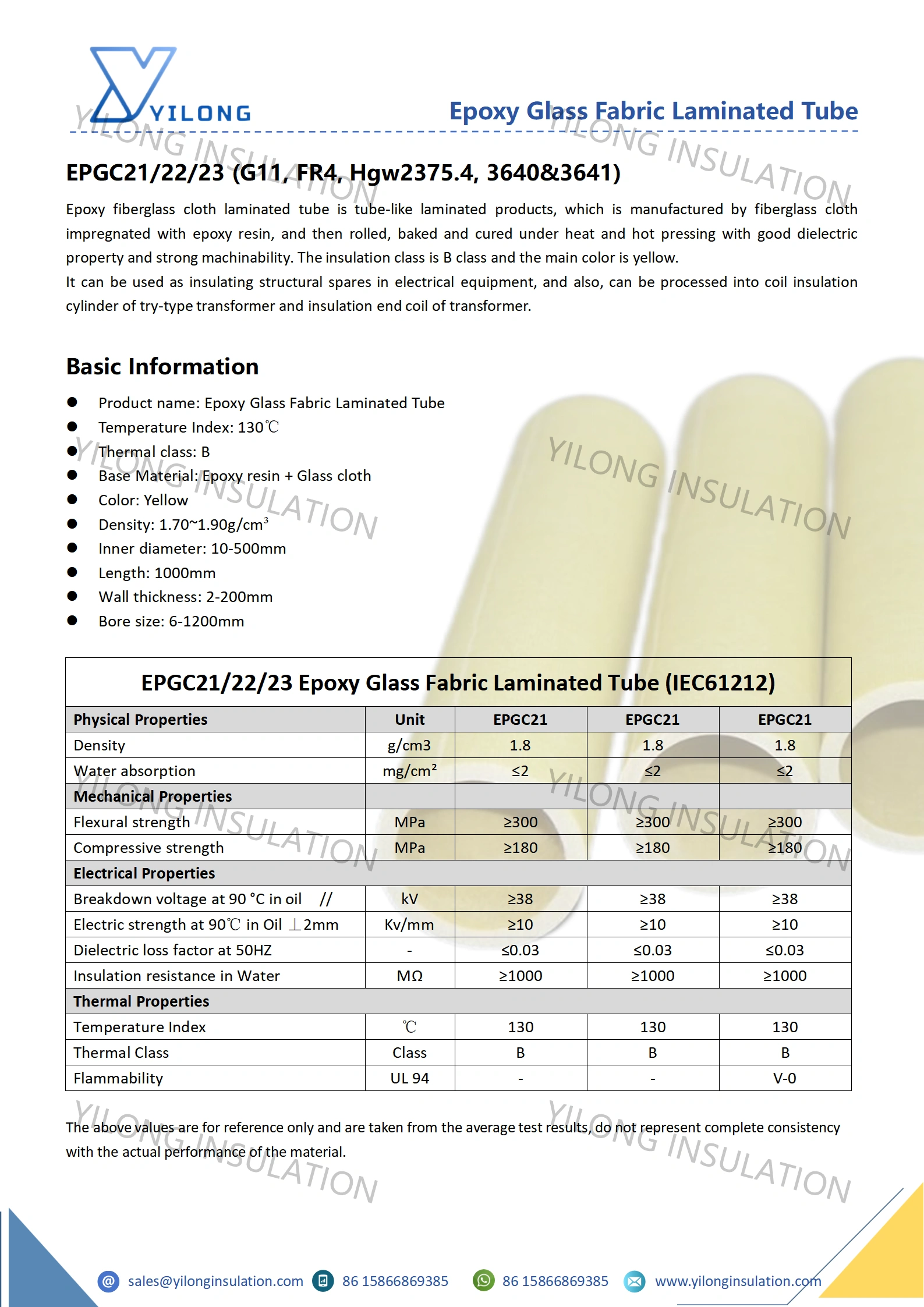

| EPGC21/22/23 Epoxy Glass Fabric Laminated Tube (IEC61212) | ||||
|---|---|---|---|---|
| Physical Properties | Unit | EPGC21 | EPGC21 | EPGC21 |
| Density | g/cm³ | 1.8 | 1.8 | 1.8 |
| Water absorption | mg/cm² | ≤2 | ≤2 | ≤2 |
| Mechanical Properties | ||||
| Flexural strength | MPa | ≥300 | ≥300 | ≥300 |
| Compressive strength | MPa | ≥180 | ≥180 | ≥180 |
| Electrical Properties | ||||
| Breakdown voltage at 90 °C in oil // | kV | ≥38 | ≥38 | ≥38 |
| Electric strength at 90℃ in Oil ⊥2mm | Kv/mm | ≥10 | ≥10 | ≥10 |
| Dielectric loss factor at 50HZ | - | ≤0.03 | ≤0.03 | ≤0.03 |
| Insulation resistance in Water | MΩ | ≥1000 | ≥1000 | ≥1000 |
| Thermal Properties | ||||
| Temperature Index | ℃ | 130 | 130 | 130 |
| Thermal Class | Class | B | B | B |
| Flammability | UL 94 | - | - | V-0 |
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
