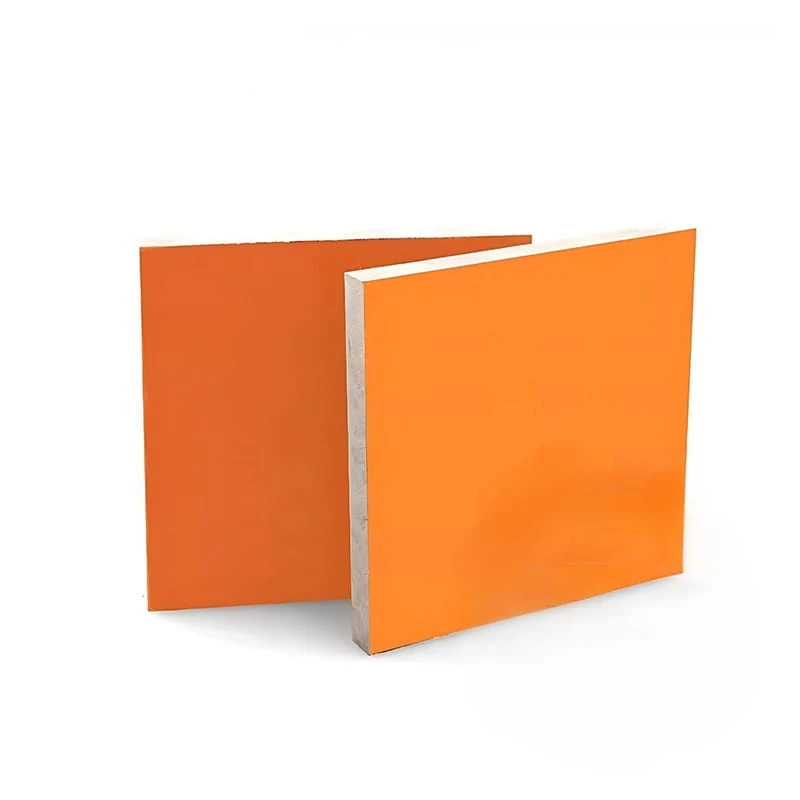

Phenolic paper laminated sheet is made of cellulose fiber paper impregnated with phenolic resin by processing under heat and pressure. Phenolic paper sheet can be processed into all kinds of insulation parts. The products are widely used for transformers, electric motors, cabinets, control boxes, electric switches, household appliances, railway, automobile, computer, medical appliance and etc.
PFCP206 sheet: Similar in mechanical performance to PFCP201, with better punching practice at lower temperatures than PFCP201.

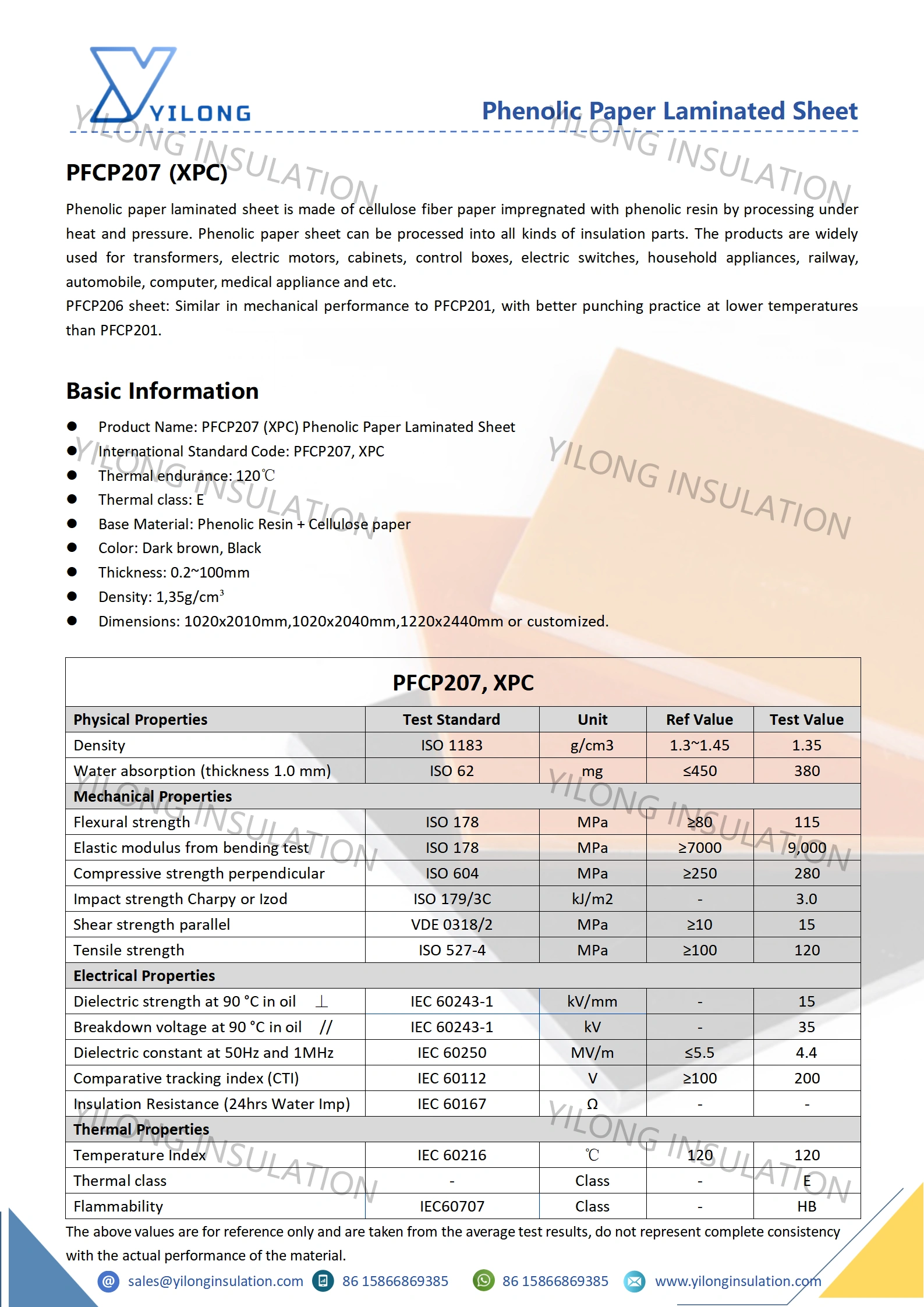

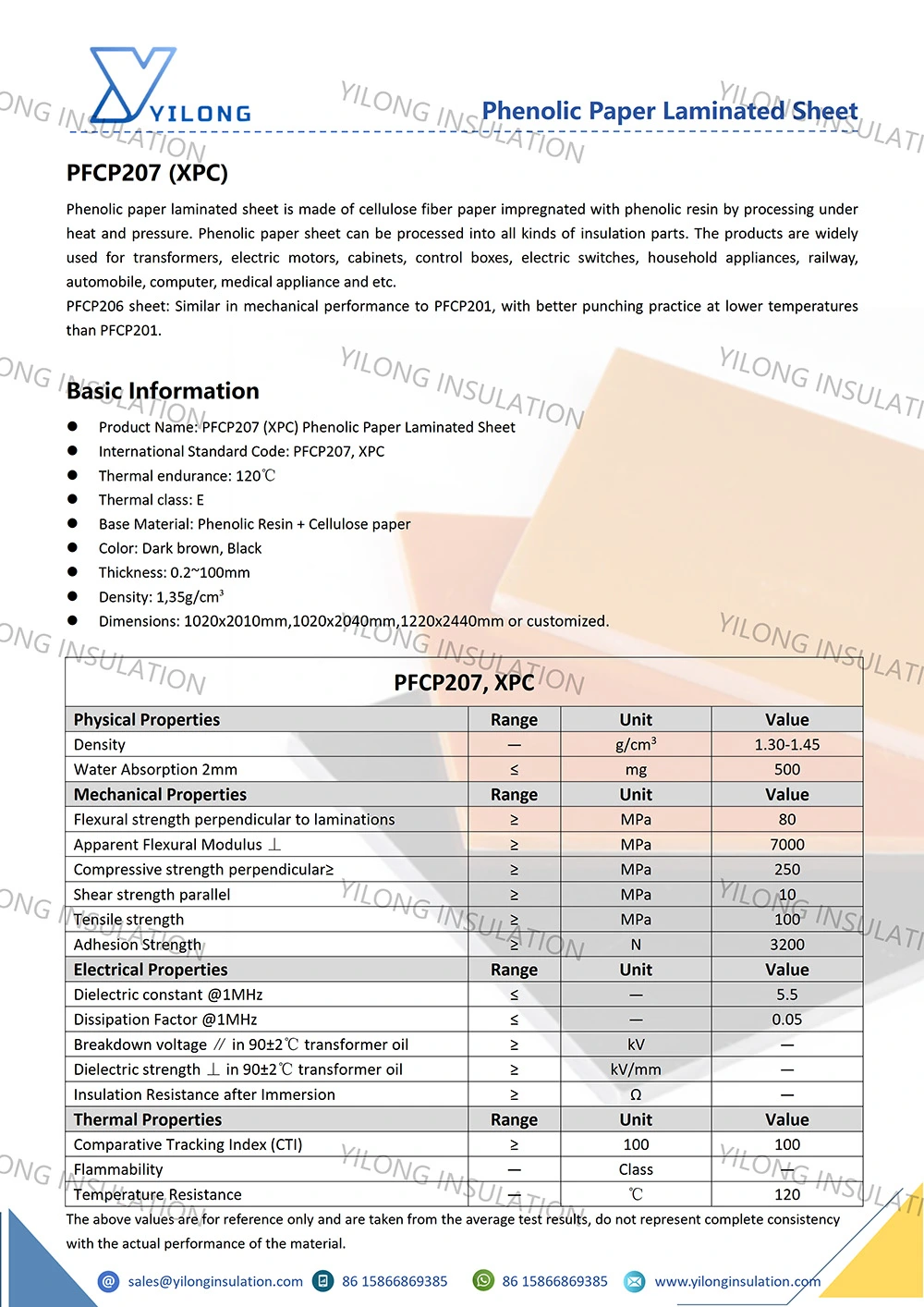

PFCP207 (XPC) Phenolic Paper Laminated Sheet
PFCP207, XPC
120℃
E
Phenolic Resin + Cellulose paper
Dark brown, Black
0.2~100mm
1.35g/cm³
1020x2010mm,1020x2040mm,1220x2440mm or customized.
Similar to PFCP201, but with good punching practice at lower temperature.
Excellent mechanical properties for general industrial applications than other PFCP types.
Poor electrical properties under normal humidity.
● Insulating structure parts in motor, electrical equipment
● Can be used in transformer oil.
● Suitable for being the backup board for PCB
● Swtich cabinet
● Jag board
● Die splint
● Packing machine
● High frequency welding machine
● Forming machine
● Frilling machine and table grinding machine
| PFCP207, XPC | ||||
|---|---|---|---|---|
| Physical Properties | Test Standard | Unit | Ref Value | Test Value |
| Density | ISO 1183 | g/cm³ | 1.3~1.45 | 1.35 |
| Water absorption (thickness 3.0 mm) | ISO 62 | mg | ≤450 | 380 |
| Mechanical Properties | ||||
| Flexural strength | ISO 178 | MPa | ≥80 | 115 |
| Elastic modulus from bending test | ISO 178 | MPa | ≥7000 | 9000 |
| Compressive strength perpendicular | ISO 604 | MPa | ≥250 | 280 |
| Impact strength Charpy or Izod | ISO 179/3C | kJ/m² | - | 3 |
| Shear strength parallel | VDE 0318/2 | MPa | ≥10 | 15 |
| Tensile strength | ISO 527-4 | MPa | ≥100 | 120 |
| Electrical Properties | ||||
| Dielectric strength at 90 °C in oil ⊥ | IEC 60243-1 | kV/mm | - | 15 |
| Breakdown voltage at 90 °C in oil // | IEC 60243-1 | kV | - | 35 |
| Dielectric constant at 50Hz and 1MHz | IEC 60250 | MV/m | ≤5.5 | 4.4 |
| Comparative tracking index (CTI) | IEC 60112 | V | ≥100 | 200 |
| Insulation Resistance (24hrs Water Imp) | IEC 60167 | Ω | - | - |
| Thermal Properties | ||||
| Temperature Index | IEC 60216 | ℃ | 120 | 120 |
| Thermal class | - | Class | - | E |
| Flammability | IEC60707 | Class | - | HB |
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
Yes, based on drawings or samples.
UL, RoHS, REACH, CE, ISO, etc.
Usually 100 kg or 100 sheets, negotiable.
Yes, common samples free, buyer pays freight.
2-4 weeks after payment.
Yes, including labeling and packaging.
Yes, over 20 years.
T/T 30% deposit, 70% before shipment. Negotiable if supports needed.
Yes, we offer CNC machining.
