PFCC201 cotton phenolic laminate is produced by bonding cotton layers with phenolic resin. It has great mechanical strength and therefore is suitable for applications in which good wear- and load- resistance properties are required (it is also suited to environments with dust and other impurities). The material also has superior friction related and soundproofing qualities. Water, oil or grease can be used as a lubricant, when necessary. The product is resistant to saline water and weather conditions, and thanks to its high service temperature (120°C), it can be used to replace asbestos.

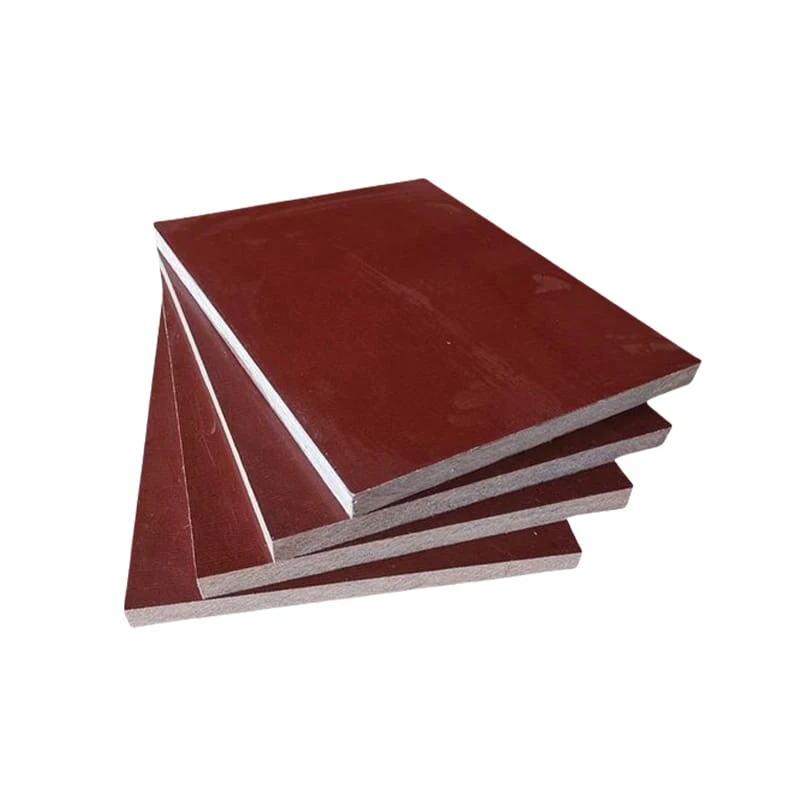

PFCC201 (Hgw2082) Phenolic Cotton Cloth Laminated Sheet
PFCC201, HGW2082, 3025, C, C850.1
120℃
E
Phenolic Resin + Cotton Cloth
Brown
0.4~100mm
1.35g/cm³
1020x2010mm,1020x2040mm,1220x2440mm or customized.
High mechanical applications
Low electrical applications
Primarily intended for mechanical field
Impact resistance
Wear-resisting
Sound absorbing
Low friction
Very suitable for high load and wear resistance of components
Operation in harsh high abrasion and high dust environment
Bearthe weathering and the sea
● As structure parts in motor, mechanical and electrical equipment.
● Can be used in transformer oil.
● Being components of mechanical parts such as the gears, guide wheel, saw guide, etc.

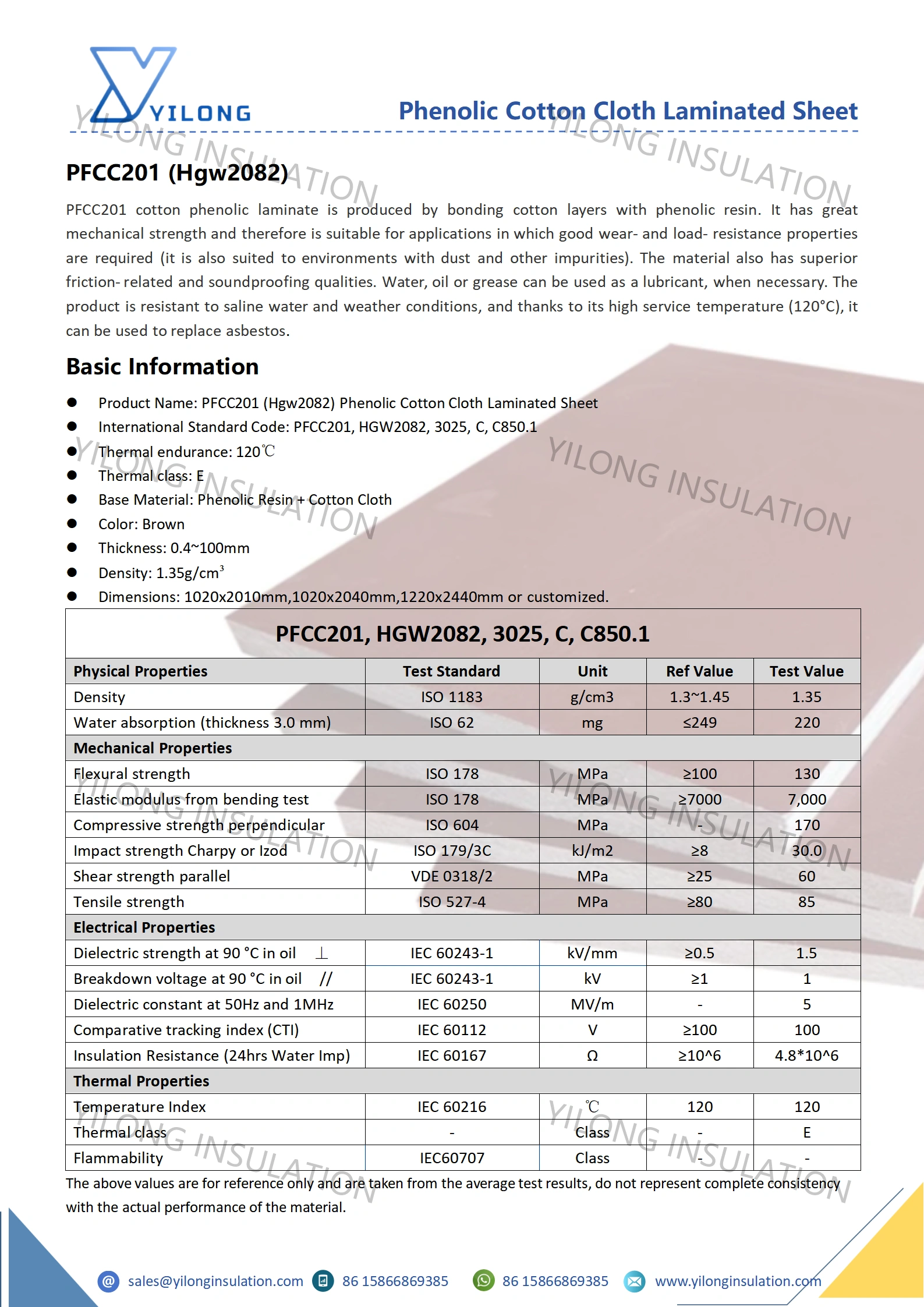

| PFCC201, HGW2082, 3025, C, C850.1 | ||||
|---|---|---|---|---|
| Physical Properties | Test Standard | Unit | Ref Value | Test Value |
| Density | ISO 1183 | g/cm³ | 1.3~1.45 | 1.35 |
| Water absorption (thickness 3.0 mm) | ISO 62 | mg | ≤249 | 220 |
| Mechanical Properties | ||||
| Flexural strength | ISO 178 | MPa | ≥100 | 130 |
| Elastic modulus from bending test | ISO 178 | MPa | ≥7000 | 7000 |
| Compressive strength perpendicular | ISO 604 | MPa | - | 170 |
| Impact strength Charpy or Izod | ISO 179/3C | kJ/m² | ≥8 | 30 |
| Shear strength parallel | VDE 0318/2 | MPa | ≥25 | 60 |
| Tensile strength | ISO 527-4 | MPa | ≥80 | 85 |
| Electrical Properties | ||||
| Dielectric strength at 90 °C in oil ⊥ | IEC 60243-1 | kV/mm | ≥0.5 | 1.5 |
| Breakdown voltage at 90 °C in oil // | IEC 60243-1 | kV | ≥1 | 1 |
| Dielectric constant at 50Hz and 1MHz | IEC 60250 | MV/m | - | 5 |
| Comparative tracking index (CTI) | IEC 60112 | V | ≥100 | 100 |
| Insulation Resistance (24hrs Water Imp) | IEC 60167 | Ω | ≥10^6 | 4.8*10^6 |
| Thermal Properties | ||||
| Temperature Index | IEC 60216 | ℃ | 120 | 120 |
| Thermal class | - | Class | - | E |
| Flammability | IEC60707 | Class | - | - |
The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
