Copper Clad FR4

Epoxy Glass Fabric Laminated Sheet

Category

10
10

Copper Clad FR4

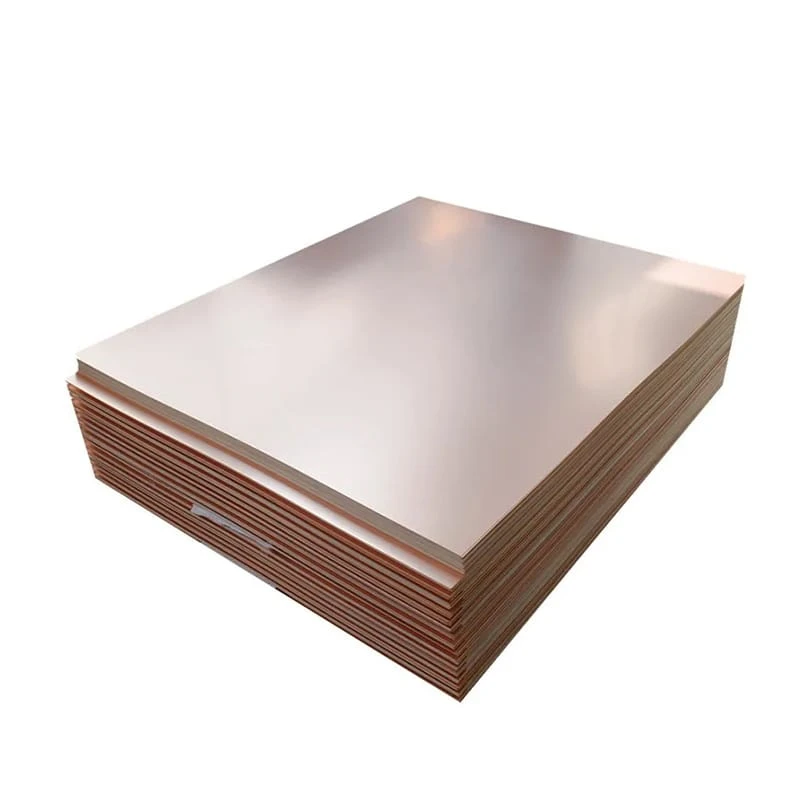

Copper clad laminated sheet uses glass fiber cloth as substrate material. After being immersed with epoxy resin and then baked into prepreg sheet, several prepreg sheets are then coated with copper foil on one side or both sides, and CCL is finally formed by hot pressing and curing.
FR-4 copper clad laminated sheet has excellent thermal stability and machinability, widely used in the manufacture of printed circuit board (PCB) for television sets, computers, communications equipment and other electronic products.

Basic Information



  • Product Name

    Copper Clad FR4

  • Material

    Fibreglass FR4 + copper foil

  • Color

    yellow, white, Green, Grey.

  • Thickness

    0.4mm,0.8mm,1mm,1.2mm, 1.6mm,2.4mm, 3.2mm, 6.4 mm.

  • Dimensions

    1020x2010mm,1020x2040mm,1220x2440mm or customized.



Features



  • Higher mechanical properties

  • Dielectric properties

  • Good heat/moisture resistance

  • Stable electric performance in high temperature

  • Good flatness, smooth surface



Applications

● Mobile phone, Telephones, Periphery products of computer,

● Office automatic equipment,Hi-Fi acoustic devices,Electronic toys and etc.

● Some senior household electric machine,PCB base material,

● Automatic equipment & Instrument,Electric products for Aviation or Automobile.

● It can fulfill the requirement of SMT and sealed packagesubstrate.

● Usually used in PCB of computers, home electric appliances and other lines

Technical Data

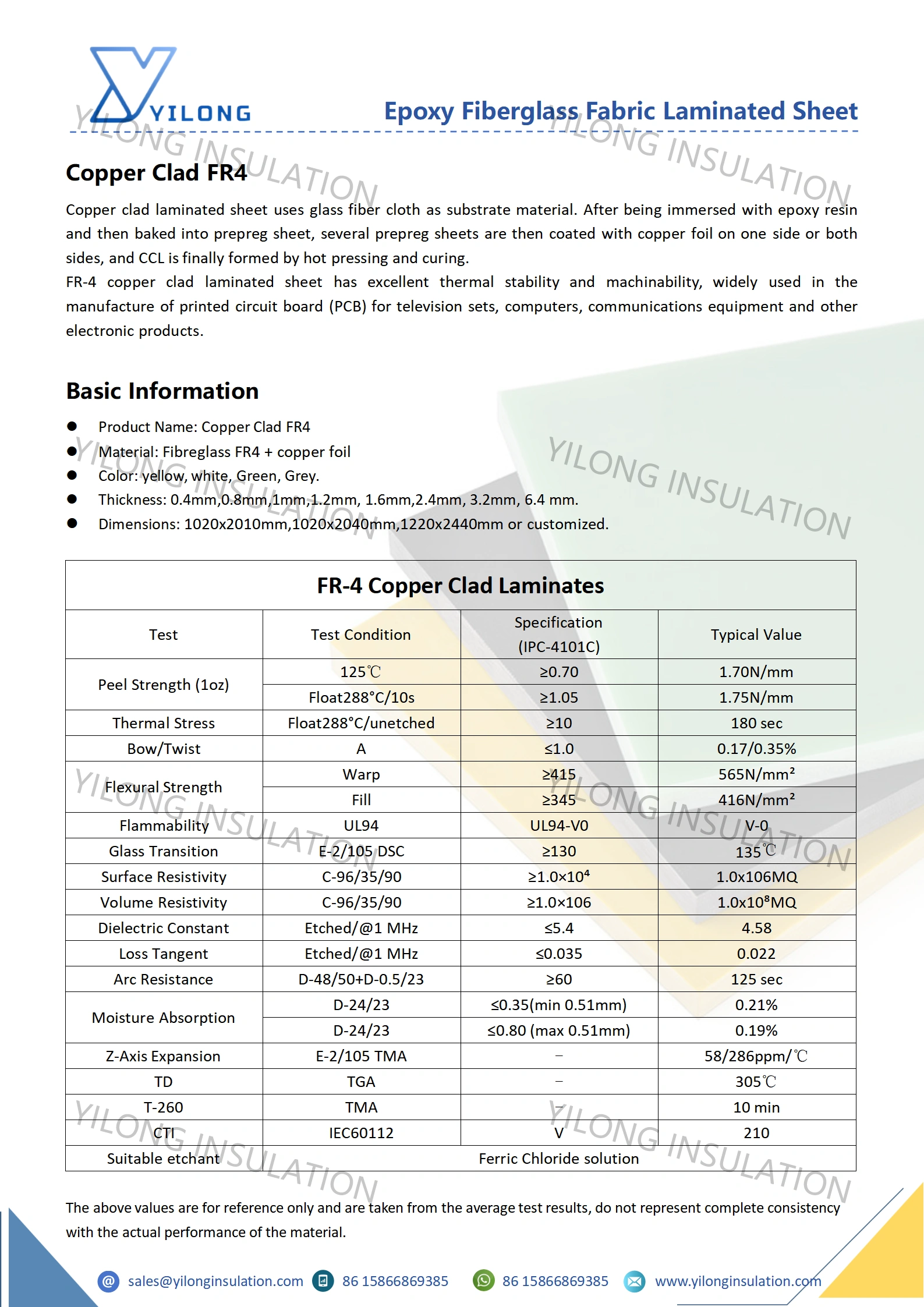

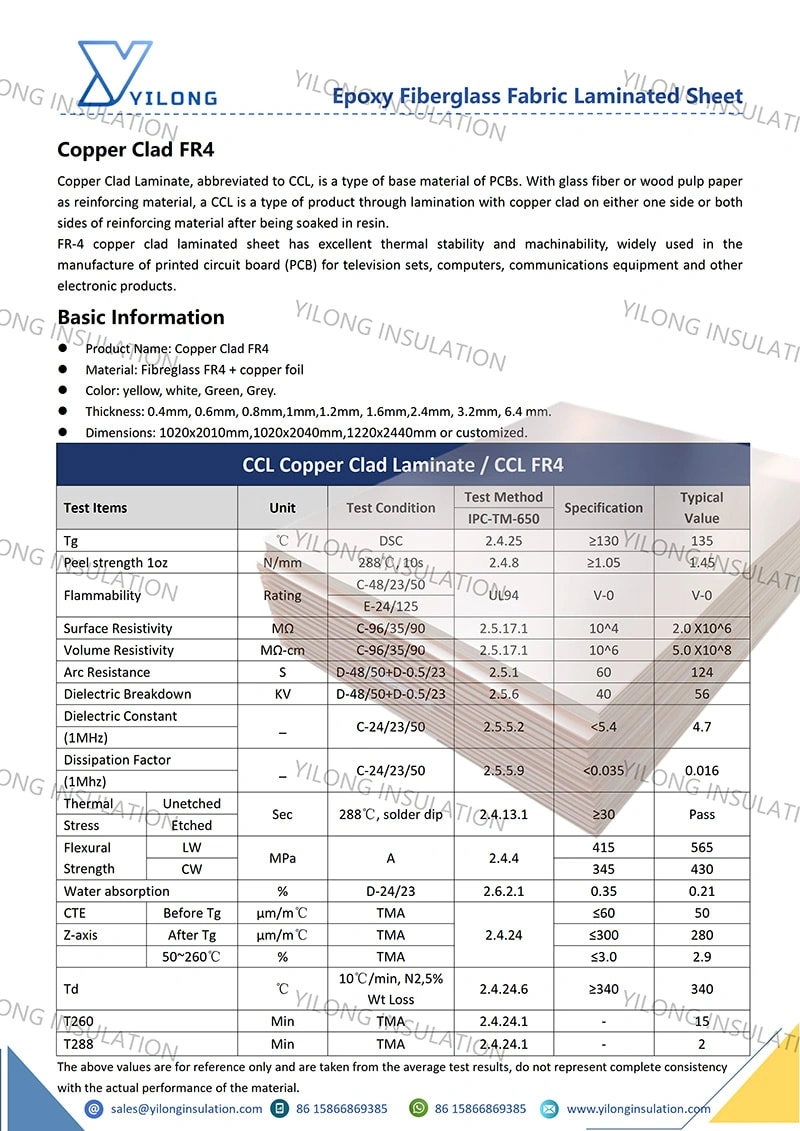

FR-4 Copper Clad Laminates
Test Test Condition Specification
(IPC-4101C)
Typical Value
Peel Strength (1oz) 125℃ ≥0.70 1.70N/mm
Float288°C/10s ≥1.05 1.75N/mm
Thermal Stress Float288°C/unetched ≥10 180 sec
Bow/Twist A ≤1.0 0.17/0.35%
Flexural Strength Warp ≥415 565N/mm²
Fill ≥345 416N/mm²
Flammability UL94 UL94-V0 V-0
Glass Transition E-2/105 DSC ≥130 135℃
Surface Resistivity C-96/35/90 ≥1.0×10⁴ 1.0x106MQ
Volume Resistivity C-96/35/90 ≥1.0×106 1.0x10⁸MQ
Dielectric Constant Etched/@1 MHz ≤5.4 4.58
Loss Tangent Etched/@1 MHz ≤0.035 0.022
Arc Resistance D-48/50+D-0.5/23 ≥60 125 sec
Moisture Absorption D-24/23 ≤0.35(min 0.51mm) 0.21%
D-24/23 ≤0.80 (max 0.51mm) 0.19%
Z-Axis Expansion E-2/105 TMA - 58/286ppm/℃
TD TGA - 305℃
T-260 TMA - 10 min
CTI IEC60112 V 210
Suitable etchant Ferric Chloride solution



The above values are for reference only and are taken from the average test results, do not represent complete consistency with the actual performance of the material.
