Pipeline corrosion is one of the most costly and dangerous challenges faced in oil, gas, water, and chemical processing industries. When dissimilar metals come into contact, galvanic corrosion can begin rapidly, compromising pipeline reliability and leading to leaks, failures, and costly maintenance. Flange Isolation Gasket Kits provide a proven solution by creating an electrical barrier that stops unwanted current flow at critical flange connections. Using high-performance dielectric Isolation Kits is one of the most effective ways to protect pipelines, extend service life, and reduce long-term operating costs.
What Are Flange Isolation Gasket Kits?

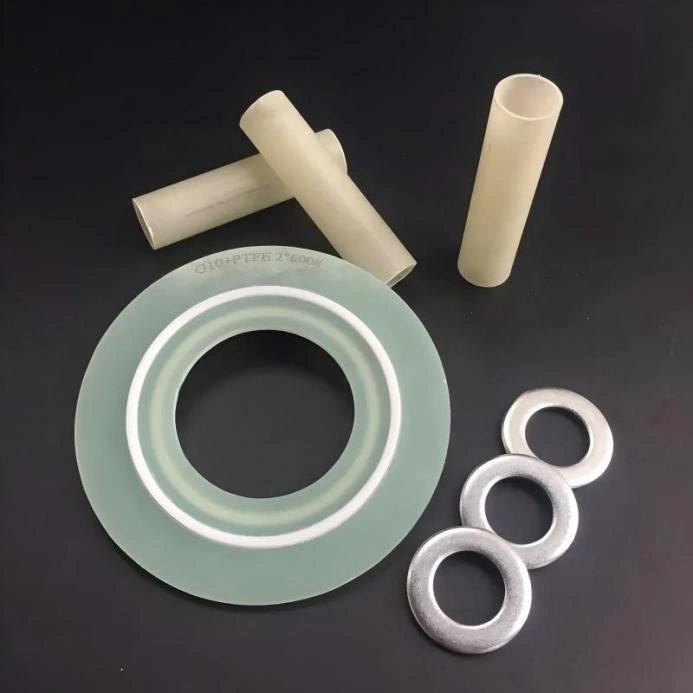

A flange isolation gasket kit is a complete system designed to electrically isolate flanges and prevent metal-to-metal contact. Each kit typically includes a dielectric flange gasket, insulating sleeves, and insulating washers. Together, these components interrupt stray electrical currents and eliminate the conditions that allow galvanic corrosion to form. Industrial operators rely on these kits to enhance sealing performance and maintain safe operation in environments where corrosion risks are high—such as refineries, petrochemical facilities, offshore platforms, and water treatment systems.
How Isolation Kits Prevent Galvanic Corrosion
Galvanic corrosion occurs when two dissimilar metals are connected in the presence of an electrolyte, allowing electrical current to pass between them. Over time, the more reactive metal deteriorates, threatening the integrity of the entire pipeline. By providing electrical separation at the flange interface, Flange Isolation Gasket Kits maintain electrical discontinuity and stop this destructive process. This protection is especially important in installations exposed to saltwater, buried pipelines, marine atmospheres, and chemical processing environments where moisture and conductive fluids accelerate corrosion.
Key Benefits of Using Flange Isolation Gasket Kits
A properly installed dielectric flange kit offers long-term system protection that goes far beyond the flange connection itself. Some of the most significant benefits include:
• Corrosion prevention: Isolating flanges effectively stops galvanic activity before it begins.
• Reduced maintenance costs: Fewer corrosion-related failures mean lower repair expenses and less downtime.
• Enhanced safety: Strong sealing performance minimizes the risk of leaks in high-risk or hazardous applications.
• Extended service life: Protecting joints increases the overall lifespan of pipeline assets.
• Reliable performance: High-quality kits maintain sealing force, pressure ratings, and mechanical strength in demanding environments.
Investing in high-performance isolation components leads to safer pipelines and more efficient operations.
Flange Gasket Types and Their Applications
Choosing the right flange isolation gasket is essential for maintaining electrical isolation, achieving a reliable seal, and preventing galvanic corrosion across different industrial systems. Various gasket materials are designed to handle different temperatures, pressures, and chemical conditions. Below are the most commonly used types in pipeline isolation applications:
1. Epoxy Glass Laminate Gaskets (G10 / G11 / FR4 / FR5)
Epoxy glass gaskets—such as G10, G11, FR4, and FR5—are widely used for flange isolation because of their outstanding mechanical strength and dielectric properties.
• G10 / FR4: Excellent insulation and high strength, suitable for general industrial service.
• G11 / FR5: Higher heat resistance, ideal for elevated-temperature pipeline environments.
These materials provide reliable electrical isolation and are commonly used in oil & gas, marine environments, and chemical processing systems.
2. Phenolic Laminate Gaskets
Phenolic gaskets are one of the most traditional and widely used materials for dielectric flange kits. They provide good insulation, moisture resistance, and structural stability.
• Suitable for medium pressure
• Cost-effective isolation
• Performs well in freshwater and standard industrial applications
Phenolic is often combined with neoprene or EPDM sealing elements.
3. Neoprene-Faced Phenolic Gaskets
These consist of a phenolic core laminated with neoprene rubber on both sides, providing excellent sealing performance.
• Ideal for applications requiring both isolation and soft sealing
• Good resistance to oils and mild chemicals
• Common in water distribution and industrial fluid handling
4. PTFE (Teflon) Isolation Gaskets
PTFE-based gaskets provide superior chemical resistance and exceptional dielectric strength.
• Excellent for aggressive chemicals and corrosive fluids
• Extremely low friction and non-stick properties
• Ideal for pipelines in chemical plants, refineries, and acidic environments
PTFE is often used as the sealing element in Type F (full-face) and Type E (ring) Isolation Kits.
5. Rubber Isolation Gaskets (EPDM, Nitrile, Neoprene, Viton)
Rubber-based isolating gaskets are used where flexibility and sealing capability are more critical than structural strength.
• EPDM: Good for water, steam, and alkaline environments
• Nitrile (NBR): Resistant to fuels, oils, hydrocarbons
• Viton: Excellent for high-temperature and chemical-resistant applications
They are widely applied in water treatment, HVAC, and general pipeline sealing.
6. High-Temperature Mica and Composite Gaskets
For extremely high-temperature service—such as power plants or steam pipelines—mica, reinforced composites, and mineral-based insulating gaskets are used.
• Withstand high heat without losing insulation
• Suitable for fire-safe isolation systems
• Used in boilers, steam lines, and high-temperature equipment
Each isolation kit is engineered with matching sleeves and washers to ensure complete electrical isolation at the joint. These solutions are widely used in oil and gas pipelines, chemical lines, water transmission systems, and industrial processing equipment.
Protect Your Pipeline With High-Performance Isolation Kits
Corrosion remains one of the biggest threats to pipeline performance and operational safety. The right flange isolation gasket kit provides long-lasting protection by preventing galvanic activity and maintaining electrical isolation where it matters most. These systems reduce downtime, limit repair costs, and preserve pipeline integrity across all industrial environments.
YILONG specializes in high-quality Flange Isolation Gasket Kits engineered for demanding applications. With deep expertise in pipeline corrosion prevention, our team can help you select the best isolation solution based on your system’s operating conditions, pressure requirements, and environmental challenges. Contact YILONG for professional support and reliable dielectric protection solutions at yilong@yilonginsulation.com or visit our website www.yilonginsulation.com for more details.You may also reach out via Whatsapp +86 13156253652.
