In modern industrial manufacturing, many high-performance insulation materials are designed to meet demanding electrical and mechanical requirements. Among them, Phenolic Paper Tubes are widely recognized for their strength, insulation capability, and durability. These tubes, sometimes referred to as phenolic laminated tubes or paper phenolic tubes, are commonly used in electrical equipment, mechanical components, and various structural applications.
Because of their reliable performance and versatile design, Phenolic Paper Tubes have become an important engineering material across multiple industries. Their combination of lightweight structure, high mechanical strength, and excellent electrical insulation makes them suitable for environments where both mechanical stability and electrical safety are essential.
At YILONG INSULATION, we manufacture and supply high-quality phenolic insulation materials including Phenolic Paper Tubes designed for demanding industrial applications worldwide.

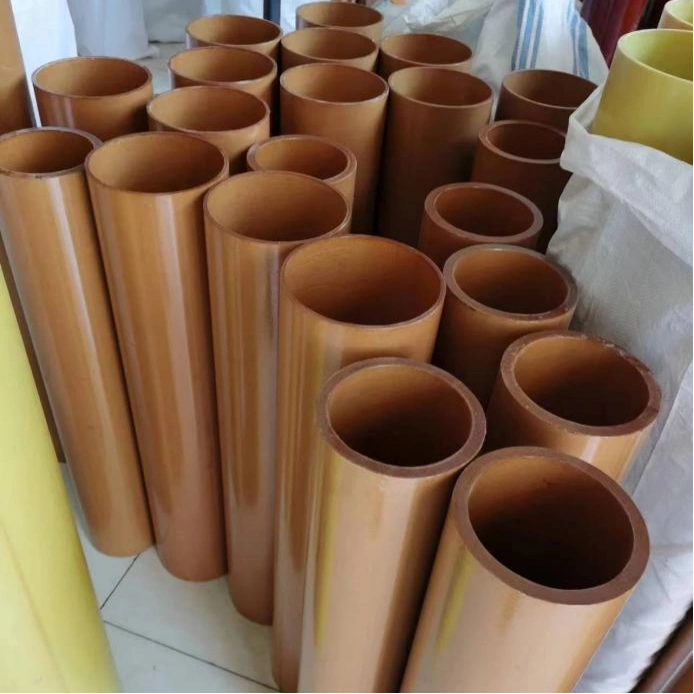

Phenolic Paper Tubes are cylindrical composite materials produced from layers of paper impregnated with phenolic resin. The paper used is typically high-strength kraft paper, which provides excellent tensile strength and durability. When combined with phenolic resin, the result is a rigid laminated structure with enhanced mechanical and electrical properties.
Phenolic resin is a thermosetting polymer known for its resistance to heat, chemicals, and mechanical wear. During the manufacturing process, the resin penetrates deep into the paper fibers, forming a strong bond between layers. Once cured under heat and pressure, the resin hardens and creates a stable composite material.
This structure produces a tube that is both lightweight and strong while also providing good insulation and environmental resistance. Because of these characteristics, Phenolic Paper Tubes are commonly used in electrical, mechanical, and industrial systems where reliability is required.
The production of Phenolic Paper Tubes involves several controlled manufacturing steps to ensure consistent performance and quality.
The process begins with kraft paper sheets being impregnated with phenolic resin. The resin must fully penetrate the paper fibers in order to achieve the desired strength and insulation properties.
After impregnation, the resin-treated paper is wound layer by layer around a mandrel. The mandrel acts as a forming tool that determines the inner diameter of the tube. This winding process must be carefully controlled to maintain uniform thickness and structural stability.
Once the desired wall thickness is achieved, the tube undergoes curing under high temperature and pressure. During this stage, the phenolic resin undergoes a thermosetting reaction that permanently hardens the material and bonds the layers together.
After curing, the tubes may be machined or cut to the required dimensions. Strict quality control procedures are applied to ensure that each tube meets dimensional, mechanical, and electrical performance requirements.
Phenolic Paper Tubes are widely used in industrial applications because of their balanced combination of mechanical strength, insulation performance, and environmental resistance.
One of the most important characteristics is their high compressive and tensile strength. The laminated paper structure reinforced with phenolic resin allows the tubes to withstand significant mechanical loads without deformation.
Another key property is excellent electrical insulation. Phenolic Paper Tubes provide high dielectric strength and low electrical conductivity, making them ideal for electrical insulation components and protective sleeves.
Heat resistance is also an important advantage. Phenolic materials maintain their structural stability under elevated temperatures where many thermoplastics may soften or degrade.
In addition, Phenolic Paper Tubes show good resistance to moisture, oils, and many industrial chemicals. This resistance allows them to perform reliably in challenging environments such as industrial machinery, marine systems, and electrical equipment.
Phenolic Paper Tubes are used in a wide range of industrial sectors because of their versatility and reliability.
In the electrical and electronics industry, these tubes are commonly used as insulating sleeves for transformers, coil supports for inductors, and protective housings for electrical components. Their excellent dielectric properties help ensure safe and stable operation of electrical systems.
In mechanical and structural applications, Phenolic Paper Tubes can serve as lightweight reinforcement materials in composite structures. Industries such as aerospace and automotive use them for components where strength and weight efficiency are important.
The construction industry also uses phenolic tubes as form tubes for creating cylindrical concrete structures. Their strength and stability make them a practical and efficient solution for forming concrete columns.
In addition, Phenolic Paper Tubes are used in packaging and storage applications. Their durability and resistance to moisture make them suitable for protecting fragile items during transport. In textile manufacturing, they are frequently used as cores for fabric rolls, helping maintain the shape and quality of the material during storage and transportation.
Phenolic Paper Tubes offer several advantages compared with many traditional materials.
Their high strength-to-weight ratio allows manufacturers to create durable components without adding unnecessary weight. This is particularly valuable in industries where efficiency and structural performance are important.
Their excellent electrical insulation properties make them highly suitable for electrical and electronic equipment. They help prevent electrical leakage and improve the safety of electrical systems.
Another advantage is their resistance to environmental factors such as heat, moisture, and chemicals. This durability allows phenolic tubes to maintain performance even in harsh industrial environments.
Phenolic Paper Tubes can also be customized according to specific requirements. Manufacturers can adjust tube diameter, wall thickness, and length to match different applications. The resin formulation can also be modified to improve properties such as flame resistance or chemical resistance.
Although Phenolic Paper Tubes offer many advantages, it is important to consider their application requirements carefully. These tubes are rigid materials and may not be suitable for applications that require high flexibility.
In some cases, the initial cost may be higher than basic plastic alternatives. However, their long service life and superior performance often offset the initial investment by reducing maintenance and replacement costs.
Selecting the appropriate material grade and specifications is important to ensure optimal performance in specific working environments.
As industries continue to demand reliable insulation materials for electrical systems and advanced engineering applications, Phenolic Paper Tubes are expected to remain an important solution. Continuous improvements in resin technology and manufacturing processes are helping to enhance mechanical performance, heat resistance, and environmental sustainability.
With the expansion of industries such as renewable energy, advanced electrical equipment, and modern manufacturing systems, phenolic insulation materials will continue to play a vital role in supporting industrial development.
YILONG INSULATION specializes in manufacturing and supplying high-performance electrical insulation materials for global industrial markets. Our product range includes Phenolic Paper Tubes, phenolic laminated sheets, epoxy fiberglass laminates such as FR4, G10 and G11, as well as CNC machined insulation components.
With professional manufacturing experience and strict quality control, YILONG INSULATION is committed to delivering reliable insulation solutions for electrical, mechanical, and industrial applications worldwide.
