What Is PFCP201 Phenolic Paper Sheet?

PFCP201 Phenolic Paper Sheet, also known as phenolic laminated paper sheet, is manufactured by impregnating electrical insulating paper with phenolic resin, followed by drying and hot pressing. The resulting laminated board combines reliable electrical insulation with good mechanical strength and machinability.

PFCP201 is a practical choice for electrical equipment and industrial components where stable insulation performance, dimensional consistency, and cost efficiency are important.

Main Function of PFCP201

The primary function of PFCP201 Phenolic Paper Sheet is to serve as an insulating structural material in motors and electrical equipment. It helps isolate energized components, reduce the risk of leakage and short circuits, and support the safe and reliable operation of electrical systems.

With its hard and dense structure, PFCP201 offers a useful combination of mechanical properties and electrical insulation. Compared with some epoxy and glass-fiber insulation boards, Phenolic Paper Sheet can provide a more economical solution for applications where extremely high mechanical or thermal performance is not required.

Typical Applications of PFCP201

PFCP201 is commonly machined into insulation supports and structural components used in electrical equipment such as distribution boxes, transformers, and other electrical assemblies. It can be used for insulating strips, support blocks, spacers, and other components that require both insulation and mechanical support.

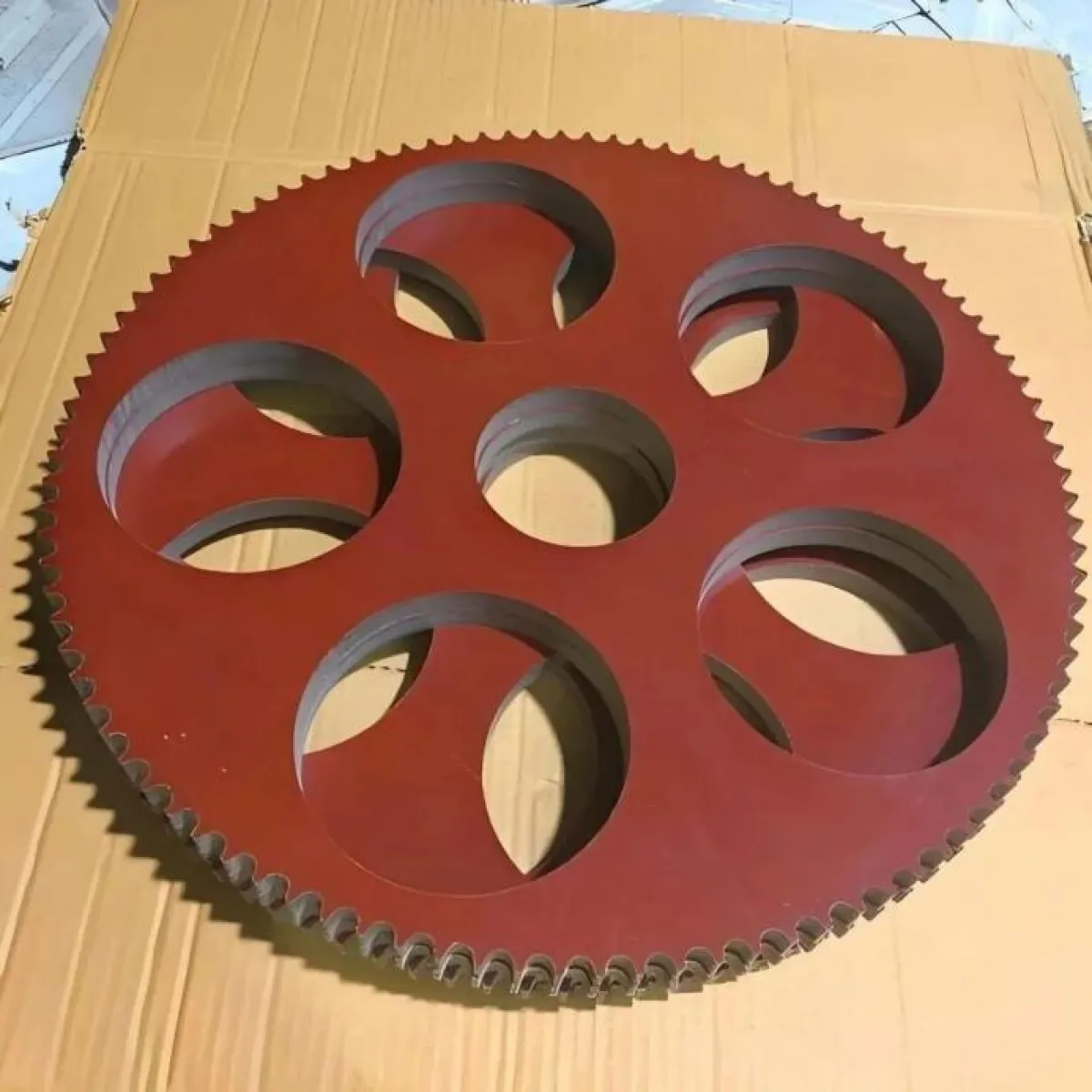

The material is also suitable for insulation washers, bushings, and certain gears. Its relatively hard surface, good dimensional stability, and machinability make it useful for components that require simple mechanical processing.

In electrical switches and knife switches, PFCP201 can be used as switch base plates and insulating support plates. These components help provide electrical isolation while maintaining the mechanical stability of the assembly.

PFCP201 can also be processed into various customized insulation parts according to drawings, including structural plates, partitions, supports, and other non-standard electrical components.

Key Performance Characteristics of PFCP201

PFCP201 provides good and stable electrical insulation performance for general electrical applications. It can also withstand moderate elevated temperatures, making it suitable for many conventional industrial and electrical environments.

The laminate has good mechanical properties, a smooth and flat surface, relatively uniform thickness, and good hardness. These characteristics also contribute to its convenient cutting, drilling, turning, milling, and other machining operations.

Another important advantage is its cost-effectiveness. For electrical insulation applications that do not require the higher temperature resistance or mechanical performance of advanced glass-fiber or epoxy laminates, PFCP201 can be an economical and practical insulation board option.

YILONG PFCP201 Phenolic Paper Sheet

YILONG supplies PFCP201 Phenolic Paper Sheet for electrical insulation and industrial applications, with standard sheets as well as customized machined components available according to customer drawings and requirements.

From insulation boards to precision-machined electrical parts, YILONG focuses on providing materials that balance performance, processing requirements, and overall project cost. This makes PFCP201 a particularly practical choice for applications where reliable basic insulation and good machinability are more important than premium high-temperature performance.

To learn more about PFCP201 Phenolic Paper Sheet and YILONG’s electrical insulation materials, visit www.yilonginsulation.com or contact yilong@yilonginsulation.com. WhatsApp: +86 15866869385.
