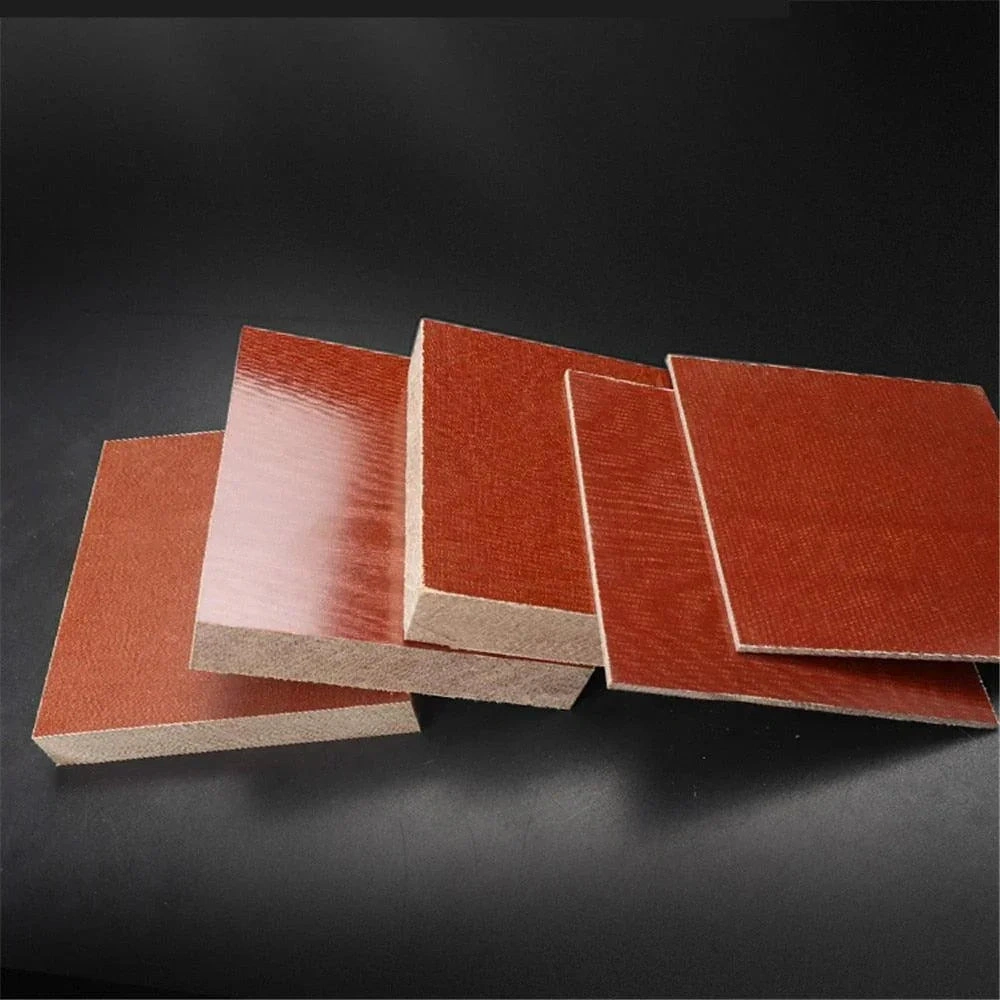

Phenolic Cotton Laminate is a widely used thermoset composite material manufactured by impregnating cotton fabric with phenolic resin and curing under controlled heat and pressure. It is designed to deliver reliable mechanical strength, electrical insulation performance, and machining stability for industrial environments requiring durable structural materials.
YILONG supplies Phenolic Cotton Laminate materials in multiple international grades and specifications to meet diversified requirements in mechanical, electrical, and industrial engineering applications.
Material Characteristics
Phenolic Cotton Laminate is produced using layered cotton fabric reinforcement combined with phenolic resin systems. This structure provides a balanced combination of rigidity, wear resistance, and dimensional stability. The material performs well in environments involving mechanical stress, moderate heat, and transformer oil exposure.
Key advantages:
* Good mechanical strength and impact resistance
* Stable electrical insulation performance
* Low moisture absorption
* Reliable machinability for precision components
* Long-term dimensional stability under load
These properties make it suitable for structural parts, insulation components, and machined industrial elements.
International Standards and Classifications
Phenolic Cotton Laminate is produced in compliance with multiple international standards to ensure consistent performance across different markets and applications.
GOST Standards : 3025, 3026, 3027, 3028
IEC Standards: PFCC201, PFCC202, PFCC203, PFCC204
NEMA Grades: C, CE, L, LE
DIN Standards: HGW2082, HGW2082.5, HGW2083, HGW2083.5
These classifications define differences in fabric structure, resin system, and application suitability, ensuring engineers can select the correct grade for specific mechanical or electrical requirements.
Type Characteristics and Application Differences
Different Phenolic Cotton Laminate grades are designed for specific performance needs:
3025/PFCC201/NEMA C: Primarily used for mechanical structural applications requiring strong wear resistance and machining stability
3027/PFCC202/NEMA CE: Suitable for both mechanical and electrical applications with improved balance of strength and insulation
3026/PFCC203/NEMA L: Made from finer cotton fabric, designed for higher precision machining and structural insulation use
3028/PFCC204/NEMA LE: Offers enhanced performance for applications requiring better dimensional stability and electrical insulation reliability
This classification system allows flexible selection based on mechanical load, insulation requirements, and processing conditions.
Specifications and Processing Range
Phenolic Cotton Laminate is available in a wide range of dimensions to support industrial fabrication needs:
* Thickness range: 0.5 mm – 100 mm
* Standard sheet sizes: 1020 × 1220 mm, 1020 × 2020 mm, 1220 × 2440 mm
The material can be machined into sheets, rods, tubes, and customized components, making it suitable for precision manufacturing and large-scale industrial applications.
Industrial Applications
Phenolic Cotton Laminate is widely used in:
* Electrical insulation structures in transformers and motors
* Mechanical wear parts such as gears, guides, and bushings
* Industrial machinery components
* Electrical switchgear and control systems
* Oil-immersed transformer environments
Its combination of mechanical durability and electrical insulation performance ensures stable operation in demanding industrial conditions.
Market Outlook
With increasing demand for reliable insulation and structural materials in electrical systems, transportation equipment, and industrial automation, Phenolic Cotton Laminate continues to maintain strong market relevance. Its multi-standard availability and flexible machining performance make it a practical solution for global engineering applications.
YILONG remains committed to supplying high-quality Phenolic Cotton Laminate materials with stable performance, diversified grades, and support for industrial processing requirements. Don’t hesitate to reach out for more information. Email: yilong@yilonginsulation.com, WhatsApp: 86 15866869385.
