PEEK is a special engineering plastic honored as "the King of Plastics".

In the field of engineering plastics, one material stands out with outstanding comprehensive performance, which is Polyetheretherketone (PEEK). As a semi-crystalline thermoplastic polymer, it possesses nearly flawless overall properties and serves as an irreplaceable core material in a wide range of cutting-edge industries.

Polyetheretherketone (abbreviated as PEEK) is an aromatic semi-crystalline linear thermoplastic polymer composed of repeating Poly-Aryl-Ether-Ketone (PAEK) units. PEEK features a regular molecular structure containing benzene rings, ether linkages and carbonyl groups, where para-phenylene groups are connected via oxygen bridges (ether and ketone bonds). Its unique molecular structure endows PEEK with prominent properties including heat resistance, radiation resistance, chemical resistance and high mechanical strength. Benefiting from its superior comprehensive performance, PEEK is extensively applied in aerospace, electronics and electrical engineering, biomedicine, automotive manufacturing, petrochemical and other sectors.

I. Core Properties: Outperforming Metals and Ordinary Plastics

The performance advantages of PEEK can be summarized as high temperature resistance, high strength, stable performance and multi-resistance capacity.

Ultra-high Temperature Resistance

Continuous operating temperature: Capable of long-term stable operation at 260°C

Short-term peak heat resistance: Withstands instantaneous temperatures above 300°C

Glass transition temperature: Reaches 143°C, maintaining complete shape and mechanical strength under high-temperature conditions

Excellent Mechanical Strength

It delivers high tensile strength, rigidity and toughness comparable to alloy materials. It boasts exceptional fatigue resistance and creep resistance, resulting in negligible deformation under long-term sustained load.

Outstanding Chemical Corrosion Resistance

It resists erosion by most chemical substances including various organic solvents, oils, acids and alkalis, with only a few strong oxidizing acids such as concentrated sulfuric acid as exceptions. This characteristic makes it an ideal material for chemical and oil & gas industries.

Superior Wear Resistance and Self-Lubricating Performance

It has a low friction coefficient and excellent wear resistance. It can be fabricated into moving components such as bearings and gears without additional lubrication, making it an ideal material to replace metal with plastic.

Excellent Dimensional Stability

It features ultra-low moisture absorption rate; temperature and humidity fluctuations exert minimal impact on its dimensions, supporting the production of high-precision machined parts.

Reliable Flame Retardancy, Low Smoke and Low Toxicity

It is inherently flame retardant with UL94 V-0 rating. It generates extremely low smoke and low-toxic gas during combustion, complying with strict safety standards for aerospace and rail transit industries.

Excellent Radiation Resistance and Electrical Insulation Performance

It retains stable performance under irradiation of high-dose gamma rays and electron beams without property degradation. Meanwhile, it acts as an excellent electrical insulator with stable dielectric properties.

Biocompatibility

Certified medical-grade PEEK is safe for human bodies and suitable for long-term implantation without tissue rejection reaction, making it a revolutionary material for orthopedics and dentistry.

II. Wide Application Scenarios: From Human Implants to Deep Space Exploration

Relying on the above premium comprehensive properties, PEEK functions as a key structural material in multiple high-end fields:

Aerospace: Applied to manufacture aircraft engine parts, interior components and electrical connectors to reduce overall weight and withstand extreme service environments.

Medical Devices: Serves as the core material for artificial bones, spinal fusion cages and dental implants. Its elastic modulus is close to human bone, effectively avoiding the stress shielding effect.

Automotive Industry: Used for high-temperature and wear-resistant components around engines, transmission systems and braking systems to facilitate vehicle lightweighting.

Electronics & Electrical: Manufactured into chip carriers, insulating films and connectors that maintain stable performance under high temperature and high frequency conditions.

Energy & Chemical Industry: Applied for sealing parts in oil and gas exploitation, chemical pump valves and compressor components to resist harsh corrosive chemical environments.

III. Summary and Prospect

PEEK integrates excellent properties including high temperature resistance, high mechanical strength, corrosion resistance and easy machinability, perfectly filling the performance gap between traditional plastics, metals and ceramics. Although its high raw material cost limits its application in general industries, it is undoubtedly one of the ultimate solutions for high-value cutting-edge industries with extreme performance requirements.

With the advancement of manufacturing technology and gradual cost optimization, the application scope of PEEK keeps expanding, continuously driving modern industries toward lighter, stronger and more durable development. It is not only an outstanding achievement in material science, but also an important cornerstone for humans to overcome technical difficulties and explore unknown fields.

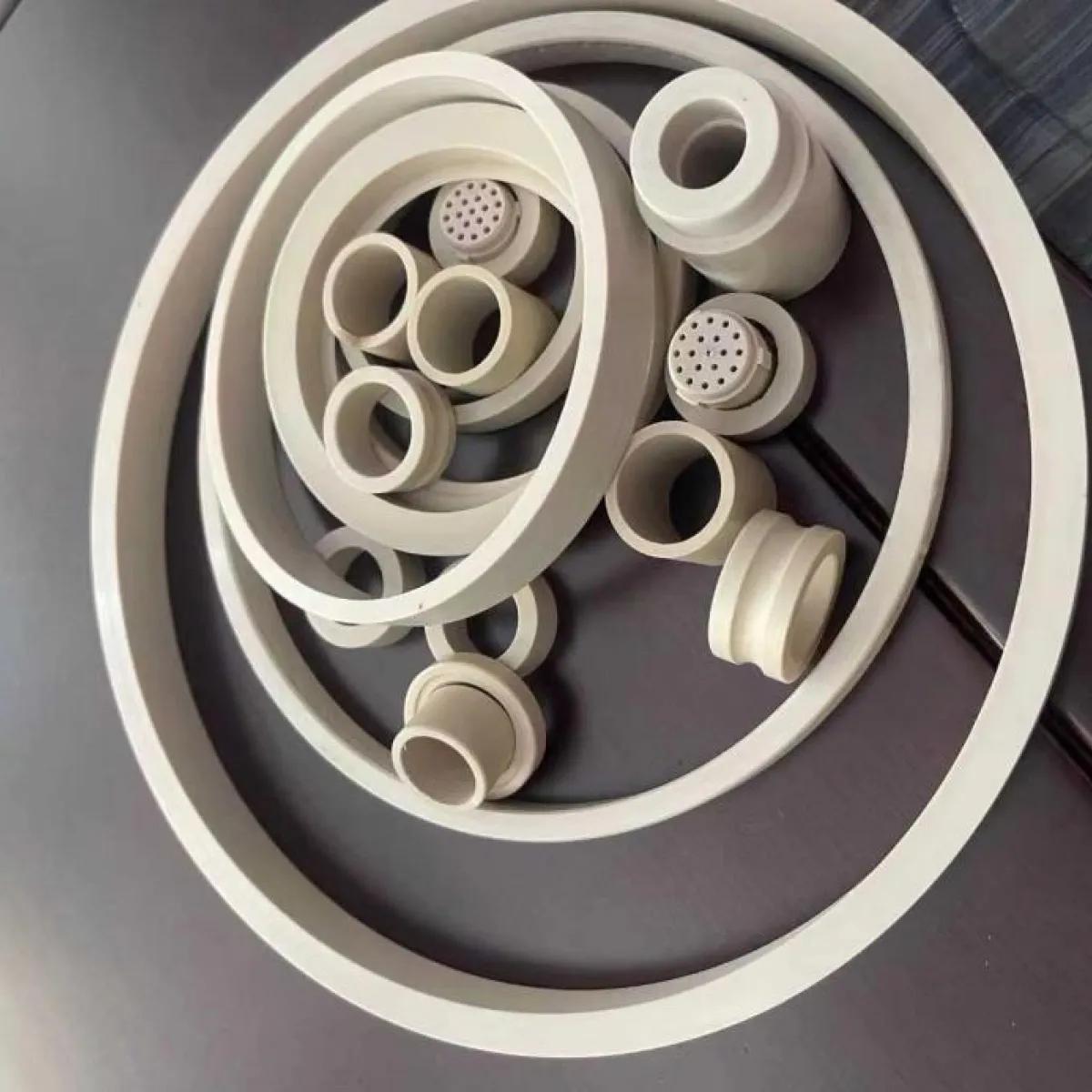

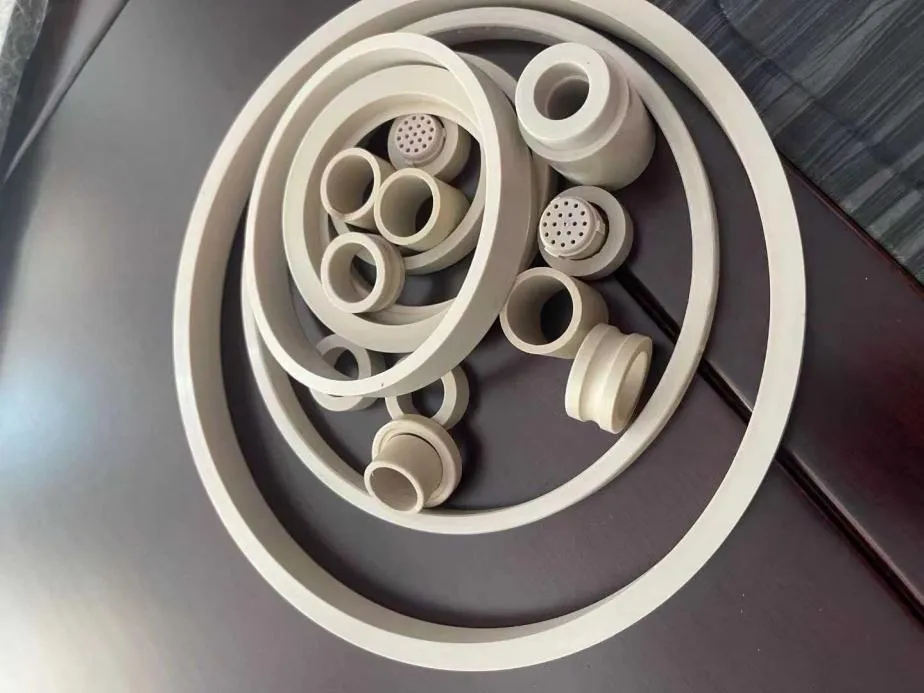

YILONG supplies full-spec PEEK plates, rods, tubes and precision machined parts, supporting customized processing and formula modification for aerospace, medical, automotive and new energy projects. If you need technical data sheets, free sample testing or bulk order quotations, feel free to contact our professional sales team:
