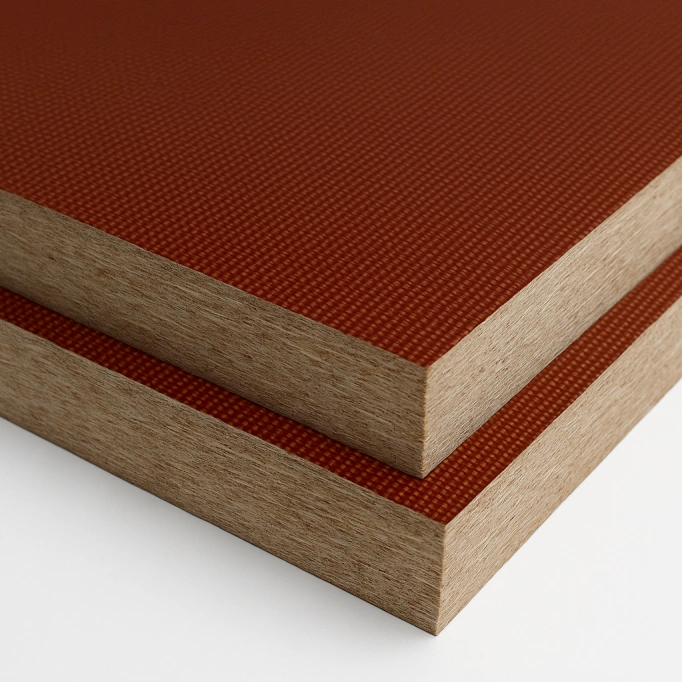

NEMA LE Phenolic Cotton Laminate is a high-performance thermoset insulation material manufactured from fine linen or cotton fabric reinforced with phenolic resin under controlled heat and pressure. It is designed to provide improved electrical properties, stable mechanical strength, and excellent machinability for precision industrial applications.
YILONG supplies NEMA LE Phenolic Cotton Laminate for customers requiring reliable insulation materials with good dimensional accuracy and consistent processing performance.
Material Structure and Performance Characteristics
NEMA LE Phenolic Cotton Laminate is produced by impregnating tightly woven linen or cotton fabric with phenolic resin, followed by high-pressure and high-temperature curing. This process creates a dense thermoset structure with stable mechanical and electrical performance.
Compared with coarse canvas-based phenolic grades, NEMA LE features a finer fabric structure, which improves surface finish quality and enhances machining precision. This makes it particularly suitable for applications requiring detailed shaping and tight tolerances.
Key performance characteristics
● Stable electrical insulation performance
● Good mechanical strength and rigidity
● Low moisture absorption for improved dimensional stability
● Smooth surface quality suitable for precision parts
● Reliable wear resistance in industrial environments
● Electrical and Mechanical Performance Advantages
NEMA LE Phenolic Cotton Laminate provides strong electrical insulation properties, making it suitable for components used in electrical systems, control equipment, and insulating assemblies. Its stable dielectric behavior supports safe operation in low and medium voltage applications.
Mechanically, the material offers good compressive and flexural strength, allowing it to maintain structural integrity under load. Its balanced mechanical profile makes it suitable for both structural and functional components in industrial equipment.
Machining and Fabrication Benefits
One of the key advantages of NEMA LE Phenolic Cotton Laminate is its excellent machinability. Due to its fine fabric structure, the material can be processed with high precision using standard machining methods such as milling, drilling, turning, and contour cutting.
It is especially suitable for small, detailed, or complex components where surface quality and dimensional accuracy are critical. Compared with coarser phenolic laminates, NEMA LE produces cleaner edges and more stable machining results.
Typical Industrial Applications
● Electrical insulating components
● Precision bushings and spacers
● Gears, pulleys, and mechanical transmission parts
● Relay bases and electrical assemblies
● Guide components and support structures
● Industrial control system parts
Its combination of electrical insulation and machinability makes it suitable for both mechanical and electrical engineering applications.
Industrial Value and Application Trends
As industrial systems continue to demand higher precision, better insulation reliability, and improved machining efficiency, NEMA LE Phenolic Cotton Laminate remains an important material choice. It is particularly valued in applications where dimensional stability and surface quality are critical to performance.
If you are looking for reliable NEMA LE Phenolic Cotton Laminate products or customized insulation solutions, feel free to contact YILONG,email: yilong@yilonginsulation.com
