Introduction to G10 and Phenolic Sheets in CNC Machining
CNC machining has become a vital process for crafting precision components from G10 Epoxy Sheets and Phenolic Cotton Sheets. These high-performance materials are valued for their mechanical strength, dimensional stability, and superior electrical insulation, making them ideal for applications that demand tight tolerances and consistent performance. Using computer-controlled cutting tools, CNC machines can create intricate geometries, complex features, and high-quality finishes that meet the stringent requirements of aerospace, electronics, automotive, and industrial sectors.
Material Composition and Properties

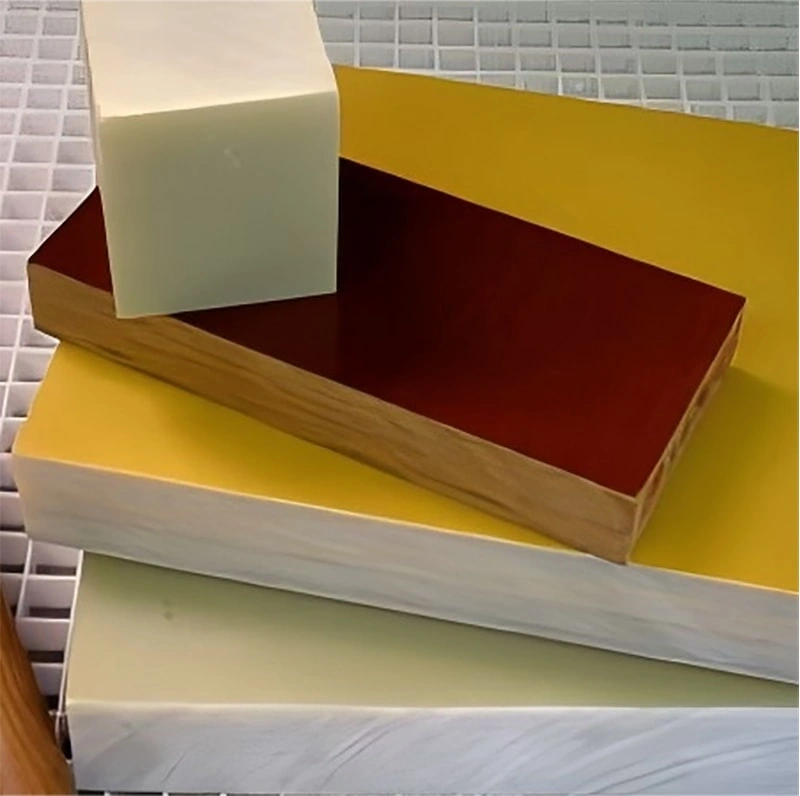

G10 Epoxy Sheets
G10 Epoxy Sheets are composed of woven fiberglass layers embedded in an epoxy resin matrix. The manufacturing process involves stacking multiple fiberglass cloth layers, impregnating them with epoxy, and curing under high temperature and pressure. This results in a dense, homogeneous material with excellent mechanical strength, electrical insulation, and low moisture absorption. G10 sheets also offer dimensional stability across a wide temperature range and are easily machinable, making them suitable for precise cutting, drilling, and milling.
Phenolic Cotton Sheets
Phenolic Cotton Sheets are made by impregnating cotton fabric layers with phenolic resin and compressing them under heat to form a durable laminate. The cotton fibers provide mechanical toughness, while the phenolic resin delivers chemical resistance, electrical insulation, and heat resistance. Phenolic laminates maintain dimensional stability under load, resist creep and deformation, and exhibit self-extinguishing properties, which is crucial in industrial and electrical applications.
Applications Across Industries
G10 Epoxy Sheets are widely used in aerospace components, electrical switchgear, transformers, circuit boards, and industrial tooling, where strength and insulation properties are critical. Phenolic Cotton Sheets find applications in automotive and aerospace structural parts, electrical panels, insulating components, gears, bearings, and seals, valued for their wear resistance and stability in harsh environments.
CNC Machining Techniques for G10 and Phenolic Sheets
Tooling and Cutting Strategies
Machining these materials requires specialized tools and techniques. Carbide end mills with polished cutting edges are preferred to reduce delamination and achieve clean cuts, while high-speed steel (HSS) tools are suitable for less demanding operations. Effective climb milling, proper feed rates, cutting speeds, and coolant application are critical to managing heat and chip removal, ensuring dimensional accuracy and prolonging tool life.
Precision Machining
Advanced CNC machining techniques, particularly multi-axis and 5-axis machining, enable the creation of complex geometries, undercuts, and intricate features that are difficult with conventional methods. Optimized toolpaths and rigid machine setups reduce vibration and ensure consistent cutting forces, achieving superior surface finishes and precise tolerances essential for high-performance components.
Overcoming Material-Specific Challenges
The abrasive nature of G10 and phenolic laminates accelerates tool wear, requiring frequent monitoring and tool replacement. Tool wear compensation and adaptive feed control help maintain consistent cutting conditions. Delamination, especially in thin sections, can be mitigated by supporting the workpiece with backing plates or sacrificial layers and using cutting tools specifically designed for composite materials.
Advantages of CNC Machining G10 and Phenolic Sheets
Precision and Repeatability
CNC machining delivers micron-level accuracy and repeatable results, ensuring each component meets exact specifications. This precision is vital in industries like aerospace and electronics, where tight tolerances are mandatory for safety and functionality.
Design Flexibility and Customization
CNC processes allow designers to explore complex contours, internal cavities, and customized surface textures. Multi-functional parts can be produced in a single setup, integrating structural and insulation features, reducing assembly steps, and enhancing overall product reliability.
Cost-Effectiveness for Small to Medium Production Runs
Despite higher initial setup costs, CNC machining is economical for small to medium batch production. Rapid design changes, minimal material waste, and reduced labor costs make CNC machining particularly advantageous when working with high-value materials like G10 Epoxy Sheets. The precision and repeatability of CNC processes also ensure consistent quality, further optimizing production efficiency.
Cost Efficiency in Small to Medium Runs
CNC machining offers notable cost advantages for small to medium production runs of G10 epoxy and phenolic parts. Its flexibility allows quick changes between designs without expensive tooling, reducing setup costs. The precision of CNC processes minimizes material waste and defects, while automation lowers labor needs. For high-value materials like G10, this results in consistent, high-quality parts at a reasonable production cost.
Conclusion
CNC machining of G10 epoxy and Phenolic Cotton Sheets enables the production of high-performance, precision components for a wide range of industries. By leveraging specialized tooling, multi-axis machining, and optimized cutting strategies, manufacturers can achieve unparalleled accuracy, repeatability, and functionality. As technological demands increase, CNC machining of these advanced laminates will continue to play a pivotal role in creating reliable, high-quality parts for modern engineering applications.
For more information about G10 Epoxy Sheets, Phenolic Cotton Sheets, and CNC machining solutions, contact YILONG INSULATION at YILONG@YIONGINSULATION.COM and visit WWW.YILONGINSULATION.COM. Our experts can provide tailored advice and support to help you select the optimal materials and processes for your precision manufacturing needs.
