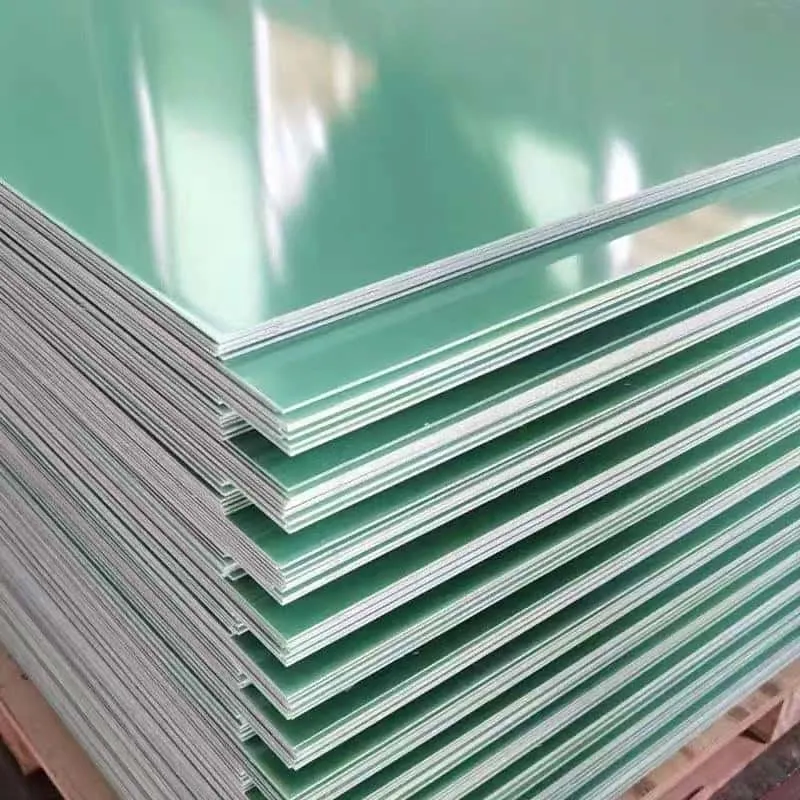

FR4 is a multipurpose glass epoxy laminate that features flame-retardant properties, as indicated by the letters “FR” in its name. It is often the substrate material of choice for electrical insulation, recognizable by its signature green color. The material’s low coefficient of thermal expansion allows it to resist contraction and expansion under exposure to fluctuating operating temperatures, making it ideal for high-temperature applications. It’s exceptional dielectric properties also contribute to its capability as an insulator.
FR4 has no moisture absorbing properties, so it will not expand or contract when humidity changes and is not affected by direct exposure to water, making it excellent for marine components.
Composition of FR4
Fiberglass Cloth
The base of FR4 is fiberglass cloth, which gives it strength and dimensional stability. The cloth is woven into thin sheets, which helps the board stay strong and maintain its shape. Without this, the board could bend or break easily.
Epoxy Resin
The following important part is epoxy resin. This resin binds the fiberglass cloth together, making the whole structure solid. It also makes FR4 a flame-retardant material, which is vital in electronics. Besides fire protection, epoxy resin provides excellent electrical insulation. This helps keep electric currents where they should be, preventing short circuits.
Curing Agents
Curing agents harden the epoxy resin and give it stability. These chemicals ensure the resin sets properly, making the material more robust and reliable. Without curing agents, the board wouldn't be as stable.
Fillers
Fillers are added to improve the performance of FR4. They help make the material more durable and sometimes reduce production costs. Fillers also make the laminate easier to work with during the manufacturing process.
Fiberglass cloth, epoxy resin, curing agents, and fillers create a robust, flame-resistant material perfect for electronic boards.
Key Properties
FR4 material is well known for its many strong qualities, which make it perfect for use in Printed Circuit Boards (PCBs).
Electrical Insulation
Mechanical Strength
Thermal Stability
Moisture Absorption Rate
Flame Retardant
Common Applications
Printed Circuit Boards (PCBs): FR-4 is the primary material used for PCBs in electronic devices due to its dielectric properties, thermal resistance, and mechanical strength.
Electrical Insulators: Its high electrical insulation makes it suitable for use as an insulator in transformers, electric motors, and other electrical equipment.
Communication Devices: FR-4 is used in the manufacturing of components for communication devices such as antennas, signal amplifiers, and routers.
Computer Hardware: It is found in computer motherboards, power supplies, and other internal hardware components.
Consumer Electronics: FR-4 is used in a variety of consumer electronics, including smartphones, televisions, and home appliances.
Industrial Electronics: The material’s durability and resistance to harsh environments make it ideal for industrial control systems.
Medical Devices: FR-4’s reliability and safety features are beneficial in medical electronic devices like imaging equipment and patient monitoring systems.
These applications benefit from FR-4’s flame retardancy, stability, and reliability, making it a cornerstone material in the electronics industry
YILONG: Your Custom Fabricator for FR4
FR4 is a flame-retardant material used for various components in electronics and industrial or marine applications. Flame Retardant 4 is known for its good dielectric properties and acts as a good insulator for electronics. It withstands high temperatures, temperature fluctuations, and humidity and moisture exposure without expanding or contracting. Flame Retardant 4 can also be machined, making it ideal for use in mass production.
YILONG fabricate and supply FR4 for use in electronics, marine applications, and more. Our CNC machines provide high-precision components with fast turnarounds in any production volume. We can custom-fabricate a range of nonmetallic materials and provide wear solutions, bearings, bushings, plastic forming, and paper and film fabrication.
Contact us at sales@yilonginsulation.com to learn more about our FR4 fabrication capabilities.
