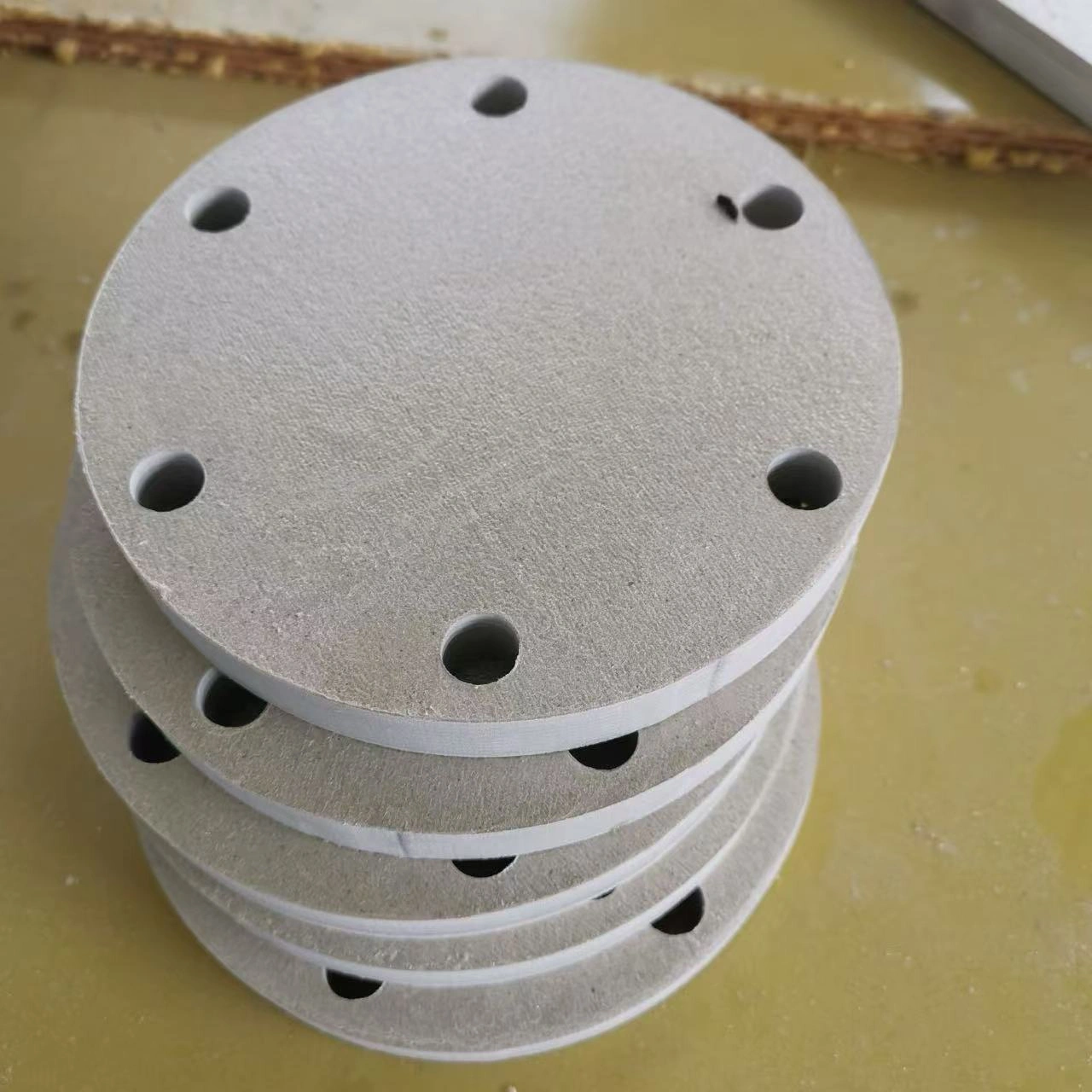

Introduction
Mica Board is manufactured by bonding mica paper with organic silicone adhesive, followed by heating and hot pressing. It is a high-performance electrical insulation and thermal insulation material. The available colors are typically gold and white.
What Is Mica Paper and Organic Silicone Adhesive
Mica paper is produced using natural mica as the raw material. It is processed through chemical or mechanical pulping into paper sheets and then slit and rewound into rolls.
Organic silicone adhesive refers to a compound made from silicone rubber, silicone oil, silicone resin, along with fillers and various additives. It can be formulated as either a single-component or two-component adhesive system.
Product Characteristics
HP-5 rigid white Mica Board is a high-strength insulating sheet with a silver-white appearance. It has a continuous operating temperature rating of 500°C and can withstand short-term exposure up to 850°C.
HP-8 rigid gold Mica Board has a golden appearance. It offers a higher thermal resistance, with a continuous operating temperature of 850°C and short-term resistance up to 1050°C.
Mica Board provides excellent high-temperature insulation performance and can withstand temperatures up to approximately 1000°C in certain applications. Among high-temperature insulating materials, it offers a very competitive cost-performance ratio.
It also features excellent electrical insulation properties, with standard dielectric breakdown strength reaching up to 20 kV/mm under typical conditions.
HP-5 rigid Mica Board is a high-strength sheet material that can maintain its original performance even under high-temperature working conditions.
Application Areas
Household Appliances
Electric irons, hair dryers, microwave ovens, electric heaters, and other heating appliances.
Metallurgy and Chemical Industry
Power frequency furnaces, medium frequency furnaces, arc furnaces, and injection molding machines used in metallurgical processes.
Industrial Electronics
Electron tubes, transformers, capacitors, and other electrical and electronic components.
New Energy Industry
Solar energy systems, wind power equipment, and electric vehicle battery packs.
Mica Board is widely used across industries that require high-temperature resistance and reliable electrical insulation performance. For further technical details, product specifications, or customized solutions, please feel free to contact YILONG. Our engineering team is ready to assist you with material selection and application support.
