Definition and Overview

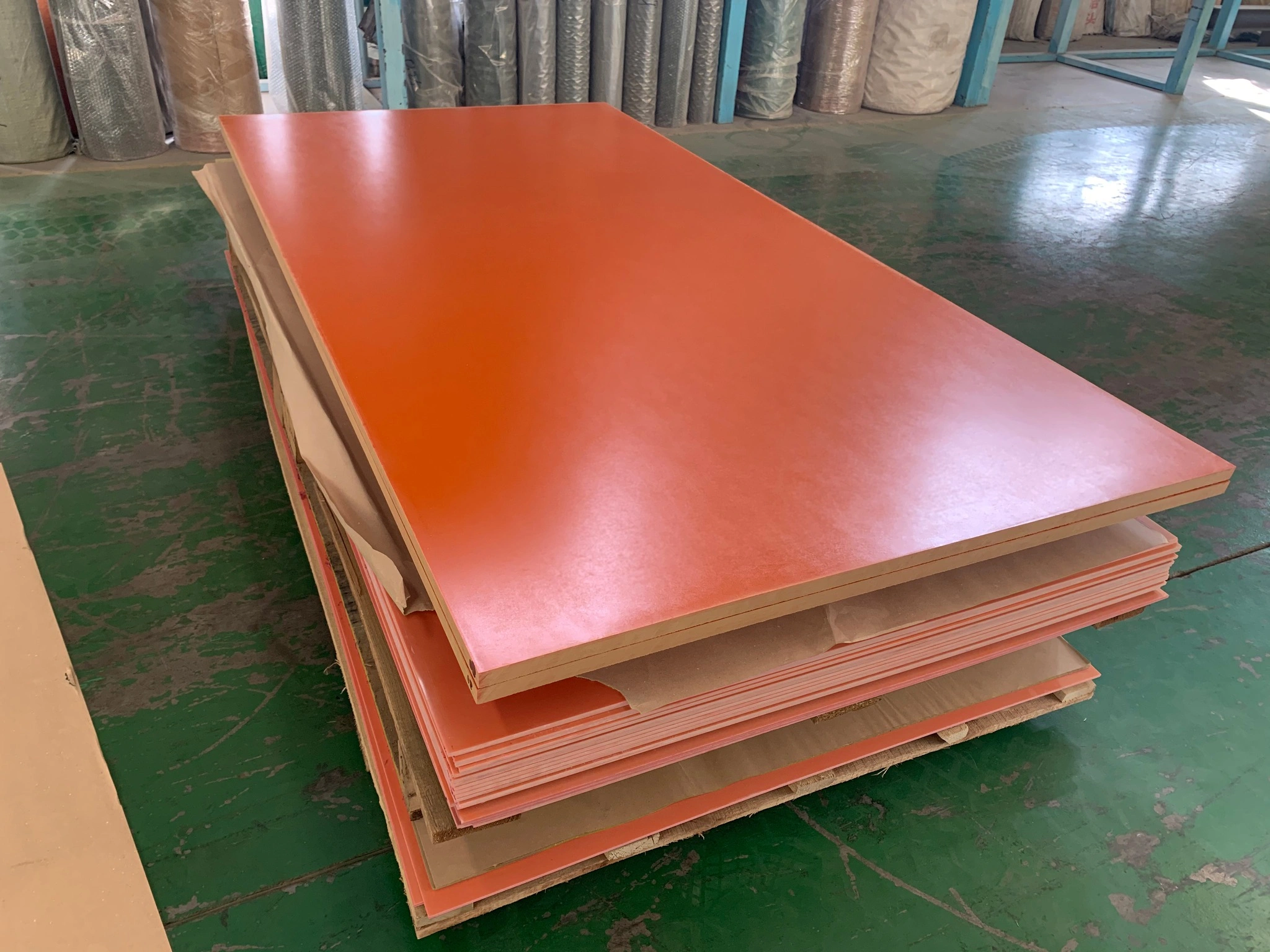

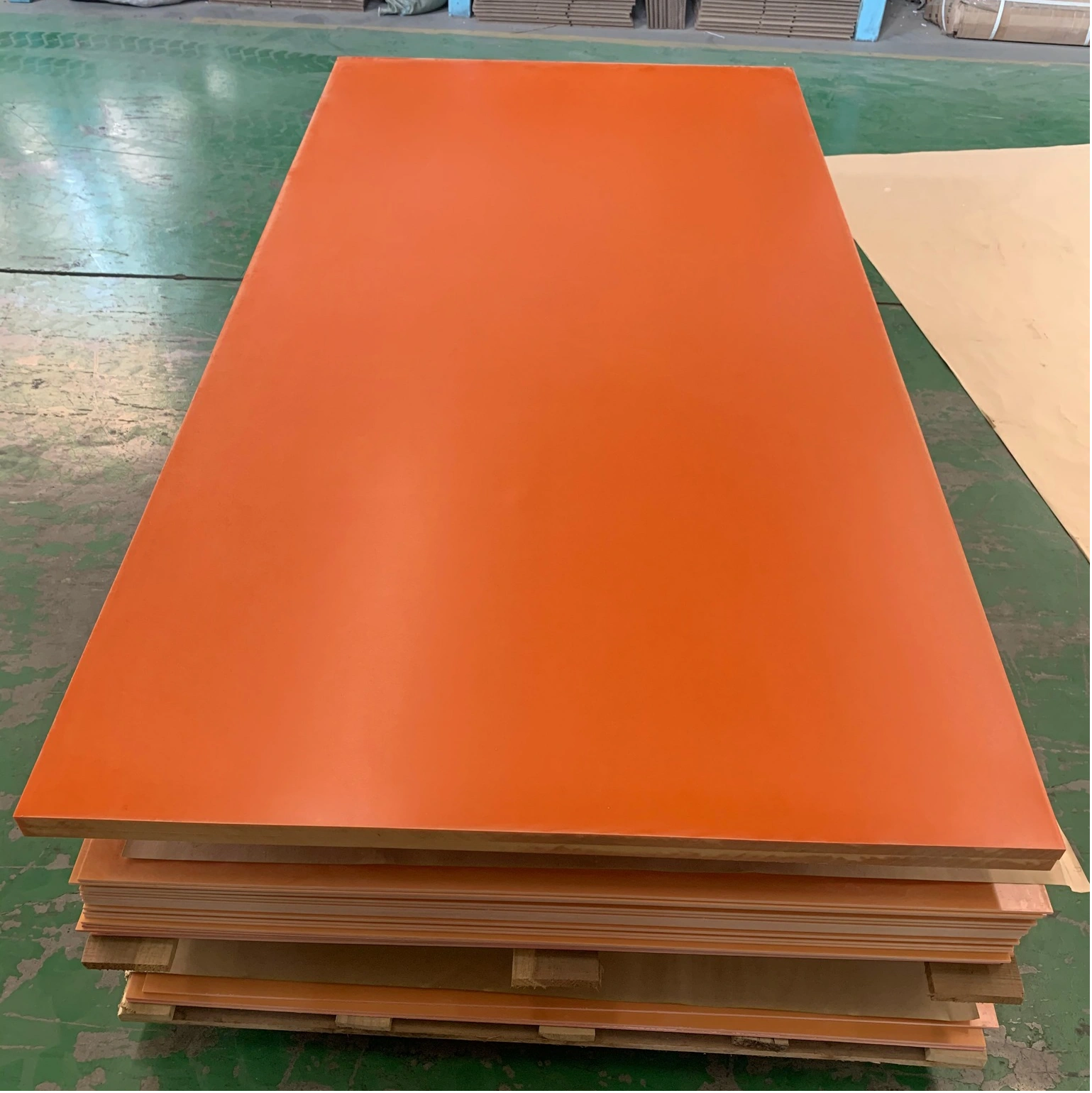

3021 Phenolic Paper Laminates are high-performance composite materials produced by impregnating cellulose-based paper with phenolic resin, followed by a controlled hot-pressing process. These laminates are widely used in electrical insulation and mechanical engineering due to their reliability, durability, and cost-effectiveness. Compared to fabric-based phenolic laminates, 3021 laminates feature a dense, smooth surface that ensures excellent dimensional stability and uniform thickness, making them suitable for components requiring precise machining.
Key Features
3021 Phenolic Paper Laminates offer a range of properties that meet the demanding requirements of industrial applications:
l Excellent Electrical Insulation: High dielectric strength and low power loss ensure safe operation in electrical devices.
l Mechanical Durability: Strong resistance to impact, compression, and wear, making them suitable for structural components.
l Thermal Stability: Maintains performance under moderate operating temperatures, ideal for motors, transformers, and switchgear.
l Chemical Resistance: Resistant to oils, fuels, and mild chemicals, extending component lifespan.
l Dimensional Stability: Minimal warping or shrinkage under mechanical or thermal stress.
Applications in Industry
3021 Phenolic Paper Laminates are widely used in various industries:
l Electrical and Electronics: Insulating sheets for transformers, switchboards, terminal blocks, and printed circuit board supports.
l Mechanical Components: Gears, spacers, bushings, and other parts requiring durability and stability.
l Automotive Industry: Insulating elements in electric motors, starters, sensors, and connectors.
l General Manufacturing: Custom machined components for industrial machinery and consumer devices.
Comparison with 3025 Phenolic Paper Laminates
3021 and 3025 phenolic paper laminates share many characteristics, but there are key differences in density, mechanical strength, and electrical performance. 3025 is generally used for more demanding applications where higher mechanical strength or thermal endurance is required. The following table summarizes their main parameters:
|
Parameter |
3021 Phenolic Paper Laminate |
3025 Phenolic Paper Laminate |
Notes |
|
Density |
1.35–1.40 g/cm³ |
1.45–1.50 g/cm³ |
3025 is denser, offering higher mechanical strength |
|
Tensile Strength |
60–80 MPa |
80–100 MPa |
3025 better for heavy-duty mechanical stress |
|
Flexural Strength |
110–130 MPa |
130–150 MPa |
3025 stronger under bending load |
|
Compressive Strength |
300–350 MPa |
350–400 MPa |
3025 withstands higher compression |
|
Dielectric Strength |
16–20 kV/mm |
18–22 kV/mm |
3025 slightly higher insulation capability |
|
Water Absorption |
≤0.8% |
≤0.5% |
3025 absorbs less moisture, better for humid environments |
|
Operating Temperature |
120–130°C |
130–140°C |
3025 tolerates slightly higher temperatures |
|
Surface Finish |
Smooth |
Slightly rougher |
3021 better for precision machining |
YILONG INSULATION Advantages
YILONG INSULATION’s 3021 Phenolic Paper Laminates are manufactured with strict quality control to ensure uniformity, reliability, and superior performance. Key advantages include:
Consistent Electrical and Mechanical Performance: Reliable insulation and structural support for diverse applications.
Precision Thickness and Flatness: Reduces machining waste and improves assembly efficiency.
Chemical and Thermal Resistance: Suitable for challenging industrial environments.
Sustainable Manufacturing Practices: Ensures consistent quality while minimizing environmental impact.
Conclusion
3021 Phenolic Paper Laminates are a versatile, reliable, and cost-effective material for electrical insulation and mechanical applications. Their smooth surface, dimensional stability, and robust insulation properties make them ideal for transformers, switchgear, and precision-machined components. Compared to 3025, 3021 offers excellent surface finish and cost-effectiveness for general-purpose applications, while 3025 excels in high-strength or high-temperature scenarios. With YILONG INSULATION’s stringent quality standards, 3021 laminates continue to be a trusted choice in the industry.
In the rapidly advancing world of electronic engineering, FR4 Composite Copper Clad Laminates (CCL) have solidified their position as the backbone of printed circuit board (PCB) manufacturing. As technology evolves toward higher performance, miniaturization, and energy efficiency, FR4 CCL continues to serve as a critical enabler of innovation in telecommunications, consumer electronics, automotive systems, and industrial automation.
3021 Phenolic Paper Laminates are high-performance composite materials produced by impregnating cellulose-based paper with phenolic resin, followed by a controlled hot-pressing process. These laminates are widely used in electrical insulation and mechanical engineering due to their reliability, durability, and cost-effectiveness. Compared to fabric-based phenolic laminates, 3021 laminates feature a dense, smooth surface that ensures excellent dimensional stability and uniform thickness, making them suitable for components requiring precise machining.
Phenolic Cotton Cloth Laminated Sheets, also known as textolite sheets or bakelite cotton boards, have long been a cornerstone material in electrical insulation and mechanical engineering applications. By combining the mechanical strength of woven cotton fabric with the chemical durability of phenolic resin, these composites deliver exceptional performance in demanding industrial environments. Engineers, manufacturers, and procurement specialists rely on phenolic cotton laminates for transformer components, electrical equipment insulation, and high-stress mechanical parts. Understanding their properties, applications, and sourcing considerations is essential for optimized industrial design and manufacturing.
In the continuously evolving world of electrical insulation and engineering materials, phenolic laminates remain one of the most widely used thermosetting composites. Among them, Phenolic Paper Laminates and Phenolic Cotton Cloth Laminates stand out as two major categories, each designed to meet specific mechanical and electrical performance requirements. Understanding their differences is crucial for engineers, procurement specialists, and manufacturers when selecting materials for various industrial applications.
POM Sheet and POM Rod are high-performance engineering plastics made from polyoxymethylene. Known in the industry as acetal plastic, POM material, or acetal copolymer/homopolymer, they are widely used in precision manufacturing due to their outstanding strength, wear resistance, and excellent dimensional stability.
In today’s rapidly developing electrical and electronic industries, high-performance insulation materials play a crucial role in ensuring equipment reliability and safety. Among these materials, EPGC308 epoxy fiberglass sheet stands out for its exceptional combination of mechanical, thermal, and electrical properties. Produced by Qingdao YILONG New Materials Co., Ltd., this advanced laminate has become a preferred choice for a wide range of industrial applications.
In today’s fast-paced world of materials science, EPGM203 has emerged as a new-generation glass mat reinforced epoxy laminate known for its exceptional balance of mechanical strength, electrical insulation, thermal stability, and chemical resistance. Developed for high-temperature and high-stress environments, EPGM203 offers engineers and manufacturers a reliable solution where traditional plastics, phenolics, or metals fail to perform. With its superior durability and design flexibility, this material has become a preferred choice in industries such as electrical engineering, automotive manufacturing, construction, and medical equipment.

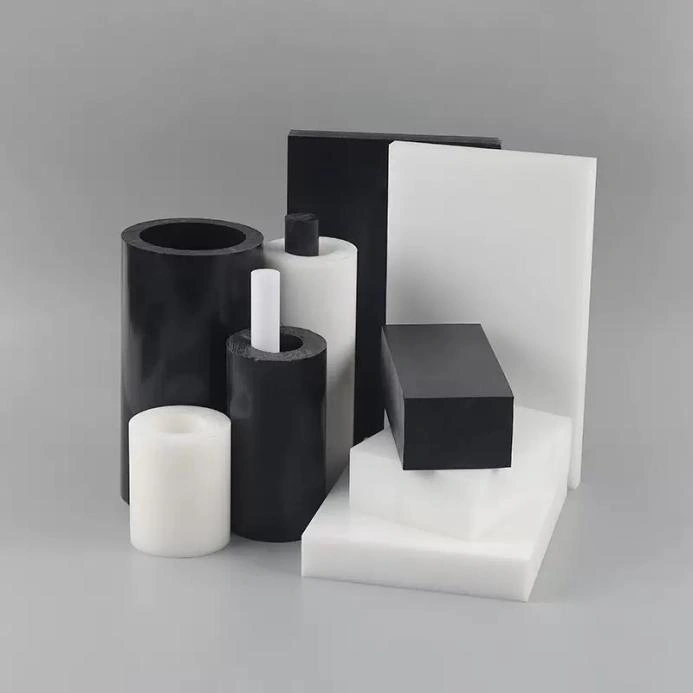

Acetal plastic, also known as polyoxymethylene (POM), is a high-performance engineering thermoplastic widely used across industrial applications. This semi-crystalline material combines excellent dimensional stability with remarkable strength, making it suitable for parts that require stiffness, precision, and durability. Acetal retains its shape under continuous use at elevated temperatures and withstands mechanical stress, impact, and friction-related wear.
