Phenolic Cotton Cloth Laminated Sheets, also known as textolite sheets or bakelite cotton boards, have long been a cornerstone material in electrical insulation and mechanical engineering applications. By combining the mechanical strength of woven cotton fabric with the chemical durability of phenolic resin, these composites deliver exceptional performance in demanding industrial environments. Engineers, manufacturers, and procurement specialists rely on phenolic cotton laminates for transformer components, electrical equipment insulation, and high-stress mechanical parts. Understanding their properties, applications, and sourcing considerations is essential for optimized industrial design and manufacturing.

What Are Phenolic Cotton Cloth Laminated Sheets?

Phenolic Cotton Cloth Laminated Sheets are thermoset composite materials created by layering cotton fabric impregnated with phenolic resin and curing it under controlled heat and pressure. The hot-pressing process typically involves pressures of 7–15 MPa and temperatures of 140–160°C, producing a rigid, homogeneous sheet with cross-linked molecular structures.

High-quality cotton fabric is woven to ensure uniform thickness and density, then saturated with phenolic resin—a thermosetting polymer formed from phenol and formaldehyde. Multiple layers are stacked, compressed, and cured into a single sheet. This process results in a material with excellent mechanical strength, wear resistance, machinability, and electrical insulation properties. Phenolic cotton sheets maintain structural integrity in transformer oil and air environments and perform reliably across a long-term temperature range of -65°C to +105°C. These properties make them ideal for components subject to both mechanical and electrical stresses, including bushings, gears, cams, bearings, and spacers.

Grades and Variants

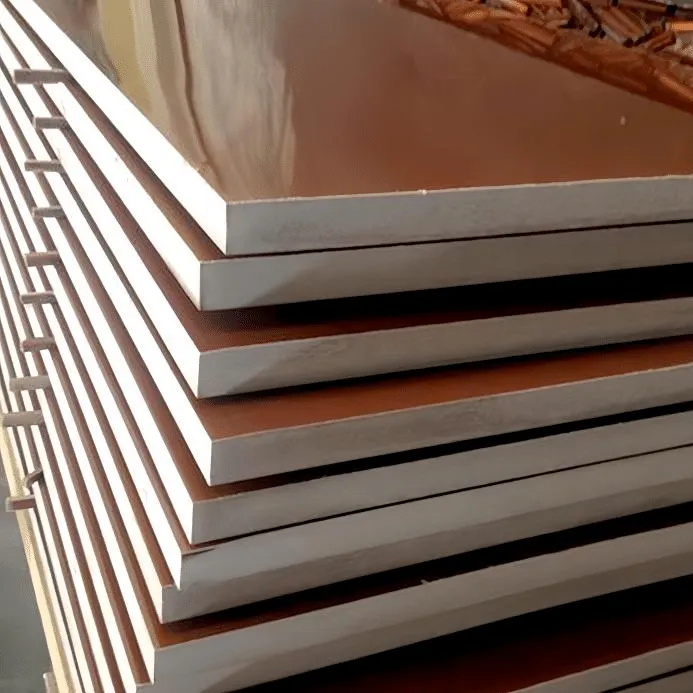

Phenolic cotton laminates are available in several grades and variants tailored for specific applications. Common grades include 3025, 3026, 3027, and 3028.

3025: Coarse cloth, excellent mechanical performance, widely used in general mechanical applications.

3026: Fine cloth, superior mechanical properties for small precision parts.

3027: Coarse cloth, balanced mechanical and electrical performance.

3028: Fine cloth, high electrical insulation for precision components.

Specialized versions include PTFE-enhanced sheets for self-lubricating applications, graphite-filled sheets for thermal conductivity and low-friction components, and MoS2 variants providing solid lubrication under extreme pressures. International standards classify these sheets under IEC 60893-3 (PFCC series) and NEMA CE grade, ensuring global compliance and consistent quality.

Applications of Phenolic Cotton Cloth Laminates

The versatility of Phenolic Cotton Cloth Laminated Sheets spans multiple industries, leveraging mechanical strength, thermal stability, chemical resistance, and electrical insulation.

1. Electrical Insulation:

These sheets are widely used in transformers, motors, generators, and electrical equipment. Grades such as 3025 provide insulation barriers in transformer oil ducts, slot wedges, spacers, and high-voltage equipment. With dielectric strengths ranging from 10–25 KV depending on grade, they maintain reliable performance in varying temperatures and humidity levels. Compared to traditional pressboard, phenolic cotton laminates offer superior mechanical strength, dimensional stability, and precision machining capability.

2. Mechanical Engineering:

Phenolic cotton sheets are employed in gears, pulleys, rollers, guides, bushings, and bearings. Black phenolic laminates offer excellent wear resistance, vibration damping, and low-noise operation. Non-sparking properties make them suitable for explosive environments such as petrochemical and mining industries. Textile machinery components, including shuttles and pickers, benefit from the lightweight strength and low friction of these laminates.

3. Industrial Manufacturing:

Phenolic cotton laminates are used for jigs, fixtures, drilling plates, and precision machining supports. Their dimensional stability ensures accurate positioning, while electrical insulation prevents interference during testing and assembly. Vacuum pump vanes leverage their low friction and wear resistance for extended operational life.

4. Specialized Industrial Applications:

Oil and gas equipment, aerospace components, and automotive structures utilize phenolic cotton laminates for combined electrical insulation, chemical resistance, and mechanical durability. Wear plates, pump parts, and lightweight structural components benefit from high strength-to-weight ratios and fire resistance.

Pricing and Procurement Considerations

Phenolic cotton laminates are competitively priced relative to alternative materials, with typical 3025 sheet costs ranging from $2.50 to $5.50 per kilogram. Price depends on grade, thickness, order quantity, customization, and certifications.

Compared with epoxy glass cloth (FR4/G10), phenolic cotton sheets are 20–40% cheaper per kilogram while offering strong mechanical properties but lower temperature ratings (up to 125°C). Paper-based phenolic laminates are 15–30% less expensive but less durable under mechanical loads. When replacing metal components, phenolic cotton sheets reduce costs by 40–70% on a volume basis and lower shipping weight.

Cost Optimization Strategies:

Choose appropriate grade to avoid over-specification.

Standardize sheet sizes to reduce cutting and lead time costs.

Source directly from manufacturers, particularly in China, for volume pricing and technical support.

Ensure suppliers maintain ISO, UL, or other certification standards for quality assurance.

Technical Properties

Mechanical: Tensile strength ≥120 MPa, compressive strength 150–300 MPa, flexural strength 100–150 MPa, density 1.30–1.45 g/cm³. Excellent machinability supports drilling, cutting, turning, and milling with carbide tooling.

Electrical: Dielectric strength ≥14.2 MV/m perpendicular to lamination, insulation resistance ≥1×10⁶ Ω, stable across operating temperatures. Suitable for transformer oil duct spacers and high-voltage components.

Thermal: Continuous operating temperature -65°C to +105°C, short-term peaks up to 150°C, thermal class E (125°C), low thermal conductivity, and moderate thermal expansion.

Chemical: Resistant to oils, organic solvents, mild acids; limited resistance to strong alkalines. Low water absorption ensures stability in humid or oil-rich environments.

Manufacturing and Quality Control

Production requires precise cotton fabric selection, controlled resin formulation, accurate impregnation, and high-pressure curing. Post-pressing finishing ensures smooth surfaces and precise dimensions. Quality assurance includes visual inspections, mechanical and electrical testing, NDT scans, and compliance with IEC, NEMA, and DIN standards.

Selection and Design Considerations

Phenolic cotton laminates are ideal for applications combining mechanical and electrical demands, wear resistance, dimensional stability, non-sparking requirements, and moderate chemical exposure. Alternative materials such as epoxy glass cloth or high-temperature thermosets are considered when higher voltage, extreme temperatures, or chemical resistance is required. Design guidelines include proper lamination orientation, machining allowances, fastening methods, environmental conditioning, and edge sealing for chemical exposure.

Storage, Handling, and Installation

Sheets should be stored horizontally in controlled temperature and humidity, protected from contamination and UV exposure. Machining requires sharp carbide tools with moderate speeds. Assembly methods include bolt-together, adhesive bonding, and limited press-fit techniques, considering thermal expansion and load distribution.

Maintenance and Longevity

Phenolic cotton components require minimal maintenance but benefit from visual inspections, dimensional checks, cleaning, and optional lubrication. Properly designed mechanical components achieve 5–15 years of service, while electrical insulation parts in transformers can last 20–30 years under normal operating conditions.

Market Trends and Innovations

Future developments focus on enhanced resin formulations for higher temperature operation, nanocomposite reinforcement for improved mechanical and thermal properties, bio-based phenolic resins for sustainability, recycling technologies for thermosets, and integration of sensors for smart monitoring of critical components.

Conclusion

Phenolic Cotton Cloth Laminated Sheets are a mature and versatile material, balancing mechanical strength, electrical insulation, thermal stability, and cost-effectiveness. From standard 3025 grades to specialized PTFE or graphite variants, they serve critical functions across electrical, mechanical, and industrial applications. Success in specifying and applying these materials depends on understanding grade differences, aligning specifications to application needs, working with reliable suppliers, and following best practices for handling, machining, and installation.

YILONG INSULATION provides technical guidance and high-quality phenolic cotton laminates for transformer and electrical equipment manufacturers, helping optimize insulation systems, ensure compliance with international standards, and support reliable, long-lasting industrial performance.
