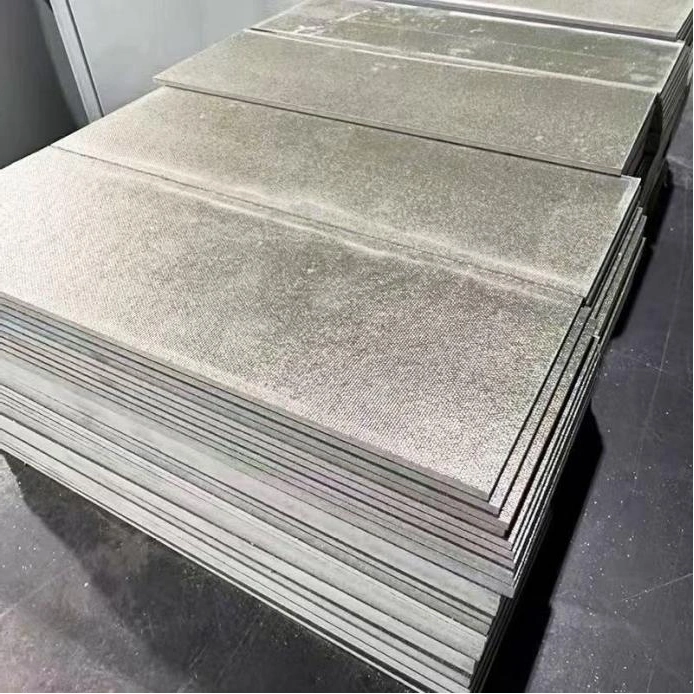

Selecting the proper Mica Sheet thickness is a key decision in electrical insulation, thermal protection, and high-temperature engineering. Although Mica Sheets may look like simple materials, their performance is deeply influenced by one critical factor—thickness. Making the right choice ensures stable operation, improved durability, and long-term safety of your equipment.
Understanding Mica Sheets and Their Benefits
Mica is a naturally occurring mineral widely used for electrical insulation, thermal resistance, and mechanical stability. In modern industry, Mica Sheets are valued for their high dielectric strength, excellent heat tolerance, and low electrical conductivity.
Two types of mica are most commonly used for industrial and electrical insulation:
Muscovite Mica
Known for strong dielectric properties and heat resistance up to around 500°C. Muscovite sheets are used in motors, capacitors, electrical appliances, and general insulation applications.
Phlogopite Mica
Recognized for superior thermal endurance, withstanding temperatures near 900°C. Phlogopite is ideal for furnaces, welding equipment, automotive heat shields, and environments with extreme heat exposure.
Why Mica Sheet Thickness Matters
Mica Sheet thickness directly affects how the material performs in real-world applications. Choosing the right thickness ensures the correct balance between insulation, durability, and flexibility.
Thermal Performance
Thicker Mica Sheets provide improved thermal insulation. In high-temperature environments—such as industrial furnaces or heating devices—thicker sheets help stabilize heat levels and improve energy efficiency.
Electrical Insulation Requirements
Dielectric strength typically increases with thickness. High-voltage equipment, including transformers and electrical reactors, often require thicker sheets to prevent electrical breakdown or arcing.
Mechanical Strength and Durability
A thicker sheet offers greater rigidity and resistance to mechanical stress. When insulation is exposed to friction, vibration, or pressure, a more robust thickness ensures long service life and stability.
Flexibility vs. Rigidity: Finding the Right Balance
Thickness influences how easily the material can bend or conform to complex shapes.
Thinner Mica Sheets remain flexible and are suitable for tight spaces or curved surfaces—for example, in motors or compact electronic devices.
Thicker sheets, while less flexible, offer stronger thermal and electrical protection, making them appropriate for heavy-duty industrial tasks.
How to Select the Proper Mica Sheet Thickness
To determine the correct thickness for your application, consider the following factors:
1. Assess Operating Temperature and Environment
High temperatures require stronger thermal barriers. For extreme heat, phlogopite mica in thicker gauges performs best.
2. Identify Electrical Load and Voltage
Higher voltage levels demand thicker sheets to ensure safe dielectric separation and prevent failure.
3. Determine Flexibility Requirements
If the insulation must bend, wrap, or fit into narrow clearances, a thinner sheet is more practical.
If structural integrity is more important, choose a thicker grade.
4. Compare Cost, Performance, and Availability
Mica Sheet cost varies by grade and thickness. Higher-grade, thicker sheets are more expensive but offer better long-term reliability. Selecting the correct combination ensures both performance and cost-efficiency.
Common Thickness Options and Their Typical Uses
l 0.1–0.3 mm
Highly flexible; used in capacitors, electronic insulation layers, or components with tight bends.
l 0.3–0.5 mm
Suitable for motor insulation, heating appliances, and general electrical applications needing moderate strength.
l 0.5–1.0 mm
A balanced option for thermal insulation, aerospace components, and high-temperature industrial equipment.
l 1.0 mm and above
Designed for heavy-duty uses such as transformers, industrial furnaces, automotive insulation, and high-voltage systems requiring maximum durability.
New Trends in Mica Applications
As industries evolve, Mica Sheets continue to grow in demand. Sectors such as aerospace, electric vehicles, and renewable energy increasingly rely on mica for heat shields, battery insulation, and high-voltage protection. New mica-based composites are also being developed to improve flexibility without compromising thermal or electrical performance.
Conclusion
Selecting the right Mica Sheet thickness ensures your equipment operates efficiently, safely, and reliably. By evaluating temperature exposure, voltage requirements, mechanical conditions, and installation needs, you can make an informed decision that maximizes performance and cost-effectiveness.
For high-quality Mica Sheets, customized thickness options, and fast technical support, YILONG is ready to assist your project needs.
