GPO-3, also named UPGM-3 is a high-performance, fiberglass-reinforced thermoset polyester laminate widely used in electrical and industrial applications. Its excellent arc resistance, flame retardancy, and mechanical strength make it ideal for high-voltage systems, including busbar insulation, switchgear housings, and other critical electrical components. GPO-3 is available in sheets, rods, and custom laminates, offering reliable electrical insulation and dimensional stability under stress.
Here we’ll explore what GPO-3 is, how it compares to FR4, and why it’s trusted by engineers, purchasers, and maintenance professionals in demanding industries.
GPO-3 (or GPO3) is a glass mat-reinforced, thermoset polyester laminate that offers a unique balance of electrical, mechanical, and thermal performance. It is often referred to by the brand name Glastic®, one of the original trade names under which this material was commercialized.
Manufactured by impregnating fiberglass mats with a polyester resin and curing it under heat and pressure, GPO-3 is classified as a UL 94 V-0 flame-retardant material and complies with NEMA GPO-3 standards.

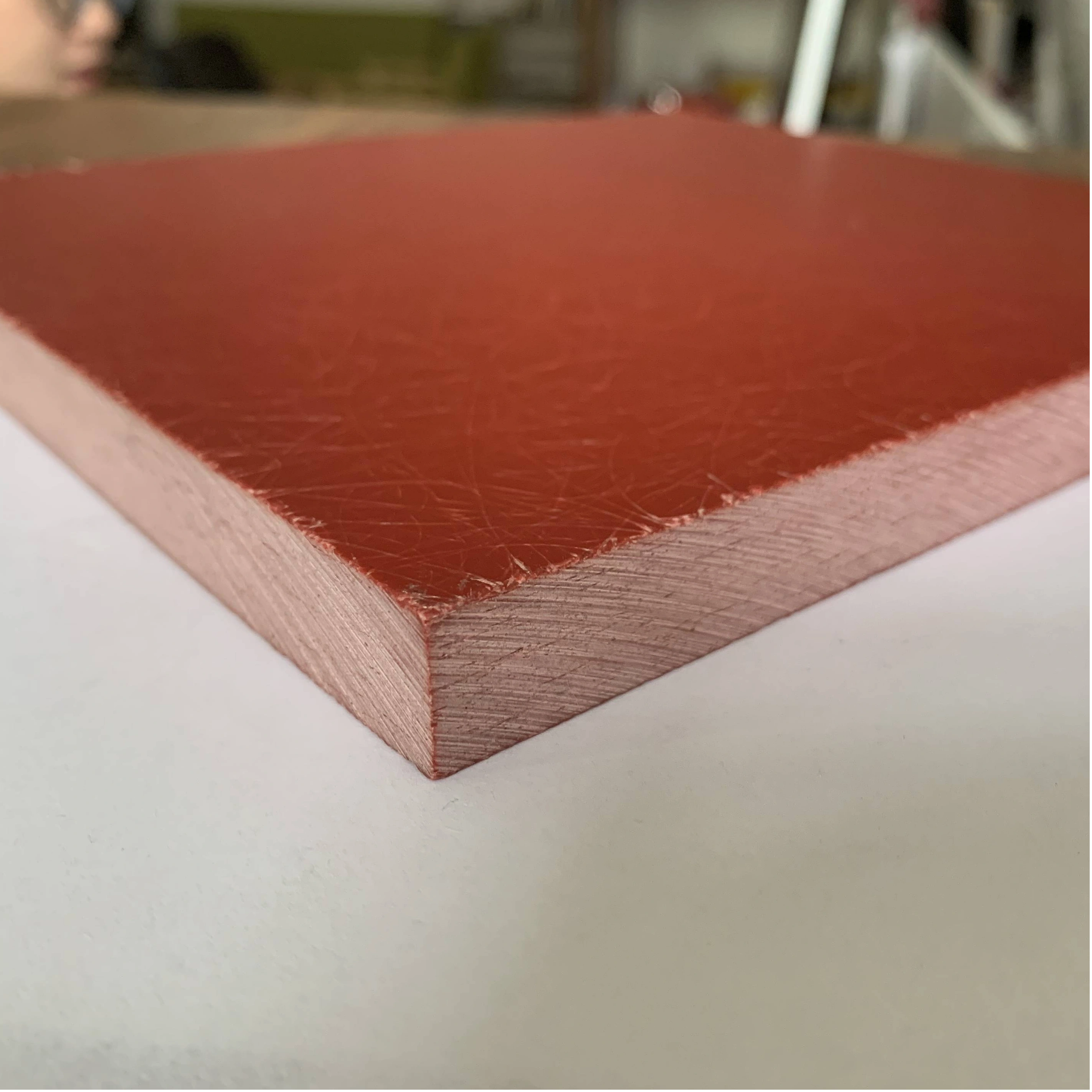

GPO3 Fiberglass Sheet: Flat panels for electrical insulation and structural applications
GPO3 Rod: Used for standoffs, spacers, and turned parts
GPO3 Laminate: Custom-machined plates for structural or thermal isolation
1. Electrical Insulation
l Dielectric strength: 300–500 volts/mil (depending on thickness)
l Excellent tracking and arc resistance (ASTM D495)
UL 94 V-0 flame rating
2. Thermal Performance
l Continuous operating temperature: up to 130°C (265°F)
l Maintains properties under thermal cycling
l Low thermal conductivity, ideal for heat isolation
3. Mechanical Strength
l Flexural strength: ~20,000 psi (ASTM D790)
l Compressive strength: ~30,000 psi (ASTM D695)
l Good impact resistance, shock, and vibration tolerance
4. Dimensional Stability
l Low water absorption (~0.1–0.25% by weight)
l Resists warping, swelling, or deformation
l Stable across wide temperature and voltage variations
5. Chemical Resistance
l Resistant to oils, lubricants, mild acids/alkalis, and most cleaning solvents
l Suitable for industrial washdown and chemical environments
GPO-3 is commonly used in electrical, industrial, and power distribution systems due to its excellent arc resistance, dielectric strength, and flame-retardant properties. Here are the most common applications:
l Busbar insulation barriers
l Arc chutes and arc barriers
l Switchgear insulation panels
l Electrical panelboard backers
l Terminal blocks and standoffs
l Transformer coil supports
l Motor control center panels
l Mounting brackets and structural supports
l Insulating spacers and washers
l Arc flash isolation panels
While GPO-3 and FR4 are both fiberglass-reinforced laminates, they serve very different roles. Here’s a breakdown of how they compare:
|
Property |
GPO-3 |
FR4 |
|
Reinforcement |
Fiberglass |
Woven Fiberglass cloth |
|
Resin System |
Polyester |
Epoxy |
|
Dielectric Strength |
Higher in thicker sections |
Good across thicknesses |
|
Arc Resistance |
Excellent |
Moderate |
|
Mechanical Strength |
Very high compressive & flexural |
High tensile, less copressive |
|
Moisture Resistance |
Very low absorption |
Moderate |
|
Thermal Resistance |
Higher Temperature resistance |
Typically rated to ~130℃ |
|
Machinability |
Easy |
Brittle, prone to edge chipping |
|
Contact yilong@yilonginsulation for specific technical data. |
||
When specifying GPO-3 for your project, consider the following:
l Thickness requirements: Thicker sheets provide higher dielectric and mechanical strength.
l Form factor: Choose sheet, rod, or laminate based on final part geometry.
l Certifications: Look for materials rated to UL 94 V-0 and compliant with NEMA GPO-3.
l Machining capacity: Discuss your needs with a supplier who can offer cut-to-size or CNC-prepped blanks.
