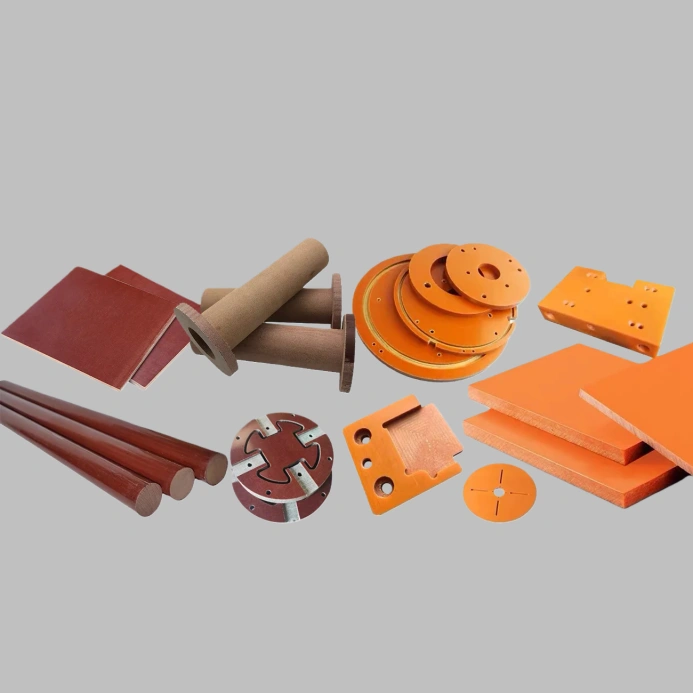

In the continuously evolving world of electrical insulation and engineering materials, phenolic laminates remain one of the most widely used thermosetting composites. Among them, Phenolic Paper Laminates and Phenolic Cotton Cloth Laminates stand out as two major categories, each designed to meet specific mechanical and electrical performance requirements. Understanding their differences is crucial for engineers, procurement specialists, and manufacturers when selecting materials for various industrial applications.
Material Composition and Manufacturing Process
Phenolic Paper Laminates are made by impregnating layers of cellulose paper with phenolic resin, followed by hot pressing under high temperature and pressure. This process produces a rigid, smooth, and electrically insulating sheet with excellent dielectric strength and dimensional stability. Typical grades include PFCP and XPC, often used for electrical insulation, switchboards, and transformer components.
Phenolic Cotton Cloth Laminates, on the other hand, are produced using woven cotton fabric impregnated with phenolic resin. The cloth reinforcement provides superior mechanical strength, wear resistance, and impact toughness compared to paper-based materials. Common designations such as PFCC, C and CE grades, or commercial names like Tufnol and Micarta, are frequently used in mechanical and structural applications where both durability and electrical insulation are required.
Performance Comparison and Key Properties
The major distinction between Phenolic Paper and Phenolic Cotton Cloth Laminates lies in the balance between electrical insulation and mechanical strength.
Electrical Properties: Phenolic Paper Laminates offer better electrical insulation and are ideal for low-voltage electrical equipment, printed wiring backings, and insulating bushings.
Mechanical Strength: Phenolic Cotton Cloth Laminates provide higher tensile and flexural strength, allowing them to perform reliably in gears, bearings, jigs, and high-load mechanical parts.
Machinability and Dimensional Stability: Cotton-based laminates machine easily without cracking or delamination, while paper-based laminates, though easier to punch and cut, are more brittle.
Thermal Resistance: Both materials perform well up to about 120°C, but cotton-based laminates exhibit better heat resistance and fatigue endurance under dynamic loads.
Industrial Applications and Market Trends
In the electronics sector, Phenolic Paper Laminates continue to dominate applications in control panels, switchgear, and small electrical devices due to their cost efficiency and excellent dielectric strength. Meanwhile, Phenolic Cotton Cloth Laminates are increasingly favored in automotive, aerospace, marine, and heavy machinery industries, where mechanical reliability under vibration and frictional stress is critical.
With growing demand for lightweight, non-metallic, and eco-efficient materials, both laminates are finding renewed relevance. Manufacturers are improving resin formulations to enhance flame retardancy, moisture resistance, and machining precision. Global markets in Asia-Pacific and Europe are expanding, driven by industrial modernization and renewable energy equipment production.
Choosing the Right Phenolic Laminate
The selection between Phenolic Paper and Phenolic Cotton Cloth Laminates depends on the specific application requirements. For electrical insulation, low cost, and light-duty mechanical environments, Phenolic Paper Laminates are the preferred choice. For high-strength mechanical applications, continuous friction parts, or structural insulation under load, Phenolic Cotton Cloth Laminates offer superior performance and longer service life.
Conclusion
As industries move toward integrated design and performance-driven materials, the complementary roles of Phenolic Paper Laminates and Phenolic Cotton Cloth Laminates will continue to strengthen. Understanding their technical distinctions allows engineers to achieve the optimal balance of strength, insulation, and cost — ensuring reliable performance across a wide range of modern industrial applications.
